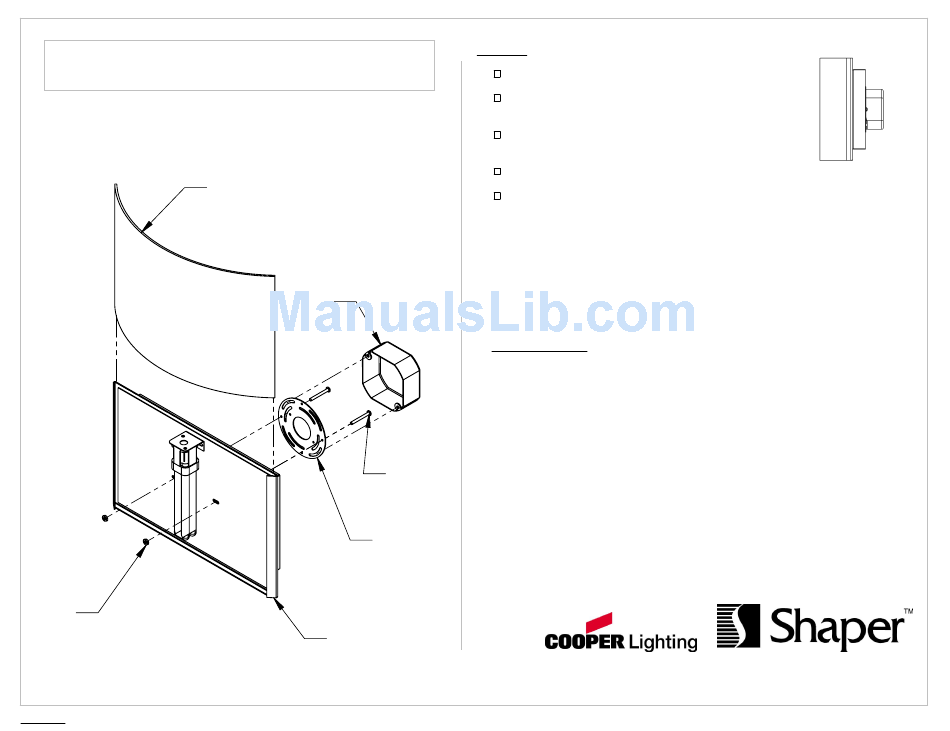

INSTALLATION INSTRUCTIONS
HEX
NUTS
11509440
DIFFUSER
"J" BOX
(by others)
PRESET
SCREWS
CIRCLE STRAP
FRAME
NOTICE:
For proper installation, have a qualified
electrician install this product.
Before installation of any luminaire onto an
electrical junction box, be sure to disconnect
power.
This luminaire must be wired and grounded in
accordance with the National Electrical Code,
local codes, and ordinances.
Wire supply connections must be made with U.L.
approved connectors.
Check that luminaire voltage and building
voltage are the same.
CAUTION:
BEFORE INSTALLING AND SERVICING OF LUMINAIRE, EXERCISE
SPECIAL CARE AND HANDLING OF PARTS. PLEASE USE GLOVES
AND PADDED MATERIAL WHILE HANDLING PARTS TO AVOID
SCRATCHING THE FINISH. CLEAN WITH SOFT CLOTHS AND WATER.
INSTRUCTIONS:
1.
Preset longer 8/32 screws to CIRCLE STRAP and attach strap to J-box
(by others) with 1" long 8-32 screws, making preset screws face out
from J-box.
2.
Attach ground wire to CIRCLE STRAP with green ground screw.
3.
Connect black & white wires from luminaire to black & white wiresfrom
supply circuit with U.L. approved wire connectors.
4.
Pull up on DIFFUSER to remove from frame.
5.
Place luminaire over preset mounting screws on CIRCLE STRAP and
attach with HEX NUTS.
6.
Install lamp to test luminaire before continuing, remembering to turn
power on for testing only, then turn power off.
7.
Make sure luminaire is level on wall.
8.
Replace DIFFUSER in frame.
1141 Marina Way South, Richmond, CA 94804 Phone: (510)234-2370 Fax:(510) 234-2371
11509440
B
11/08/2007
635-14
