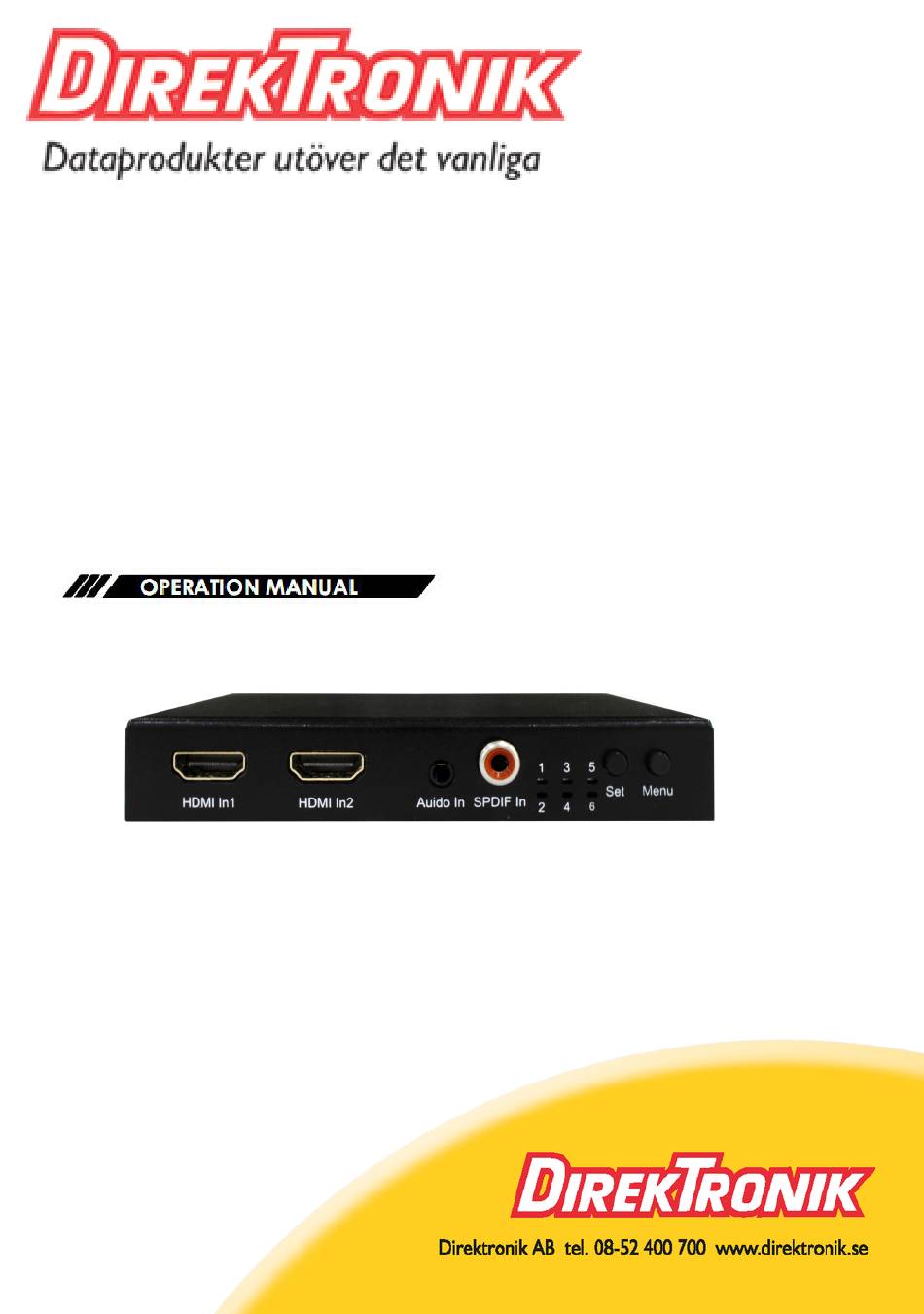

- Page 1 Best.nr: 20102370 1X2 Splitter/2x1 Switch 4K@60Hz YUV4:4:4 18Gbps Support HDCP2.2, HDR10...
-
Page 2: Dear Customer
HDMI 2.0 version (Support 4K@60Hz YUV4:4:4) Bandwidth upto 18Gbps HDCP2.2/ HDCP1.4 Support 3D, HDR10, Dolby vision and DTS Support 2xHDMI in, 2xHDMI out EDID management and Down Scaler functions Support Analog 3.5mm stereo out /SPDIF out audio extraction ... -
Page 3: Specifications
5 to 90%RH (No Condensation) Power supply Maximum power (work under 4K2K/60Hz) Max resolution 4k@60Hz YUV4:4:4 Function HDR10 and Dolby vision HDMI version HDMI 2.0 HDCP version HDCP2.2 / HDCP1.4 Control ways Switch button and EDID 1080P: input 8m max; output 8m max 4k@30Hz: input 8m max;output 8m max... -
Page 4: Panel Description

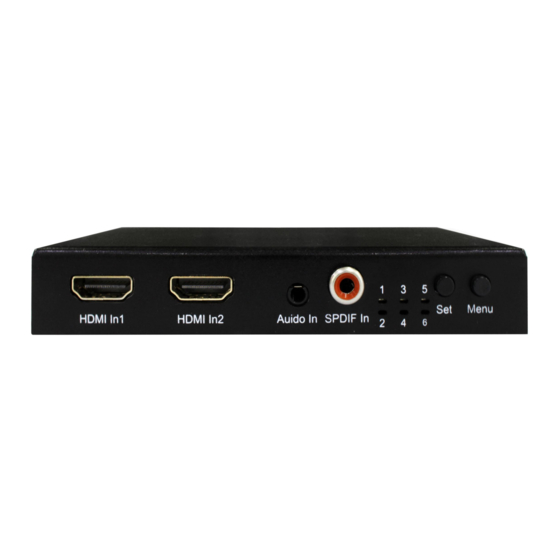

Operating Instruction Panel Description 1. Power and Firmware upgrade USB port 2. Power Indicator 3. Indicator light 4. SPDIF In 5. Audio out HDMI output 7. Audio in HDMI input SPDIF out 10. Menu button:Long press the key for 1.5 seconds or more to open the menu (Note：LED1~LED6 slow flash twice can release the key) or exit the menu (Note：LED1~LED6 fast flash twice can release the key);... - Page 5 Operating Instruction On the premise that the menu has been opened and the menu button is switched to the corresponding functional Settings,you press the button can complete the video input source switch,EDID mode Settings,Audio embed and audio unembed setting and Audio channel selection. List of functional indicator lights: ENC/ FUNC...
-
Page 6: Application Diagram
Operating Instruction Application Diagram EDID Setting 1. Copy EDID : When pressing the button to switch EDID to Copy mode, LED4 indicator light is always on, giving priority to copy the output1 EDID, it will copy the output2 EDID when output 1 is empty; When the output resolution of the signal source is set to be automatic, if the output1 is 4K60Hz TV and the output2 ports is 4K30Hz/1080p TV, the output1 channels is 4K60Hz, and the output2 channel is reduced to 1080P60Hz. - Page 7 Operating Instruction 3. Built-in EDID: When the button is switched to the built-in EDID mode, LED4 indicator lights will go out. Note: 1. Product has the function of Down Scaler 2. Built-in EDID and copy EDID have the function of Down Scaler, which can reduce the input 4K60Hz to 1080P60Hz output.
-
Page 8: Maintenance
Operating Instruction MAINTENANCE Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean this unit. PRODUCT SERVICE 1) Damage requiring service: The unit should be serviced by qualified service personnel if: (a) The DC power supply cord or AC adaptor has been damaged; (b) Objects or liquids have gotten into the unit;... - Page 9 Operating Instruction LIMITED WARRANTY LIMITS AND EXCLUSIONS 1) This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, maladjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, or...
-
Page 10: Warranty
Operating Instruction WARRANTY If your product does not work properly because of a defect in materials or workmanship, our Company (referred to as "the warrantor" ) will , for the length of the period indicated as below, (Parts(2)Year, Labor(90) Days) which starts with the date of original purchase ("Limited Warranty period"), at its option either(a) repair your product with new or refurbished parts, or (b) replace it with a new of a refurbished product.
