Information

Information
The system information pages display details on the current configuration and status
of the access point, including associated wireless stations and event log messages.

System

The system information page displays basic system configuration settings, as well
as the settings for each wireless interface. The displayed settings are for status
information only and are not configurable on this page.

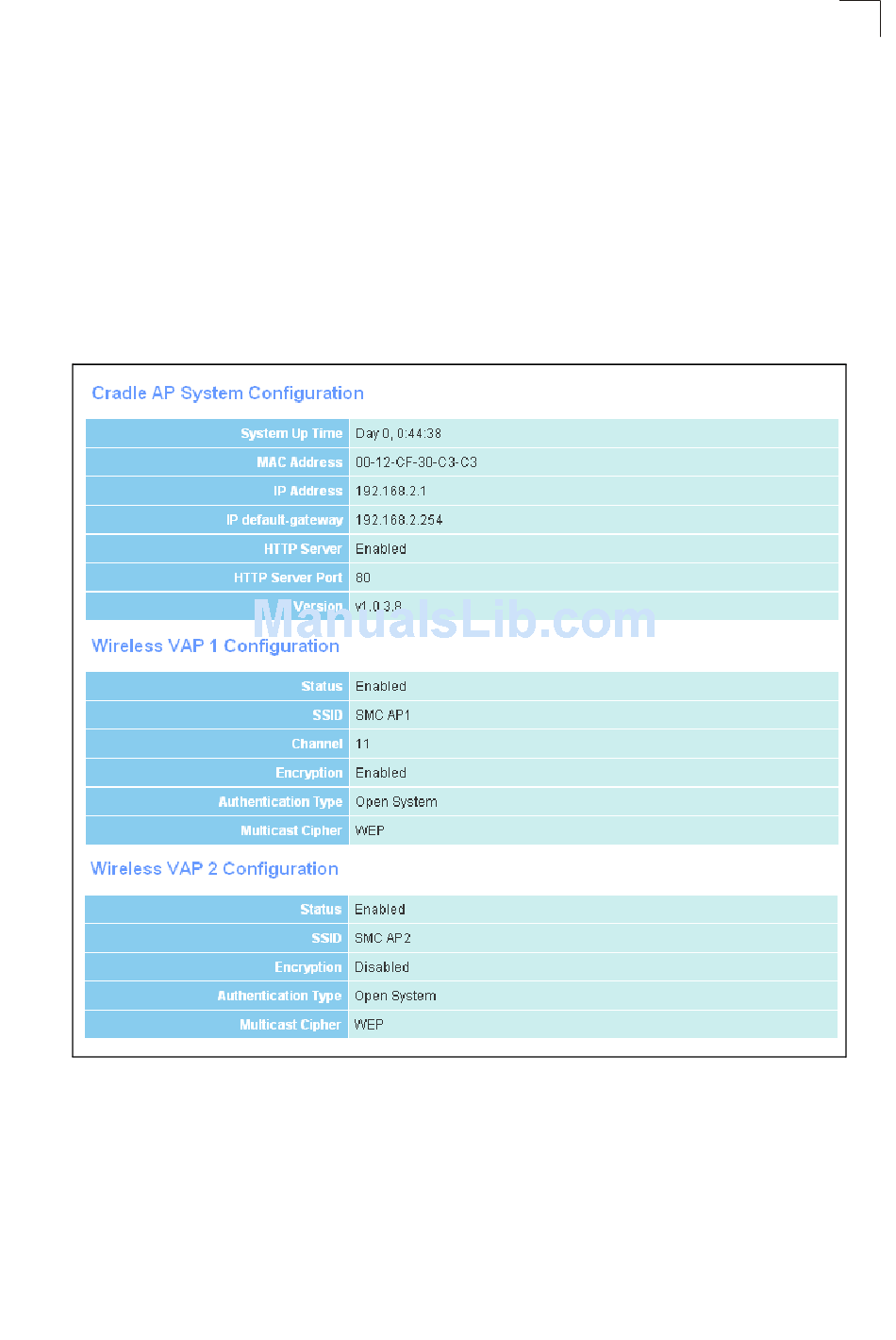

Figure 4-2. System Information
The displayed items on this page can be described as follows:
Cradle AP System Configuration – Displays basic system configuration settings:
• System Up Time – Length of time since the access point was powered on.
• MAC Address – The physical layer address for the access point's Ethernet port.
• IP Address – The IP address configured on the access point.
4-3
