■ Battery charging

• Fully charge the transceiver before
using it for the first time, or if it has not
been used for more than 2 months. The
charger automatically restarts charging
when the battery voltage drops.
• Disconnect the AC adapter from the outlet
when not charging the battery.
• Use the supplied USB cable.
• The battery icon on the function display
blinks while charging and lights when the
charging has been completed.
NOTE for charging with a USB cable:
• Use a 5 V/1 A output AC adapter.
• USB Power Delivery (USB PD) is not
supported.
• The charging time may differ, depending
on the current. When you use a lower
than 1 A output AC adapter or PC, it may
take longer to charge, or the battery may
not be charged.
• Before using the AC adapter, thoroughly
read its instructions.
NOTE: If "Q ER" is displayed, a charging
error has occurred.
• Disconnect the USB cable or AC
adapter, and then connect properly.
• Properly install the battery pack to the
transceiver.
• Properly insert the transceiver into the
charging cradle.
• Charge the battery pack within the
specified temperature range: 15°C ~
40°C.
BATTERY CHARGING

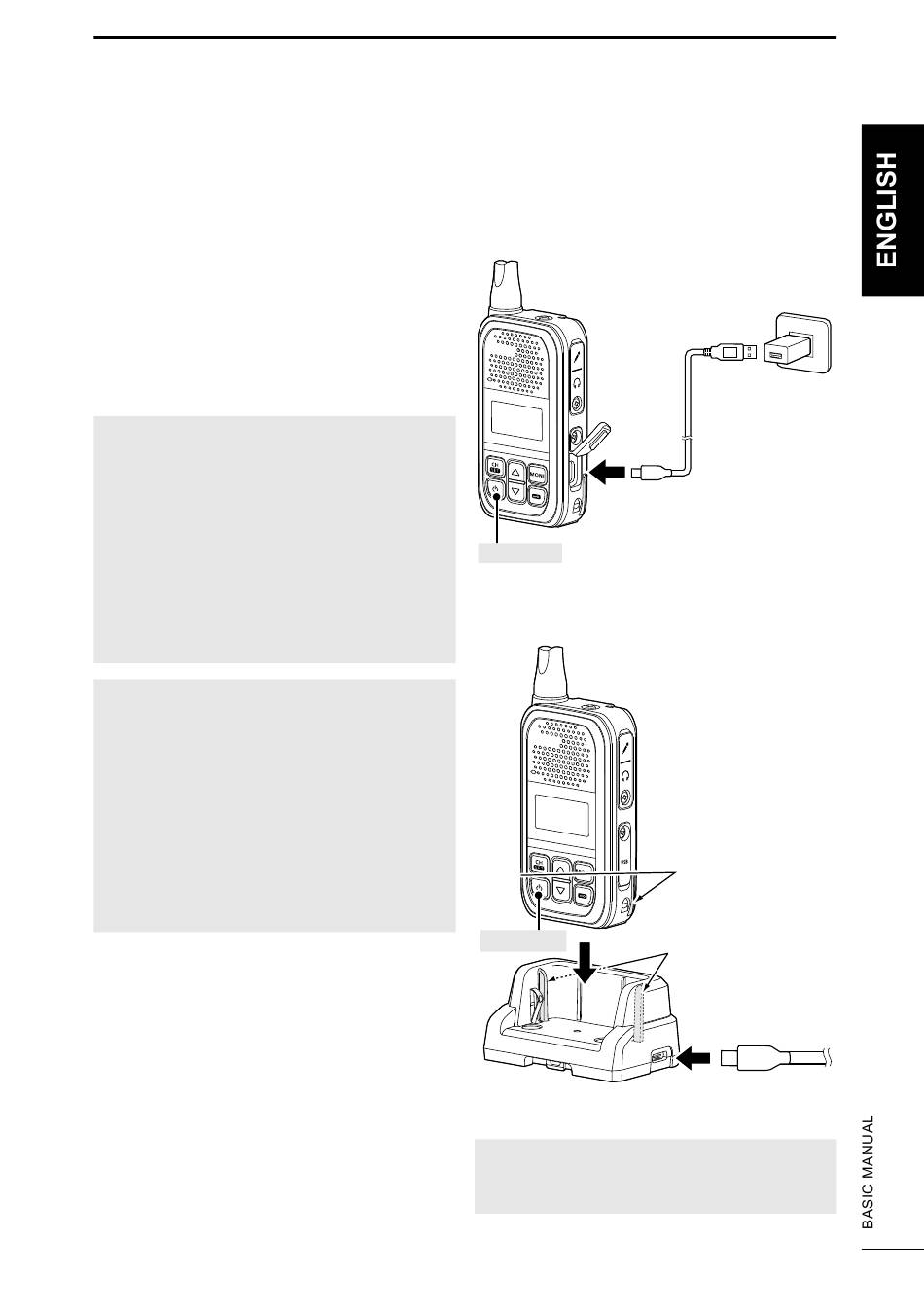

D Charging directly
Connect the supplied USB cable to the
[USB] connector.
Charging time:
Approximately 5.5 hours with 5 V/1 A input
To an AC adapter or a PC
(User supplied)
USB
Type-C
To the [USB] connector
Turn OFF
D Charging on the cradle
Turn OFF
Charging cradle
NOTE: Be sure the tabs on the
transceiver are correctly aligned with the
guide rails inside the cradle.
3
USB cable
Tabs
Guide rails
USB cable
USB Type-C
1 1
2 2
3 3
