Summary of Contents for Directed 403.CHRYSLER3

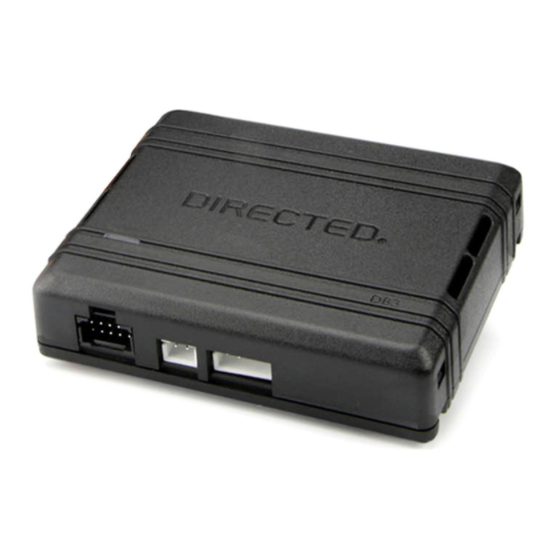

- Page 1 403.CHRYSLER3 v4.34 2021 Dodge/Ram Durango (Smart Key) THCHD3 Compatible (Sold Separately)
-
Page 2: Table Of Contents
Contents Introduction Vehicle function compatibilities Pre-installation and application warnings Installation Wiring diagram with T-Harness (THCHD3 Rev. 2 only) Wiring diagram Locating components in the vehicle Vehicle connections Module programming Key2GO SmartStart/XL202 installation notes Connecting the module LED diagnostics and troubleshooting Parking light error codes Soft reset Hard reset... -
Page 3: Introduction
Warning! This module can only be flashed and configured using DirectLink at www.directechs.com or using the Directechs Mobile application for smartphones. Refer to “Connecting the module” for more information. 403.CHRYSLER3 4.34 2021 Dodge/Ram Durango (Smart Key) ©2023 Directed. All rights... -
Page 4: Vehicle Function Compatibilities
Entry Monitoring Trunk/Hatch Pin Fuel level/EV battery level Brake Status (foot brake) Key2GO E-Brake Status Immobilizer Bypass-Data No Key Req'd Ignition Status 3x LOCK START (Start control using OEM Remote) 403.CHRYSLER3 4.34 2021 Dodge/Ram Durango (Smart Key) ©2023 Directed. All rights... -
Page 5: Pre-Installation And Application Warnings
[1] Hood pin: The installation of an aftermarket hood pin is only required on vehicles that are not equipped with a factory hood pin or if not supported in data. 403.CHRYSLER3 4.34 2021 Dodge/Ram Durango (Smart Key) ©2023 Directed. All rights... -
Page 6: Installation
CAN C High: White/Green or Lt.Green, pin 1 CAN Junction (white connector in green junction) CAN C Low: White/Blue or Yellow, pin 2 403.CHRYSLER3 4.34 2021 Dodge/Ram Durango (Smart Key) ©2023 Directed. All rights... -
Page 7: Wiring Diagram
Refer to the Vehicle connections section for wire and connector details related to the standard connections in the vehicle. (+) 12V: OBDII Red, pin 16 Diagnostic Connector Hood Pin Warning! Only 10A 403.CHRYSLER3 4.34 2021 Dodge/Ram Durango (Smart Key) ©2023 Directed. All rights... -
Page 8: Locating Components In The Vehicle
Dodge/Ram 3500 (Smart Key) 2018 BCM under driver dash, plug (B) Dodge Durango (Smart Key) 2018-2023 BCM above passenger kick, plug (B) Dodge Journey (Smart Key) 2018-2020 BCM above passenger kick, plug (B) 403.CHRYSLER3 4.34 2021 Dodge/Ram Durango (Smart Key) ©2023 Directed. All rights... -
Page 9: Vehicle Connections
No Connection H2/12 Blue/Red No Connection No Connection Input 10-pin black connector (H3) Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H3/1 Green No Connection No Connection 403.CHRYSLER3 4.34 2021 Dodge/Ram Durango (Smart Key) ©2023 Directed. All rights... - Page 10 (Data) TX H4/2 Black (-) Ground H4/3 Green (Data) RX H4/4 (+) 12 Volt RF 2-pin white connector (H5) Module Conn./Pin Color Description H5/1 No Connection H5/2 No Connection 403.CHRYSLER3 4.34 2021 Dodge/Ram Durango (Smart Key) ©2023 Directed. All rights...
-
Page 11: Module Programming
Click on Submit Key2GO Request. Once the configuration is completed, reconnect the module. The LED turns solid green for 3 seconds and then turns off. You have successfully completed the module programming sequence. 403.CHRYSLER3 4.34 2021 Dodge/Ram Durango (Smart Key) ©2023 Directed. All rights... -
Page 12: Key2Go
Any first-time user must re-register to gain access to Key2GO, and some additional information will be required to complete the registration process, such as your Directed account number and store name. Key2GO is compatible with XKLoader2 and the online web tool, as well as XKLoader3 and the Directechs Mobile application. -
Page 13: Smartstart/Xl202 Installation Notes
Refer to the Passive Keyless Entry (PKE) Installation Guide (N2102T) for detailed wiring information. RF System, PKE & SmartStart BT combination Refer to the Passive Keyless Entry (PKE) Installation Guide (N2102T) for detailed wiring information. 403.CHRYSLER3 4.34 2021 Dodge/Ram Durango (Smart Key) ©2023 Directed. All rights... -
Page 14: Connecting The Module
2. Do NOT connect the 2-pin harness (on SmartStart). Power and ground will be provided by the DB3 D2D connector. 3. Connect SmartStart to DB3 using the D2D port. XL202 installation Connect XL202 to DB3 using the D2D port. 403.CHRYSLER3 4.34 2021 Dodge/Ram Durango (Smart Key) ©2023 Directed. All rights... -
Page 15: Led Diagnostics And Troubleshooting
External Module Synchronization Description Troubleshooting OBDII feature not supported. The diagnostic data bus was not detected, therefore the SmartStart features will be limited. (Flashes red, red, then orange) x 10 403.CHRYSLER3 4.34 2021 Dodge/Ram Durango (Smart Key) ©2023 Directed. All rights... - Page 16 Lock Start is selected from the web in the flashing process. Flashes red x 7 Feature error. An RSR feature file mismatch was detected. Please contact Technical Support. Flashes red x 9 403.CHRYSLER3 4.34 2021 Dodge/Ram Durango (Smart Key) ©2023 Directed. All rights...
-
Page 17: Parking Light Error Codes
Wait 3 seconds until the LED turns ON solid orange, and wait 10 more seconds until the & LED starts to flash orange and red. Solid Flashes Release the programming button. The LED turns ON solid red. & Release Solid 403.CHRYSLER3 4.34 2021 Dodge/Ram Durango (Smart Key) ©2023 Directed. All rights... -
Page 18: Feature Programming
To exit feature programming, press and hold the programming button for 3 seconds or ensure there is no activity on the interface for 30 seconds. The LED will turn ON orange for 2 seconds to confirm the end of the programming sequence. 403.CHRYSLER3 4.34 2021 Dodge/Ram Durango (Smart Key) ©2023 Directed. All rights... -
Page 19: Feature And Option List
3. Enabled* status to detect if the disarm or rearm is required. If the vehicle is unlocked or is not equipped with factory alarm, the disarm/rearm will not be executed. 403.CHRYSLER3 4.34 2021 Dodge/Ram Durango (Smart Key) ©2023 Directed. All rights... -
Page 20: Limited One Year Consumer Warranty
This Warranty gives you specific legal rights and you may also have other rights which vary from state to state. VOXX DEI LLC, 2351 J. Lawson Blvd., Orlando, Florida 32824 403.CHRYSLER3 4.34 2021 Dodge/Ram Durango (Smart Key) ©2023 Directed. All rights... -
Page 21: Quick Reference Guide (Customer Copy)
With Get In and Go, you simply remote start the vehicle, unlock the doors, get in and go... All that's left to do is put the gear in drive and drive off. 403.CHRYSLER3 4.34 2021 Dodge/Ram Durango (Smart Key) ©2023 Directed. All rights... - Page 22 Now you can remote start, lock and unlock your car just by pushing a button on your mobile device; using the SmartStart App from Directed, the leader in vehicle security and remote start. The simple graphical interface gives you control over the following features of your installed remote start or security with remote start system: Š...
