Wall-Mounted Installation For Ax Series - Draytek Vigor2766 Series Quick Start Manual

3 . 4 W a l l - M o u
3 . 4 W a l l - M o u

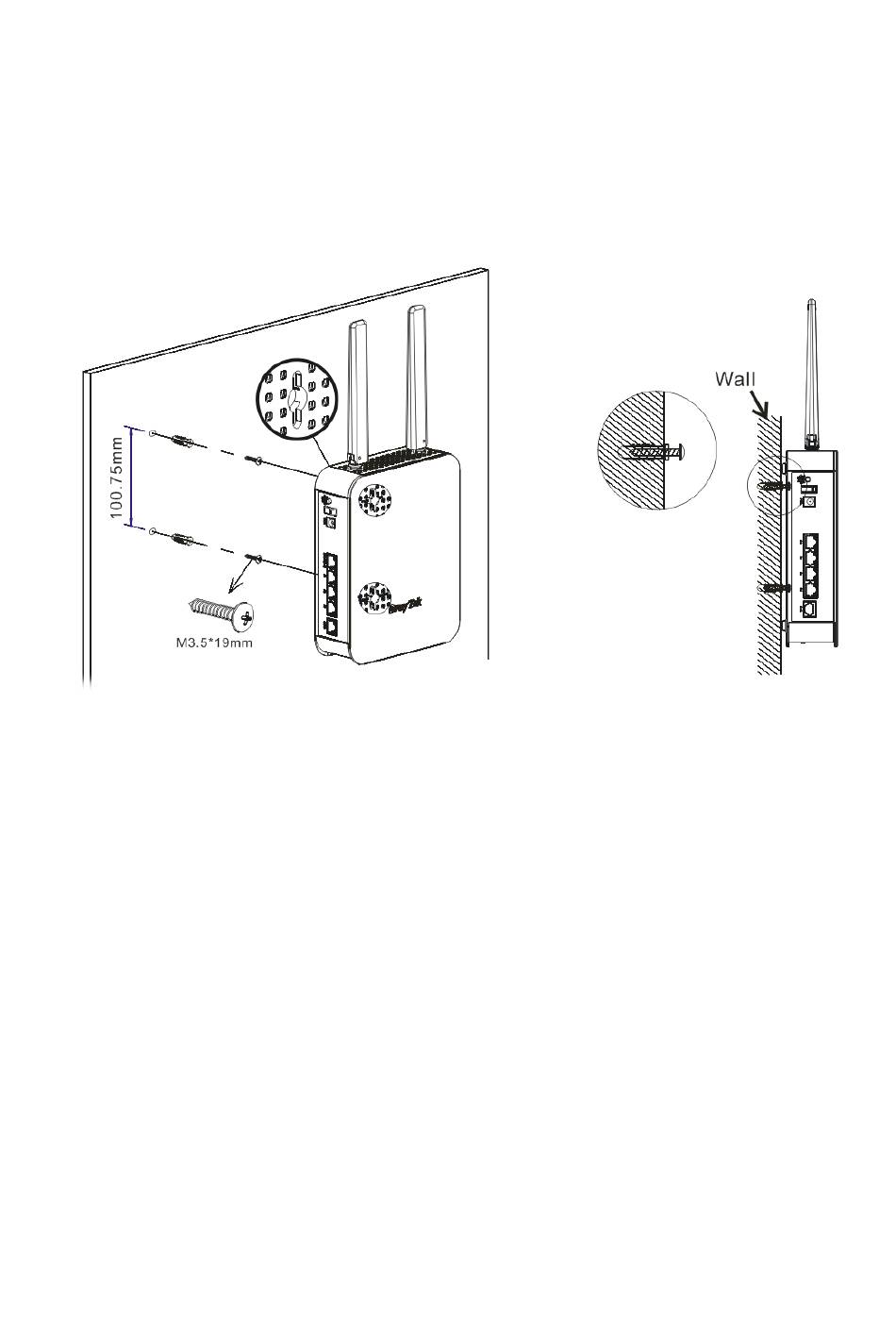

Vigor router has keyhole type mounting slots on the underside.
1. Drill two holes on the wall. The distance between the holes shall be
100.75mm. The recommended drill diameter shall be 6.5mm (1/4").
2. Fit screws into the wall using the appropriate type of screw plug.
3. Hang the Vigor router directly onto the screws.
n t e d I n s t a l l a
n t e d I n s t a l l a
t i o n f o r a x s e
t i o n f o r a x s e
11
r i e s
r i e s
