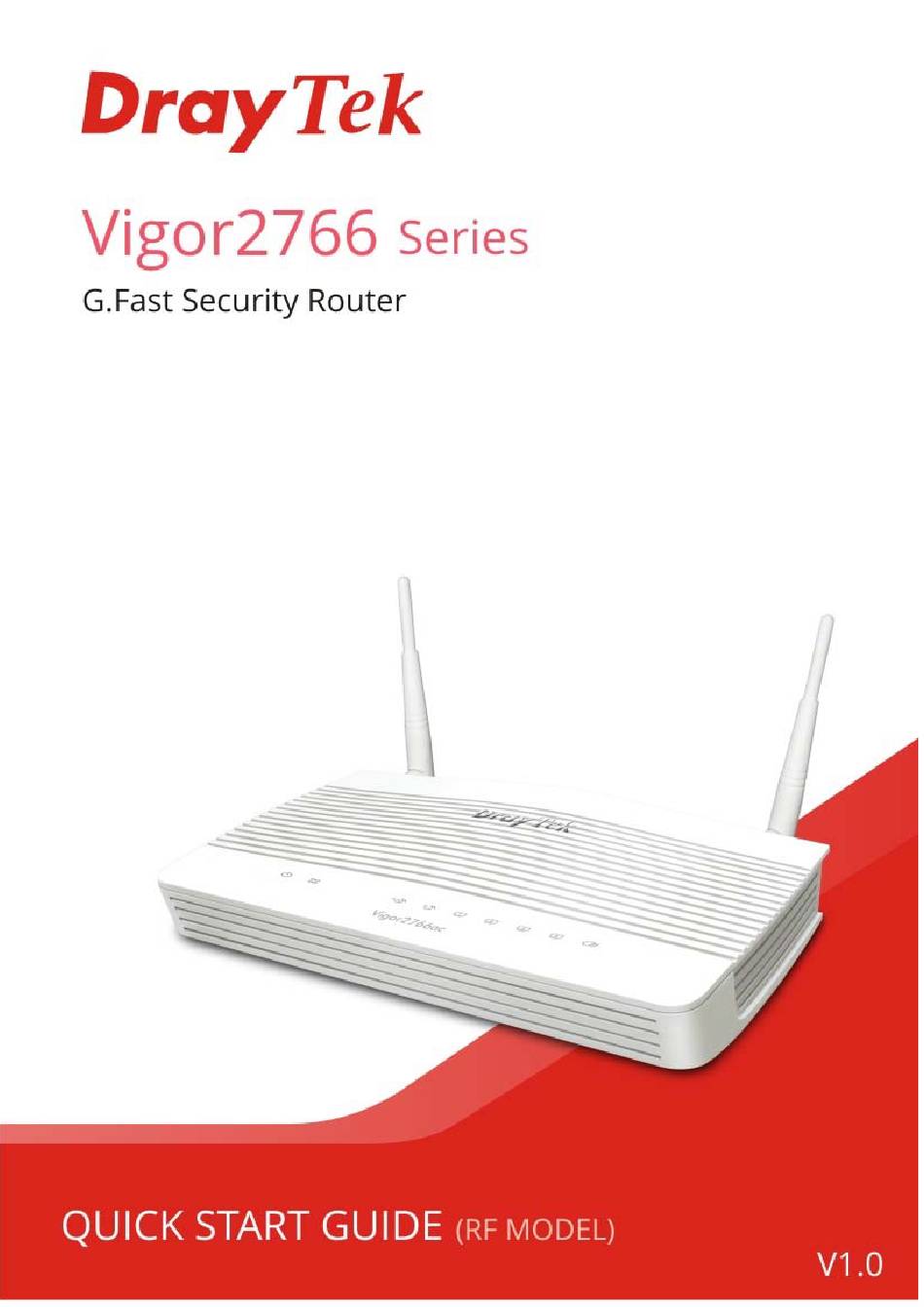

Draytek Vigor 2766 Series Quick Start Manual

G.fast security router
Hide thumbs
Table of Contents

Advertisement

Quick Links

i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vigor 2766 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Draytek Vigor 2766 Series

Summary of Contents for Draytek Vigor 2766 Series

  • Page 2 Vigor2766 Series G.Fast Security Router Quick Start Guide (For RF Model) Version: 1.0 Firmware Version: V4.3.1.2 (For future update, please visit DrayTek web site) Date: October 13, 2021...
  • Page 3 Intellectual Property Rights (IPR) Information © All rights reserved. This publication contains information that is protected Copyrights by copyright. No part may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright holders. The following trademarks are used in this document: Trademarks Microsoft is a registered trademark of Microsoft Corp.
  • Page 4 Declaration of Conformity Hereby, DrayTek Corporation declares that the radio equipment type Vigor2766 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.draytek.com.tw/ftp/Vigor2766/Document/CE/ Manufacturer: DrayTek Corp. Address: No.26, Fushing Rd., Hukou, Hsinchu Industrial Park, Hsinchu 303, Taiwan.
  • Page 5 88.6% 88.2% efficiency Efficiency at low load 73.6% 78.0% 81.3% 83.3% 83.7% 74.5% 80.5% 86.4% 85.4% No-load power 0.07W 0.07W 0.07W 0.07W 0.07W 0.07W 0.10W 0.07W 0.10W consumption External power supply (Power Adapter) information. For more update, please visit www.draytek.com.

  • Page 6: Table Of Contents

    1. Package Content ....................1 2. Panel Explanation....................2 2.1 Vigor2766ac ..........................2 2.2 Vigor2765Vac ..........................4 3. Hardware Installation ................... 6 3.1 Network Connection ........................6 3.2 Wall-Mounted Installation ......................7 4. Software Configuration ..................8 5. Customer Service ....................13 Be a Registered Owner ........................

  • Page 7: Package Content

    Take a look at the package content. If there is anything missed or damaged, please contact DrayTek or dealer immediately. Vigor router Quick Start Guide, Antenna RJ-45 Cable (Ethernet) RJ-11 to RJ-11 Cable (Annex A) RJ-11 to RJ-45 Cable (Annex B)

  • Page 8: Panel Explanation

    Status Explanation Blinking The router is powered on and running normally. The router is powered off. (Activity) The DSL link up, waiting for the Internet connection. Orange Slowly - The DSL connection is ready for training. Blinking (DSL) Quickly - The DSL connection is synchronizing. The router is ready to access to the Internet through DSL link.
  • Page 9 Interface Description WLAN WLAN On - Press the button an d release it within 2 seconds. ON/OFF/W PS When the wirele ss function is ready, the green LED will be WLAN Off - Press the button and release it within 2 seconds to turn off N function.

  • Page 10: Vigor2765Vac

    Status Explanation Blinkin The router is powered on and running normally. The router is powered off. (Activity) The DSL link up, waiting for the Internet connection. Orange Slowly - The DSL connection is ready for training. Blinking (DSL) Quickly - The DSL connection is synchronizing. The router is ready to access to the Internet through DSL link.
  • Page 11 Interface Description WLAN On - Press the button and release it w ithin 2 seconds. ON/OFF/WPS the w less function is ready, the green LED will be WLAN Off - Pre ss the button and release it within 2 seconds n off WLAN fu nction.

  • Page 12: Hardware Installation

    This section will guide you to install the router through hardware connection and configure the router’s settings through web browser. Before starting to configure the router, you have to connect your devices correctly. Conne ct the DS L interface to the land line jack with a DSL line cable.

  • Page 13: Wall-Mounted Installation

    Vigor router has keyhole type mounting slots on the underside. Drill two holes on the wall. The distance between t he holes shall be 168mm. Fit screws into the wall using the appropriate type of wall plug. With th e screws installed, the router can be slotted into place. Note The recommended drill diameter shall be 6.5mm (1/4”).

  • Page 14: Software Configuration

    To access Internet, please finish basic configuration after completing the hardware installation. The Quick Start Wizard is designed for you to easily set up your route r for Internet access. You can directly access the Quick Start Wizard via W Configurator.
  • Page 15 Now, the Main Screen will pop up. Click Wizards>>Quick Start Wizard. Note The home page will change slightly in accordance with the router you have. The first screen of Quick Start Wizard is entering login password. After typing the password, please click Next.
  • Page 16 On the next page as shown below, please select the WAN interface that you use. If DSL interface is used, please choose WAN1; if Ethernet interface is used, please choose WAN2; if 3G USB modem is used, please choose WAN3. Then click Next for next step.
  • Page 17 After finished the above settings, simply click Next. Please manually enter the Username/Password provided by your ISP. Then click Next for viewing summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet.
  • Page 18 oA / Static or Dynamic IP oA / Static or Dynamic IP Choose WAN1 as WAN Interface and click the Next button; you will get the following page. Please type in the IP address/mask/gateway information originally provided by your ISP. Then click Next for viewing summary of such connection. Click Finish.

  • Page 19: Customer Service

    If the router cannot work correctly after trying many efforts, please contact your dealer/DrayTek for further help right away. For any questions, please feel free to send e-mail to “support@draytek.com”. Web registration is preferred. You can register your Vigor router via https://myvigor.draytek.com.

This manual is also suitable for:

Vigor2766acVigor2766vacVigor2765 series
