Draytek Vigor2766 Series Quick Start Manual page 14

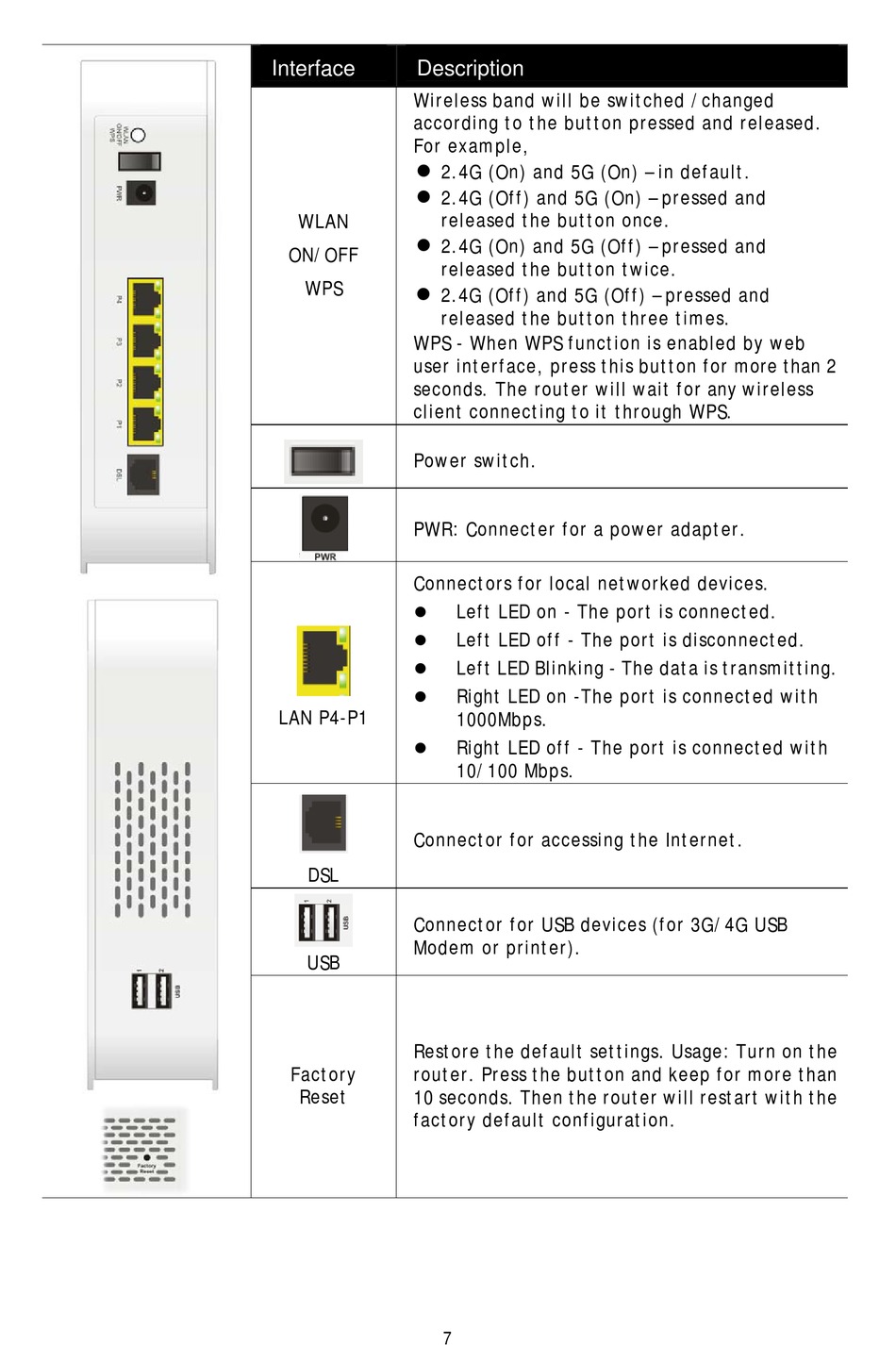

Interface Description
Wireless band will be switched /changed
according to the button pressed and released.
For example,


WLAN

ON/OFF
WPS

WPS - When WPS function is enabled by web
user interface, press this button for more than 2
seconds. The router will wait for any wireless
client connecting to it through WPS.
Power switch.
PWR: Connecter for a power adapter.
Connectors for local networked devices.




LAN P4-P1

Connector for accessing the Internet.
DSL
Connector for USB devices (for 3G/4G USB
Modem or printer).
USB
Restore the default settings. Usage: Turn on the
Factory router. Press the button and keep for more than
Reset 10 seconds. Then the router will restart with the
factory default configuration.
2.4G (On) and 5G (On) – in default.
2.4G (Off) and 5G (On) – pressed and
released the button once.
2.4G (On) and 5G (Off) – pressed and
released the button twice.
2.4G (Off) and 5G (Off) – pressed and
released the button three times.
Left LED on - The port is connected.
Left LED off - The port is disconnected.
Left LED Blinking - The data is transmitting.
Right LED on -The port is connected with
1000Mbps.
Right LED off - The port is connected with
10/100 Mbps.
