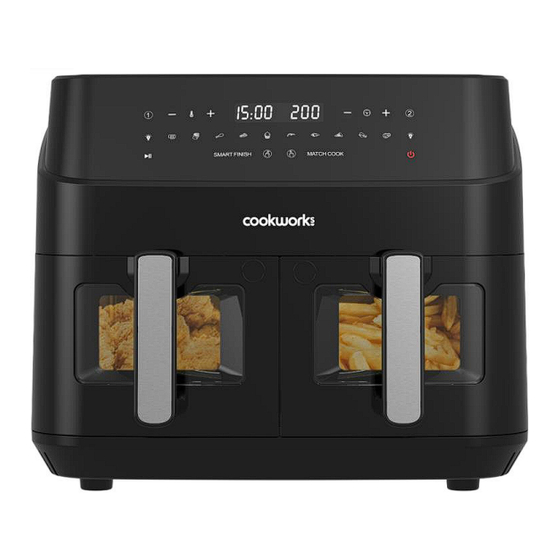

9L DIGITAL AIR FRYER
Model No.: KDF-5577DTW
Care & Instruction Manual
WARNING: This appliance is operating at high
temperatures. To ensure your safety and the safety
of others, please ensure you read these instructions
paying particular attention to the safety precautions
before using this product and retain for future
reference.
A replacement copy of this manual can be obtained from www.argos-support.co.uk
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cookworks KDF-5577DTW
Summary of Contents for Cookworks KDF-5577DTW
- Page 1 9L DIGITAL AIR FRYER Model No.: KDF-5577DTW Care & Instruction Manual WARNING: This appliance is operating at high temperatures. To ensure your safety and the safety of others, please ensure you read these instructions paying particular attention to the safety precautions before using this product and retain for future reference.
- Page 2 IMPORTANT SAFETY PRECAUTIONS You should only plug the appliance into a 220V- 240V AC, 50Hz earthed socket outlet. Connecting it to other power sources may damage the appliance and will invalidate the guarantee. Please read through this instruction manual before your first use and keep it for future reference.
- Page 3 burner, or heated oven. Children should be supervised to ensure that they do not play with the appliance. Keep the appliance and its cord out of reach of children aged less than 8 years. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and...
- Page 4 Do not store any materials, other than manufacturer's recommended accessories in this oven when not in use. The Crisper Racks get very hot during cooking. Please be careful when removing food that the rack does not fall out as it may cause burns. DO NOT operate the unit near to where aerosol products are being used.
- Page 5 damaged by liquid splashes and vapour” Do not place in front of plug sockets as there is a hot air vent at the rear of unit. Do not cover the air inlet (top of unit) or the air exhaust openings at the back while the appliance is operating.
-
Page 7: Table Of Contents
Contents Know your appliance ........................3 Digital Panel Function ........................4 Automatic Switch-Off ........................5 Before First Use ..........................5 Preparing for Use ..........................5 Using the Appliance ........................5 Viewing Lights and Windows ......................7 Match Cook ............................. 7 Smart Finish ............................ -
Page 8: Know Your Appliance
Know your appliance A. Crisper Rack 1 F. Handle 2 B. Frying Tray 1 G. Air Vent (air in) C. Handle 1 H. Control Panel D. Crisper Rack 2 I. Hot Air Vent (air out) E. Frying Tray 2 J. Mains lead. -
Page 9: Digital Panel Function
Digital Panel Function A. Side 1 L. Cake B. Temperature Plus/Minus M. Smart Finish C. Numeric display N. Match Cook D. Timer Plus/Minus O. Shrimp E. Side 2 P. Fish F. Left viewing light control Q. Pizza G. Start/Pause R. Vegetables H. -
Page 10: Automatic Switch-Off
Automatic Switch-Off This appliance is equipped with a timer, after it has counted down and ended it’s 1 minute cooling off period, 10 “BEEPS” will sound after which it will switch off automatically. To switch off the appliance manually, press “Power” to shut down the unit. Note: Pressing “Start/Pause”... - Page 11 2. How to set the cooking side (left / right), Timers & Cooking Temperatures Select the cooking tray side (left or right tray) by pressing button 1 (left side) or 2 (right side). Then press one of the 10 pre-set cooking modes which will input both the time and temperature automatically.
-
Page 12: Viewing Lights And Windows
Viewing Lights and Windows This unit is equiped with viewing lights to easily monitor the cooking progress of the tray contents through the viewing windows built into the front of both Frying Trays 1. Push either one of the viewing light buttons on the far left and right of the display panel labeled 1 &... -
Page 13: Dehydrate
Dehydrate Dehydrating food is a preservation method used to extend the shelf-life of your food by removing its water content. It is also one of the oldest and most widespread food preservation techniques. Dehydrate is one of the 10 preset cooking modes included on this air-fryer and can be selected and carried out by the method shown on the section “Using the Appliance”. -
Page 14: Preset Cooking Mode Table
Preset cooking mode table The following table shows the pre-set cooking modes built into this unit Program Logic Default User Selectable Range Menu Time Temperature Time Temperature (min) °C (min) °C Preheat 180°C 1-60 50-200°C Fries 200°C 1-60 50-200°C Drumsticks 200°C 1-60 50-200°C... -
Page 15: Operation Tips
Operation Tips 1. Some ingredients require shaking halfway through the cooking time. To shake the ingredients, pull the frying tray out of the appliance by the handle and shake it. Then slide the frying tray back into the Air Fryer. 2. -
Page 16: Cooking Guide
COOKING GUIDE Note: these settings are a guide. As ingredients differ in size shape and brand, you may need to adjust cooking times and temperatures. FOOD AMOUNT TIME TEMPERATURE Check food is cooked through with no raw meat and is piping CHICKEN hot. - Page 17 FOOD AMOUNT TIME TEMPERATURE Pork Chops, boneless 180g ,1’’ thick 10 min 180°C Rack of lamb 650g – 900g 22 min 190°C Tenderloins 450g 15 min 170°C FISH AND SEAFOOD Check food is cooked through with no raw meat and is piping hot. Calamari Rings 140g 4 min...
-
Page 18: Cleaning
FOOD AMOUNT TIME TEMPERATURE Parsnips ½’’ cubes 15 min 190°C Peppers 1’’ chunks 15 min 200°C Potatoes 680g, small baby 15 min 200°C Potatoes French Fries 25 min 200°C 1.5’’ cubes Roast Potatoes 30 min 200°C (Pre-Boiled) Jacket Potato Whole 40 min 200°C Squash... -
Page 19: Troubleshooting
Troubleshooting Problem Possible cause Solution The appliance is not Put the mains plug in an plugged into the mains. earthed wall socket. The air fryer does not work Follow the operational guide You have not set the "Using the Appliance" section in timer. - Page 20 Fried snacks are not You use a type of snack Use oven snacks or lightly brush crispy when they come meant to be prepared in some oil onto the snacks for a out of the air fryer a traditional deep fryer. crispier result.
- Page 21 Add slightly more oil for a crispier result. Technical Specification Cookworks 9L Digital Air Fryer Model KDF-5577DTW Cat No 1486630 Rated Voltage & Frequency 220 – 240V AC 50-60Hz...
-
Page 22: Disposal
Disposal Recycling electrical products: You should now recycle your waste electrical goods and in doing so help the environment. This symbol means an electrical product should not be disposed of with normal household waste. Please ensure it is taken to a suitable facility for disposal. Visit www.recycle-more.co.uk, click on "bank locator “and enter your postcode to find your nearest recycling site.
