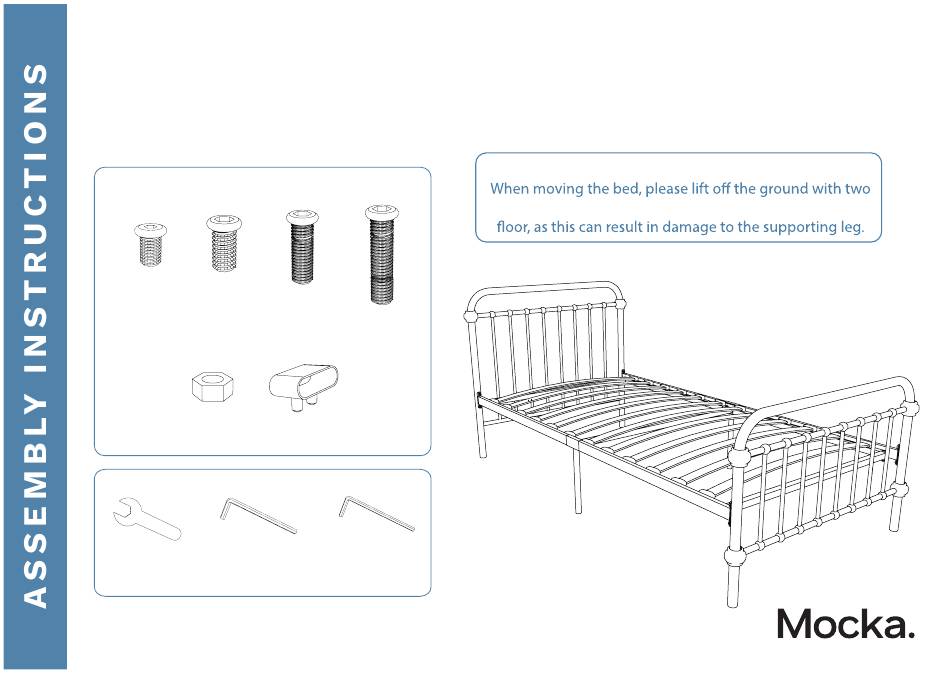

Sonata
Bed - Single
Thank you for your purchase.
Please follow the instructions below for correct assembly
B
A
Socket Screw
Socket Screw
12mm x4
20mm x8
E
Nut 6mm
x8
Y
X
Allen key 5mm
Wrench 6mm
x1
x1
Hardware Supplied
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
C
D
Socket Screw
30mm x4
Socket Screw
52mm x4
F
Cap
x24
Z
Allen key 4mm
x1
* IMPORTANT NOTICE *
people. DO NOT drag, push or pull the bed across the
Advertisement
Table of Contents
Related Manuals for Mocka Sonata
Summary of Contents for Mocka Sonata
- Page 1 DO NOT drag, push or pull the bed across the Socket Screw Socket Screw Socket Screw 12mm x4 30mm x4 20mm x8 Socket Screw 52mm x4 Nut 6mm Allen key 4mm Allen key 5mm Wrench 6mm Hardware Supplied mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
- Page 2 [3] & [4] with 4x 52mm socket screws (D) and 4x 6mm nuts (E). screws (A) and tighten with the 4mm allen key (Z). Tighten with the 4mm allen key (Z) and wrench (X). mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
- Page 3 Fix the outer support bars [6] to the bed frame using the 4x 30mm socket screws (B) with the 5mm allen key (Y). screws (C) and 4x Nuts (E) with the 4mm Allen Key (Z) and wrench (X). mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
- Page 4 Insert caps (F) onto the ends of 12x bed planks, then using the cap ends Lift the furniture into the desired location, do not drag. You’re done, enjoy! insert the planks into bed frame. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
