Mocka Sonata Bed Assembly Instructions

Single

Hide thumbs Also See for Sonata Bed:

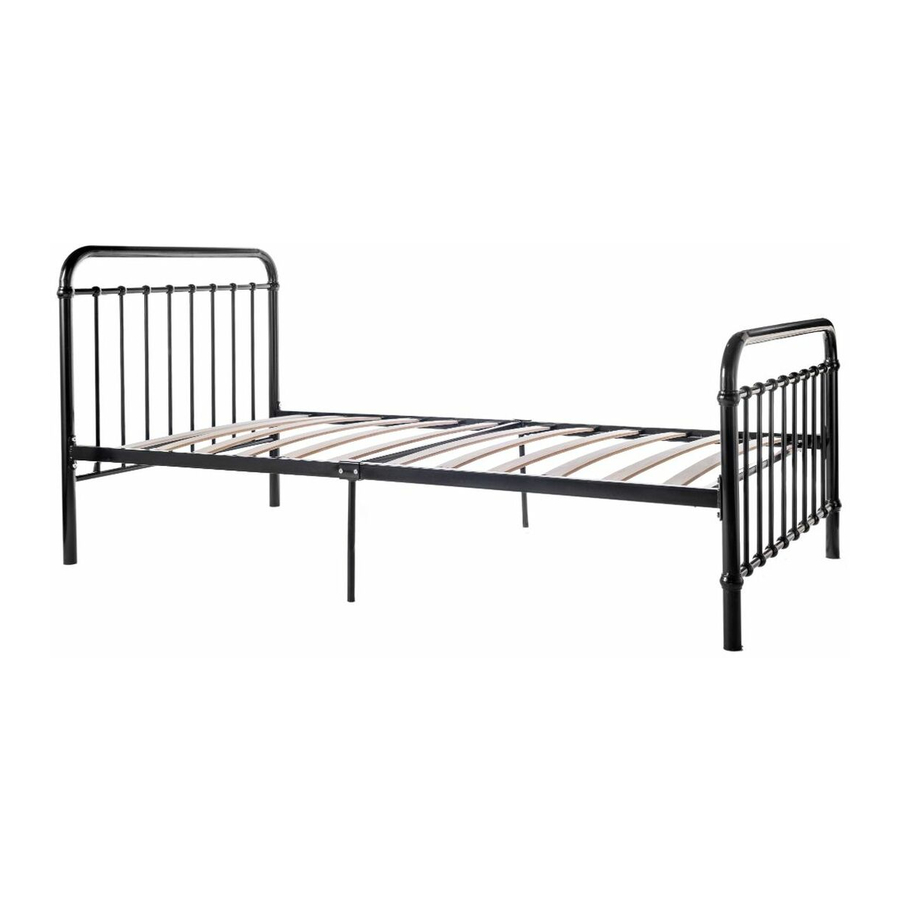

Sonata Bed - Single

Thank you for your purchase.

Please follow the instructions below for correct assembly.

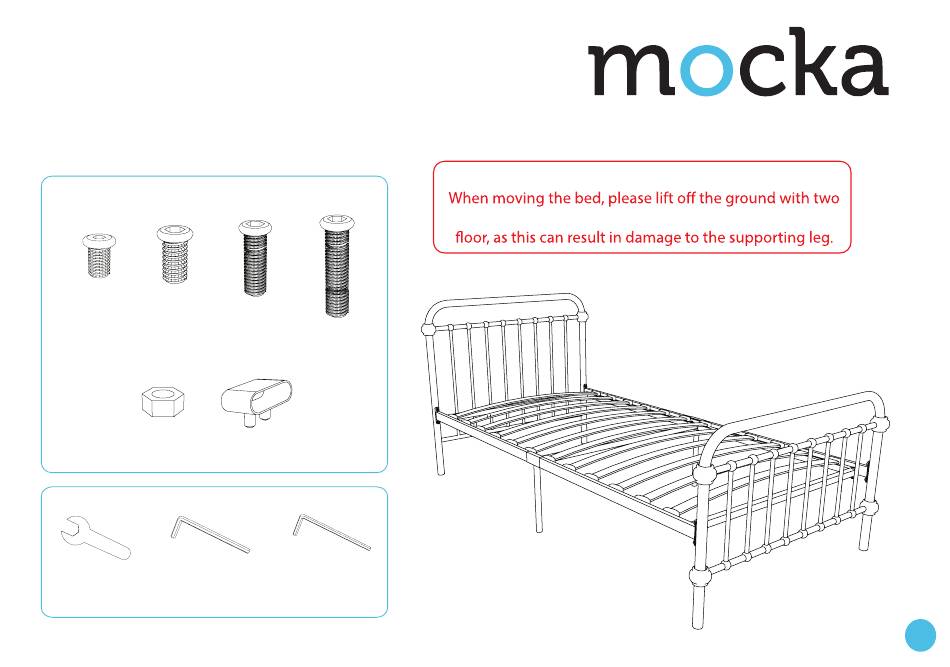

Socket Screw

12mm x4

20mm x8

Nut 6mm

Allen key 5mm

Wrench 6mm

Hardware Supplied

mocka.co.nz | mocka.com.au

Socket Screw

30mm x4

Socket Screw

52mm x4

Cap

x24

Allen key 4mm

I *

people. DO NOT drag, push or pull the bed across the

C I

* E

Table of Contents

Do you have a question about the Sonata Bed and is the answer not in the manual?

Page 1 Sonata Bed - Single Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. people. DO NOT drag, push or pull the bed across the Socket Screw Socket Screw Socket Screw 12mm x4 30mm x4...
Page 2 Sonata Bed - Single Assembly Instructions Assemble each side by attaching the support leg to its two corresponding side Attach both sides of the bed to the centre bar with 4x 12mm socket screws (A) panels with 2x 52mm socket screws (D) and 2x 6mm nuts (E). Tighten with and tighten with the 4mm allen key (Z).
Page 3 Sonata Bed - Single Assembly Instructions Attach the bed-ends using the 20mm socket screws (B) with the 5mm Fix the outer support bars to the bed frame using the 4x 30mm socket allen key (Y). screws (C) and 4x Nuts (E) with the 4mm Allen Key (Z) and wrench (X).
Page 4 Sonata Bed - Single Assembly Instructions Insert caps (F) onto the ends of 12x bed planks, then using the cap ends Lift the furniture into the desired location, do not drag. You’re done, enjoy! insert the planks into bed frame.
