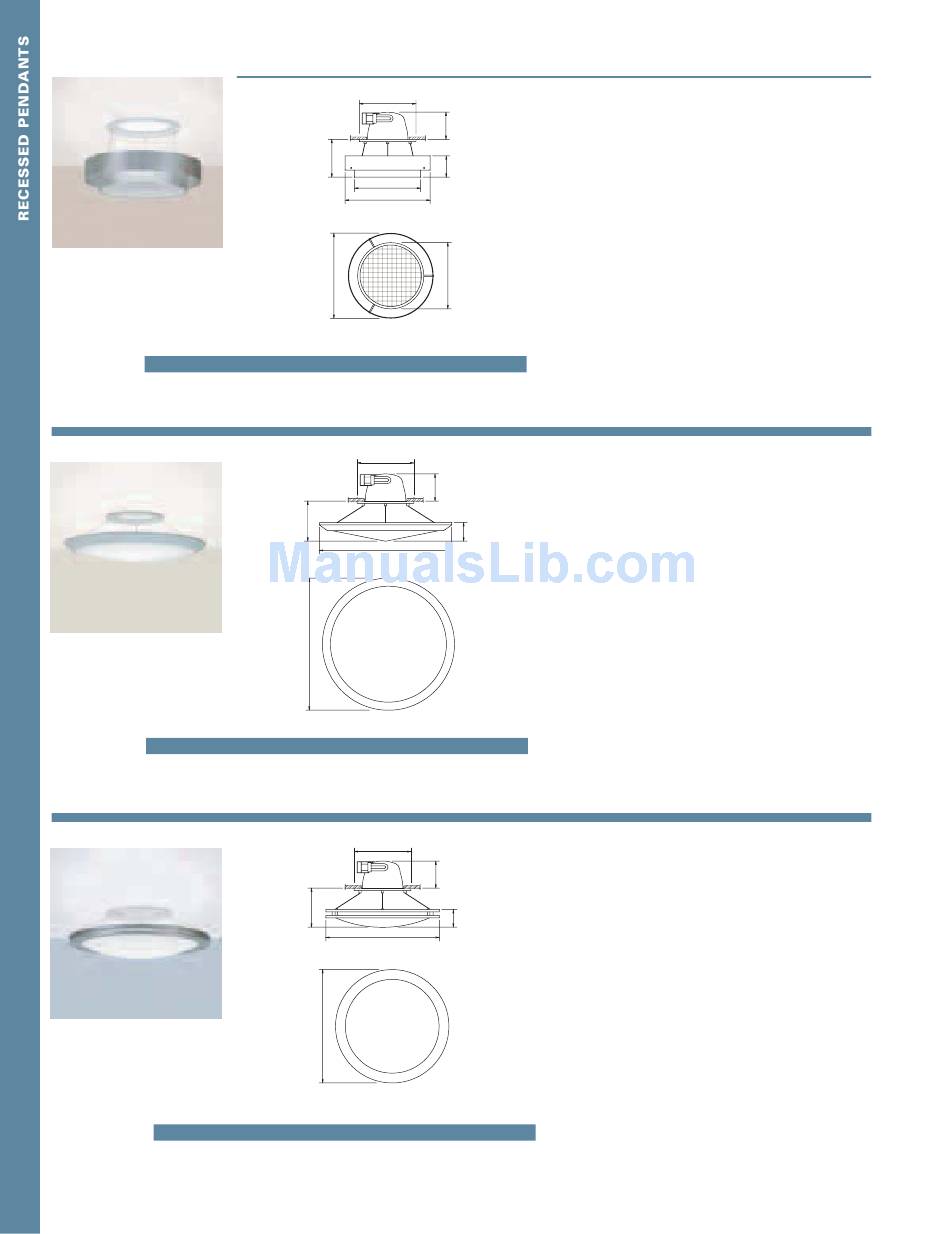

SHAPER
™
420-RP SERIES
420-RP features an 18" pendant
designed for low ceiling applications
and offers performance optics by
Portfolio.
Sample Number: 420-RP-CFL/2/32-347V-SAL
Series
420-RP =18" Pendant
445-RP SERIES
445-RP features a 28" pendant
designed for low ceiling applications
and offers performance optics by
Portfolio.
Sample Number: 445-RP-CFL/2/32-347V-PC
Series
445-RP =28" Pendant
494-RP SERIES
494-RP features a 24" pendant
designed for low ceiling applications
and offers performance optics by
Portfolio.
Sample Number: 494-RP-CFL/2/32-347V-PC
Series
494-RP =24" Pendant
956
COOPER LIGHTING
12" ø
8"
14" ø
18" ø
18" ø
Lamp
Voltage
Finish
CFL/2/26
120V
NA (standard),
CFL/2/32
277V
CC, MW, SAL
CFL/2/42
347V
12" ø
5-3/4"
8-1/2"
28" ø
28" ø
Lamp
Voltage
Finish
CFL/2 /26
120V
MW (standard),
CFL/2 /32
277V
CC, PB, PC, PCP,
CFL/2 /42
347V
SB, SC, SCL, SCP,
SN, SNL
12" ø
8-1/4"
24" ø
24" ø
Lamp
Voltage
Finish
CFL/2/26
120V
MW (standard),
CFL/2/32
277V
CC, PB, PC, PCP,
CFL/2/42
347V
SB,SC, SCL, SCP,
SN, SNL
MATERIAL
Painted or natural
aluminum supplied with
5-3/4"
an aluminum cube cell
louver, painted white.
4-1/2"
LAMP/SOCKET
Two (2) 26W, 32W
(GX24q-3) or 42W
(GX24q-4) 4-pin triple
CFL lamps. Universal
4-pin CFL socket injection
molded plastic with guide
post inserts reject 2-pin
lamp to ensure proper
14" ø
lamping. Lamps
furnished by others.
FINISH AND OPTIONS
See page 1020 for finish
details and options.
Options
DL
EM
MATERIAL
Painted or plated cold
rolled steel trim ring with
a matte white acrylic
bowl.
4"
LAMP/SOCKET
Two (2) 26W, 32W
(GX24q-3) or 42W
(GX24q-4) 4-pin triple CFL
lamps. Universal 4-pin
CFL socket injection
molded plastic with guide
post inserts reject 2-pin
lamp to ensure proper
lamping. Lamps
furnished by others.
FINISH AND OPTIONS
See page 1020 for finish
details and options.
Options
DL
EM
FB
MATERIAL
Painted or plated cold
rolled steel trim ring with
5-3/4"
a matte white acrylic
bowl.
LAMP/SOCKET
3-3/4"
Two (2) 26W, 32W
(GX24q-3) or 42W
(GX24q-4) 4-pin triple CFL
lamps. Universal 4-pin
CFL socket injection
molded plastic with guide
post inserts reject 2-pin
lamp to ensure proper
lamping. Lamps
furnished by others.
FINISH AND OPTIONS
See page 1020 for finish
details and options.
Options
DL
EM
FB
BALLAST/EMERGENCY BATTERY PACK
One (1) integral multi-voltage (120V/277V)
electronic CFL (347V Canada) ballast for a 26W,
32W or 42W CFL lamp. Optional - One (1) integral
emergency battery pack option (EM) is shipped
pre-wired. Sealed Ni-Cad battery powers CFL
lamps for 90 minutes of emergency illumination.
Integral test switch/ indicator light is located
inside the reflector, out of view but easily
accessible for testing.
INSTALLATION
Recessed mounting requires 9" (23cm) diameter
by 6 3/8" (16cm) deep opening in ceiling.
Accommodates ceilings up to 2" (5 cm) thick. No
Fuss Bar Hangers (tm) and T-Bar provided with
centering mechanism that allows consistent
centering of luminaire. Thermal protection
deactivates unit if improper lamp type or
wattage is used or if insulation is placed too
close to the housing. Decorative trim/bowl
assembly is securely suspended from the
mounting ring by three stainless steel cables
(provided). No cutting or adjustment of cables is
required to achieve standard overall height and
level mounting.
BALLAST/EMERGENCY BATTERY PACK
One (1) integral multi-voltage (120V/277V)
electronic CFL (347V Canada) ballast for 26W,
32W or 42W CFL lamps. One (1) integral
emergency battery pack option (EM) is shipped
pre-wired. Sealed Ni-Cad battery powers CFL
lamps for 90 minutes of emergency
illumination. Integral test switch/indicator light
is located inside the reflector, out of view but
easily accessible for testing.
INSTALLATION
Recessed mounting requires 9" (23cm) diameter
by 6 3/8" (16cm) deep opening in ceiling.
Accommodates ceilings up to 2" (5 cm) thick. No
Fuss Bar Hangers (tm) and T-Bar provided with
centering mechanism that allows consistent
centering of luminaire. Thermal protection
deactivates unit if improper lamp type or
wattage is used or if insulation is placed too
close to the housing. Decorative trim/bowl
assembly is securely suspended from the
mounting ring by three stainless steel cables
(provided). No measuring, cutting or adjustment
of cables is required to achieve standard overall
height and level mounting.
BALLAST/EMERGENCY BATTERY PACK
One (1) integral multi-voltage (120V/277V)
electronic CFL (347V Canada) ballast for 26W,
32W or 42W CFL lamps. One (1) integral
emergency battery pack option (EM) is shipped
pre-wired. Sealed Ni-Cad battery powers CFL
lamps for 90 minutes of emergency illumination.
Integral test switch/indicator light is located
inside the reflector, out of view but easily
accessible for testing.
INSTALLATION
Recessed mounting requires 9" (23cm) diameter
by 6 3/8" (16cm) deep opening in ceiling.
Accommodates ceilings up to 2" (5 cm) thick. No
Fuss Bar Hangers (tm) and T-Bar provided with
centering mechanism that allows consistent
centering of luminaire. Thermal protection
deactivates unit if improper lamp type or
wattage is used or if insulation is placed too
close to the housing. Decorative trim/bowl
assembly is securely suspended from the
mounting ring by three stainless steel cables
(provided). No measuring, cutting or adjustment
of cables is required to achieve standard overall
height and level mounting.
