Cooper Lighting Shaper 494-RP SERIES Specification

DESCRIPTION

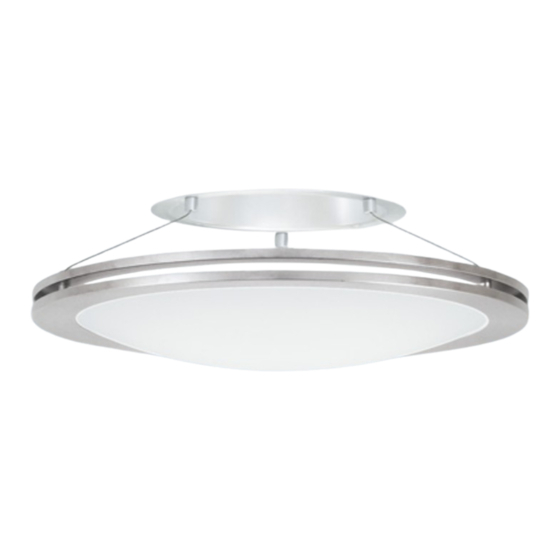

494-RP features a 24" pendant designed for low ceiling applications and
offers performance optics by Portfolio.
SPECIFICATION FEATURES
Material
Painted or plated cold rolled steel
trim ring with a matte white acrylic
bowl. Solid brass or aluminum
cable finials. Solid aluminum
mounting ring and hardware with
cable.
Downlight: One piece precision die
cast aluminum 1-1/2" deep collar
accommodates varying dimen-
sions of ceiling materials. Precisely
formed one piece, clear Alzak®,
non-imaging optical reflector
ensures 55° cut-off to lamp and
lamp image.
Finish
Standard: Matte White (MW)
Premium: Natural Aluminum (NA)
[Sustainable Design], Lacquered
Satin Aluminum (SAL), Satin
Chrome (SC), Lacquered Satin
Chrome (SCL), Polished Chrome
(PC), Satin Nickel (SN), Lacquered
Satin Nickel (SNL), Polished Nickel
(PN), Oxidized Brass (OBRS), Satin
Brass (SB), Polished Brass (PB),
Satin Copper (SCP), Polished
Copper (PCP), Oxidized Copper
(OCP), Gun Metal (GNM) or
Custom Color (CC). Specify finish
for the mounting ring and
hardware.
ORDERING INFORMATION
Sample Number: 494-RP-CFL/2-277V-PCP
Series Voltage
494-RP 24" Pendant = 120V
277V
347V
Lamp
CFL/2 (26/32/42W-Triple)
Optics
Refer to www.shaperlighting.com
for complete photometrics.
Ballast/Integral Emergency
Battery Pack
One (1) integral, multi-voltage
(120V/277V), electronic CFL (347V
Canada) ballast for a 26W, 32W or
42W CFL lamps. Provides flicker
free and noise free operation and
starting.
Lamp/Socket
Two (2) 26W, 32W (GX24q-3) or
42W (GX24q-4) 4-pin triple CFL
lamps. Universal 4-pin CFL socket
injection molded plastic with
fatigue free stainless steel lamp
spring ensures positive lamp
retention. Lamps furnished by
others.
Installation
Decorative trim/finial/bowl
assembly is securely suspended
from the mounting ring by three
stainless steel cables (provided).
Listed for eight #12AWG (four in,
four out) 90°C conductors feed
through branch wiring. One 1/2"
and two 3/4" pry outs. Positioned
to allow straight conduit runs.
Access to junction box by
removing reflector. Accepts 1/2"
EMT, C Channel, T-bar fasteners,
Pendant Trim Finish
Standard
MW Matte White =
Premium
CC Custom Color =
PB Polished Brass =
PC Polished Chrome =
PCP Polished Copper =
SB Satin Brass =
SC Satin Chrome =
SCL Lacquered Satin Chrome =
SCP Satin Copper =
SN Satin Nickel =
SNL Lacquered Satin Nickel =
OCP = Oxidized Copper
GNM= Gun Metal
Specifications and Dimensions subject to change without notice.
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
Installation (Con't.)
and bar hangers. Adjusts 5"
vertically from above or below
ceiling. Positive reflector
mounting, without tools, pulls trim
tight to ceiling. No measuring,
cutting or adjustment of cables is
required to achieve standard
overall height and level mounting.
Contractor to provide appropriate
structural support for the fixture's
weight.
Options
Hand-Painted Faux Alabaster Bowl
(FB), Hand Painted Faux Linen
Bowl(LNB), Refer to the downlight
spec sheet for options, MH
Lamping - Contact factory.
Labels
U.L. and C.U.L. listed. Downlight is
standard damp label.
Modifications
Contact the factory regarding scale
options, unique finishes,
mounting, additional materials/
colors, or decorative detailing.
Ring/Hardware Finish Options
DL Damp Location =
Standard
MW Matte White =
EM Emergency =
Battery Pack
Premium
CC Custom Color =
=
FB
PB Polished Brass =
PC Polished Chrome =
LNB Hand Painted =
PCP Polished Copper =
SB Satin Brass =
SC Satin Chrome =
SCL Lacquered Satin Chrome =
SCP Satin Copper =
SN Satin Nickel =
SNL Lacquered Satin Nickel =
OCP = Oxidized Copper
GNM= Gun Metal
494-RP SERIES
QUICK SHIP (QS)
Shaper's Quick Ship program
features over thirty-four fixtures
with finish options such as Satin
Chrome, Natural Aluminum and
Satin Brass and a wide variety of
lamp selections. All products ship
in five days from receipt of order.
Hand Painted Faux
Alabaster Bowl
Faux Line Bowl
06/25/2008 9:13:54 AM
shaperlighting.com
Type
Date
Recessed Pendant
Luminaire
ADS050005
