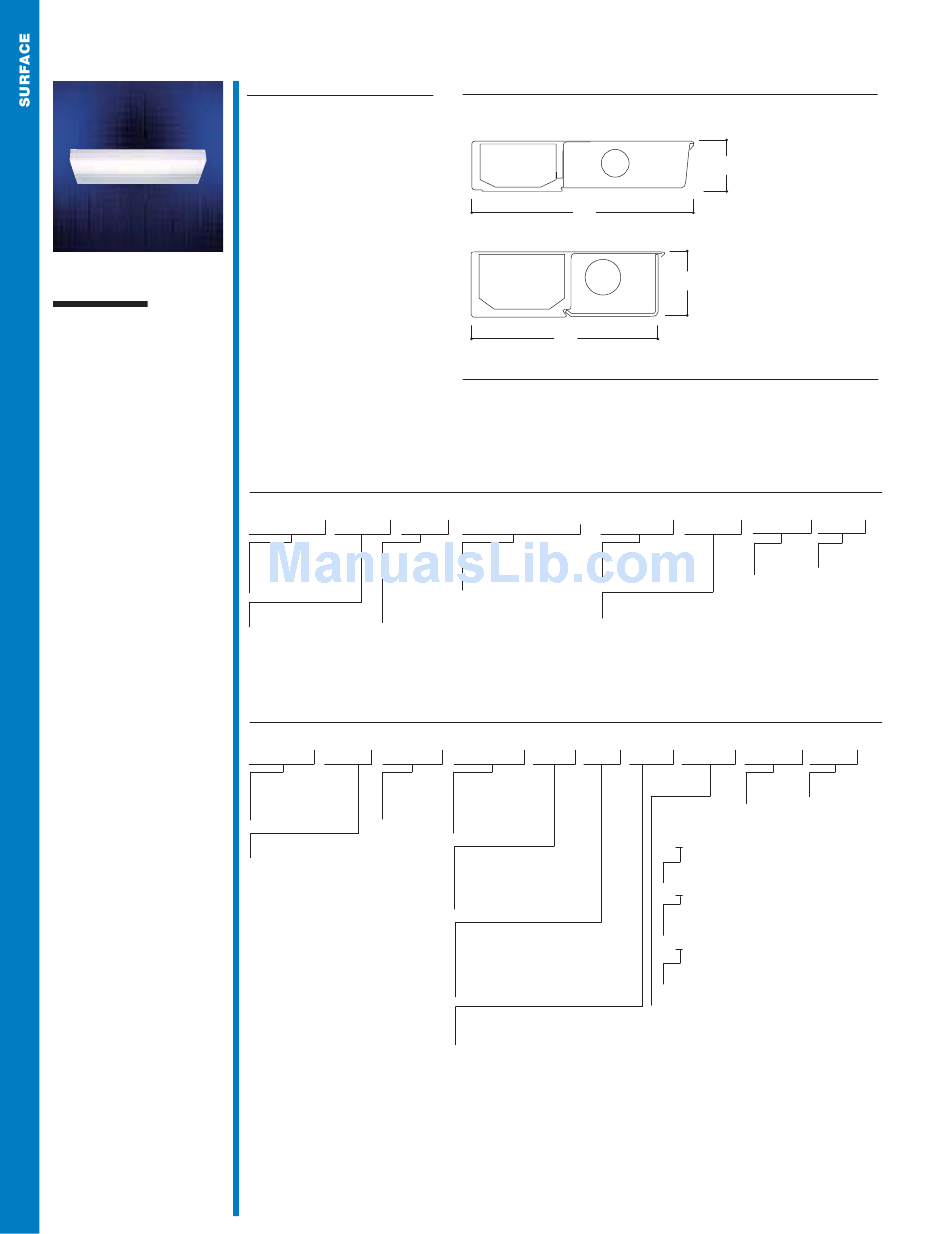

COOPER LIGHTING - METALUX
CL SERIES
1 o r 2 L a m p
S p e c i f i c a t i o n
G r a d e T 5 a n d T 8
U N D E R C A B I N E T S E R I E S
• Linear ribbed acrylic
diffuser, 50% DR additive
for pliability, non-
yellowing, excellent light
transmission, easily
removed
• Durable baked white
powder coat finish
• Heavy gauge cold rolled
steel construction, no
exposed fasteners,
rounded corners
(1)
• Designed for easy
installation and service, key
hole slots for simple
mounting
• Versatile T5 thin profile
design, for those
inconspicuous
undercabinet applications
• Electronic ballasting,
provides instant-on start
with no lamp flickering
• A lifetime limited
warranty/T5 electronic
ballasted fixture only is
available
• UL/CUL Listed. Suitable for
damp locations.
426
COOPER LIGHTING
D E S C R I P T I O N
The Metalux Undercabinet
fixture Series provides effective
task and enhancement lighting
solutions for any decor. This
specification grade fluorescent
undercabinet series incorporates
the latest Energy Efficient
Technology, T5 and T8
fluorescent lamps and available
electronic ballasts, to efficiently
improve the appearance and
productivity of the illuminated
environment.
The unique low profile design of
the Metalux undercabinet series
conforms to various applications
such as kitchens, offices, study
areas, displays, computer work
centers and practically any
undercounter installation where
an inconspicuous light source is
required.
O R D E R I N G I N F O R M AT I O N ( T 5 )
S A M P L E N U M B E R : C L - 1 1 3 T 5 - E B - 1 2 0 V - U
Number of
Housing Design
Lamps
Blank=Lens Front
1=12", 21", 33"
OF=Opaque Front
Fixture
SF=Solid Metal Front
2=24", 42"
Fixture
Series
(Not Included)
CL=Series
O R D E R I N G I N F O R M AT I O N ( T 8 )
S A M P L E N U M B E R : C L - 1 1 7 - 1 2 0 V - E B 8 1 - U
(3)
Number of
Housing Design
Lamps
Leave Blank= Lensed
Front (Standard)
1=1 Lamp
Only
OF=Opaque Front
Series
CL=Series
(1)
NOTES:
Products also available in non-US voltages and frequencies for international markets.
(3)
Applies to T5 fixture type only.
For complete product data, reference the Fluorescent Specification binder. Specifications & dimensions subject to change without notice. Consult your Cooper Lighting
Representative for availability and ordering information.
®
D I M E N S I O N S
(T5)
A
(T8)
A
NOMINAL LENGTH
A
12", 21", 24", 33", 42" (T5)
5" (127mm)
18", 24", 36", 48" (T8)
5-1/8" (133mm)
Wattage (Length)
Ballast Type
08T5=8W T5 (12", 24")
EB=Electronic Ballast
13T5=13W T5 (21", 42")
PH=Pre-Heat Ballast
0813T5=8W and 13W T5 (33")
Voltage
120V=120 Volt
Wattage (Length)
15=15W T8 (18")
17=17W T8 (24")
25=25W T8 (36")
32=32W T8 (48")
Starting Type
LTS=Low Trigger Start
(15W only) (120V only)
HTS=High Trigger Start
(15W Only)
(1)
Voltage
120V=120 Volt
277V=277 Volt
347V=347 Volt
UNV=Universal
(2)
Voltage 120-277
Options
GL=Single Element Fuse
GM=Double Element Fuse
(2)
Not available when specifying emergencies, voltage must be specific.
B
B
B
1-1/16" (27mm)
1-13/16" (46mm)
Packaging
Options
(See Options
U=Unit Pack
Section)
Options
Packaging
(See Options
U=Unit Pack
Section)
(1)
Ballast Type
Blank=Standard Magnetic Ballast
(15W only)
EB8 = T8 Electronic Instant Start.
Total Harmonic Distortion < 10%
No. of Ballast
1, 2 or 3
EB8 /PLUS= T8 Electronic Instant Start.
High Ballast Factor >1.13. Total
No. of
Harmonic Distortion < 20%
Ballast
1, 2 or 3
ER8 = T8 Electronic Program Rapid Start.
Total Harmonic Distortion < 10%
No. of Ballast
1, 2 or 3
(For complete details on generic or to specify
manufacturer's ballast see pg. 469)
