GD1330

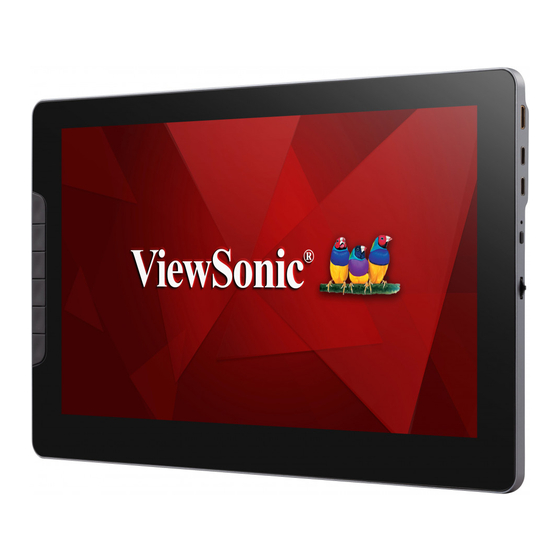

ViewBoard Pen Display
User Guide
IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in
a safe manner, as well as registering your product for future service. Warranty information contained in this User
Guide will describe your limited coverage from ViewSonic® Corporation, which is also found on our web site at
http://www.viewsonic.com in English, or in specific languages using the Regional selection box of our website.
Model No. VS18342
P/N: GD1330
Advertisement
Table of Contents
Related Manuals for ViewSonic ViewBoard GD1330
Summary of Contents for ViewSonic ViewBoard GD1330
- Page 1 Warranty information contained in this User Guide will describe your limited coverage from ViewSonic® Corporation, which is also found on our web site at http://www.viewsonic.com in English, or in specific languages using the Regional selection box of our website.
- Page 2 As a world-leading provider of visual solutions, ViewSonic® is dedicated to exceeding the world’s expectations for technological evolution, innovation, and simplicity. At ViewSonic®, we believe that our products have the potential to make a positive impact in the world, and we are confident that the ViewSonic® product you have chosen will serve you well.
-
Page 3: Safety Precautions
Do not place any heavy objects on the device or connection cables. • If smoke, an abnormal noise, or a strange odor is present, immediately turn the device off and call your dealer or ViewSonic®. It is dangerous to continue using the device. •... -
Page 4: Table Of Contents
HDMI and USB Type C ..................... 9 USB Type C ......................10 Driver Installation, Use, and Removal ......11 Installing Drivers and Software (Windows) ............11 ViewSonic Pen Manager ..................11 Setting the Display Area ..................12 Pen Input Settings ....................13 Uninstalling the Driver ..................15 Installing Drivers and Software (macOS X) ............16... - Page 5 Appendix ..............26 Specifications ......................26 Pen ........................26 Troubleshooting ....................27 Pen ........................27 FAQ ........................28 Maintenance......................29 General Precautions ....................29 Cleaning the Screen ....................29 Cleaning the Case ....................29 Disclaimer ......................29 Accessories ..............30 Pen Holder Stand ....................30 Drawing Glove ......................31 Replacing a Pen Nib ....................32 Regulatory and Service Information ......
-
Page 6: Introduction
Introduction Package Contents GD1330 Pen Display Pen Display Cover Electromagnetic Pen HDMI to Mini HDMI Cable USB Type C to USB Type C Cable USB Type C to USB Type A Cable Nib Removal Tool Replacement Pen Nib Pen Holder Stand Drawing Glove Quick Start Guide NOTE: ... -
Page 7: System Requirements
System Requirements • Operating System: ͫ PC: Windows 7/8/10/11 ͫ Mac: macOS X 10.15 and above • CPU: ͫ Pentium 233 MHz or above • Memory: ͫ 64 MB or above • Hard Disk Space: ͫ 128 MB or above •... -
Page 8: Product Overview
Product Overview Front and Side View 1. Express Keys 2. I/O Ports 3. LED Indicator 4. Power Key 5. Menu Key I/O Ports 1. Mini HDMI 2. USB Type C 3. USB Type C... -
Page 9: Making Connections
Making Connections Connecting to the Pen Display The pen display can be connected to a computer by either HDMI and USB Type C, or only USB Type C. HDMI and USB Type C 1. Ensure the power of the computer and pen display are off before connecting them. -
Page 10: Usb Type C
USB Type C 1. Ensure your computer is equipped with a full function USB Type C interface or Thunderbolt 3 interface. 2. Connect one end of the double-sided USB Type C cable to the USB Type C port of the pen display. Then connect the other end to the USB Type C port of the computer. -
Page 11: Driver Installation, Use, And Removal
Before connecting and using the pen display, it is necessary to install the below drivers and software. The drivers and software can be downloaded at: https://www.viewsonicglobal.com/q/GD1330 ViewSonic Pen Manager 1. Open the installation file and install the driver. 2. After the installation completes, you will need to restart the computer. -
Page 12: Setting The Display Area
Setting the Display Area After the pen display is connected to the computer, the Display settings will need to be adjusted. To access your computer’s Display settings: • Go to: Start > Settings > System > Display, or • Right Click on the Desktop and select Display settings. Once inside the Display settings, ensure the pen display is selected and: •... -
Page 13: Pen Input Settings
Pen Input Settings To adjust the pen input settings: 1. Open ViewSonic Pen Manager either by going to: Start > ViewSonic Pen Manager or selecting the ViewSonic Pen Manager icon from the System Tray. 2. Adjustments to the pen can be made by selecting the Pen tab. - Page 14 4. Select the Express Keys tab to customize the six (6) express keys on the pen display.
-
Page 15: Uninstalling The Driver
Uninstalling the Driver There are two ways to uninstall the driver: • Start > ViewSonic Pen Manager > Right Mouse Click > Uninstall • Open the Control Panel > Programs > Programs and Features > ViewSonic Pen Manager > select Uninstall/Change... -
Page 16: Installing Drivers And Software (Macos X)
Installing Drivers and Software (macOS X) System Requirements: 10.15 or above. Before connecting and using the pen display, it is necessary to install the below drivers and software. The drivers and software can be downloaded at: https://www.viewsonicglobal.com/q/GD1330 Pen Display Driver 1. - Page 17 2. During installation, you will need to enter your MacOS login information. After typing in your information, click Install Software. NOTE: For macOS version 10.14 and above, the system requires you to give privacy accessibility to allow the tablet driver to work. 3.
- Page 18 5. After plugging in the Pen Display, the system will show the “Keystroke Receiving” interface. Click Open System Preferences. 6. Go to: Privacy & Security > Input Monitoring > Toggle DigitizerDriver ON. 7. Enter your MacOS login information and click Modify Settings.
-
Page 19: Pen Input Settings
1. Open ViewSonic Pen Manager settings by clicking on the Settings ( ) icon. 2. Click on ViewSonic Pen, then adjustments to the pen can be made by selecting the Pen tab. 3. Select the Mapping tab to adjust screen orientation and display format. -
Page 20: Uninstalling The Driver
Uninstalling the Driver 1. Select: Go > Applications > Tablet Utility > Uninstall-Driver.app 2. Click Yes when the system asks you to remove the driver. 3. After uninstalling the driver, restart your Mac. -
Page 21: Using The Pen Display
Using the Pen Display Turning the Device On/Off 1. Ensure the display is connected properly to the computer. 2. Press the Power key to turn on the display. 3. To turn the display off, press the Power key again. Power Key Menu/OK Key NOTE: ... -
Page 22: On-Screen Display (Osd) Menu
On-Screen Display (OSD) Menu Press the Menu key to activate the On-Screen Display (OSD) Menu. Brightness Brightness Contrast Eco Mode Standard Menu Description Adjust the contrast or brightness level. Brightness Manually set a variety of image quality adjustments. Image Select one of the preset color settings. Color Temperature Adjust On-Screen Display (OSD) settings. -
Page 23: Configuring The Settings
Configuring the Settings General Operations 1. Press the Menu key to display the On-Screen Display (OSD) Menu. 2. Press the ‚ or key to select the main menu. Then press the Menu key to enter the selected menu. 3. Press the ‚ or key to select the desired menu option. Then press the Menu key to enter the sub-menu. -
Page 24: On-Screen Display (Osd) Menu Tree
On-Screen Display (OSD) Menu Tree Main Menu Sub-menu Menu Option Brightness (-/+, 0~100) Contrast (-/+, 0~100) Standard Text Brightness Eco Mode Game Movie EyeSaver H. Position (-/+, 0~100) V. Position (-/+, 0~100) Clock (-/+, 0~100) Image Phase (-/+, 0~100) Auto Aspect Wide Warm... - Page 25 Main Menu Sub-menu Menu Option English Français Deutsch 简体中文 Italiano Español Language Portuguese Türkçe OSD Setting Polish Dutch Русский 한국어 OSD H. Position (-/+, 0~100) OSD V. Position (-/+, 0~100) OSD Timeout (-/+, 5~120) Transparency (-/+, 0/25/50/75/100) Image Auto Adjust Color Auto Adjust Reset Reset...
-
Page 26: Appendix
Appendix Specifications Item Category Specifications TFT Active Matrix Type 1920 x 1080 LCD, Display Size 33.02 cm, 13” Surface Treatment Hard-coating (8H) Resolution Supported 1920 x 1080 Power DC 5V/2A, USB power supply Temperature 0° C to 40° C (32° F to 122° F) Operating conditions Humidity... -
Page 27: Troubleshooting
Troubleshooting This section describes some common problems that you may experience when using the monitor. Problem or Issue Possible Solutions • Ensure the USB cable is connected properly at both ends. • Ensure USB connectors are connected directly to the PC - not to an external hub. No picture on the display •... -
Page 28: Faq
Question Possible Solutions • After the driver was properly installed, and when the tablet and computer are connected properly, a small driver icon will appear in the icon tray of the How to find out computer. whether the driver was •... -
Page 29: Maintenance
• ViewSonic® does not recommend the use of any ammonia or alcohol-based cleaners on the display screen or case. Some chemical cleaners have been reported to damage the screen and/or case of the monitor. • ViewSonic® will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners. -
Page 30: Accessories
Accessories Pen Holder Stand When not in use, the EM Pen can be stored in the Pen Holder Stand. Additionally, Pen Nibs and the Nib Removal Tools can be stored inside the Pen Holder Stand. To open the Pen Holder Stand, rotate it anti-clockwise. Nib removal tools Pen nib... -
Page 31: Drawing Glove
Drawing Glove For better performance and smoothness when drawing on the display, you can wear the supplied Drawing Glove. -
Page 32: Replacing A Pen Nib
Replacing a Pen Nib When the pen nib gets too short or develops a sharp edge, it can be replaced with spare nibs. To replace a pen nib: 1. Use the Nib Removal Tool to pull the old nib straight out of the pen. 2. -
Page 33: Regulatory And Service Information
Regulatory and Service Information Compliance Information This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit. FCC Compliance Statement This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 34: Declaration Of Rohs2 Compliance
The following information is only for EU-member states: The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose of the equipment as unsorted municipal waste, but use the return and collection systems according to local law. -
Page 35: Indian Restriction Of Hazardous Substances
Schedule 2 of the Rule. Product Disposal at End of Product Life ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic®... -
Page 36: Copyright Information
ENERGY STAR® is a registered trademark of the U.S. Environmental Protection Agency (EPA). Disclaimer: ViewSonic® Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product. -
Page 37: Customer Service
For technical support or product service, see the table below or contact your reseller. NOTE: You will need the product’s serial number. Country/ Region Website Country/ Region Website Asia Pacific & Africa Australia www.viewsonic.com/au/ Bangladesh www.viewsonic.com/bd/ 中国 (China) www.viewsonic.com.cn 香港 (繁體中文) www.viewsonic.com/hk/ Hong Kong (English) www.viewsonic.com/hk-en/ India www.viewsonic.com/in/... -
Page 38: Limited Warranty
How long the warranty is effective: ViewSonic® displays are warranted for between 1 and 3 years, depending on your country of purchase, for all parts including the light source and for all labor from the date of the first consumer purchase. - Page 39 (e) the serial number of the product. • Take or ship the product, freight prepaid, in the original container to an authorized ViewSonic® service center or ViewSonic®. • For additional information or the name of the nearest ViewSonic® service center, contact ViewSonic®. Limitation of implied warranties:...
- Page 40 Exclusion of damages: ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for: • Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of...
-
Page 41: Mexico Limited Warranty
If a product proves to be defective in material or workmanship during the warranty period, ViewSonic® will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components &... - Page 42 Exclusion of damages: ViewSonic®’s liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for: • Damage to other property caused by any defects in the product, damages...
- Page 43 Name, address, of manufacturer and importers: México, Av. de la Palma #8 Piso 2 Despacho 203, Corporativo Interpalmas, Col. San Fernando Huixquilucan, Estado de México Tel: (55) 3605-1099 http://www.viewsonic.com/la/soporte/index.htm NÚMERO GRATIS DE ASISTENCIA TÉCNICA PARA TODO MÉXICO: 001.866.823.2004 Hermosillo: Villahermosa: Distribuciones y Servicios Computacionales SA de CV.
