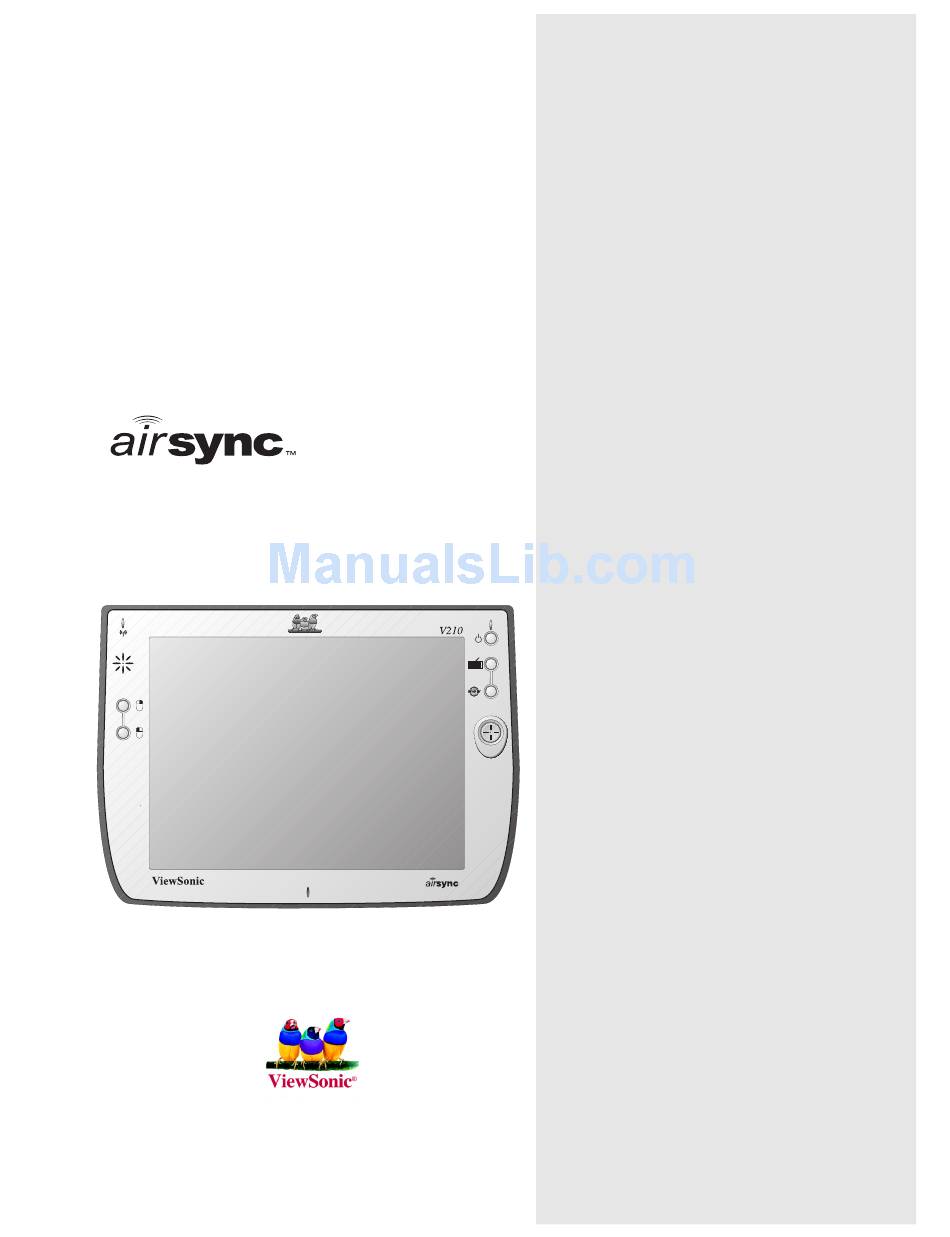

- Page 1 ® ViewSonic Display V210 Hardware Guide...
-
Page 2: Table Of Contents
Contents Introduction The airsync Display V210 ............2 Precautions ................2 airsync Display V210 Features ..........3 Front Control Buttons and Features ........3 Rear Connection Ports & Panels ........4 Basic Setup Charging the Battery .............. 5 Using the AC/DC Power Converter ........5 Setting Up Software ............... - Page 3 External USB Keyboard ............19 External USB Mouse ............19 External Headphone Set ............. 19 External Microphone ............19 Appendix airsync Display V210 Specifications ........20 Cleaning and Maintenance ............ 22 Customer Support ..............22 Limited Warranty ..............23 Safety Guidelines ..............24 Compliance and Safety Notices ..........
-
Page 4: Product Registration
Copyright © ViewSonic Corporation, 2003. All rights reserved. airsync is a trademark of ViewSonic Corporation. ViewSonic, and the three birds logo are registered trademarks of ViewSonic Corporation. Microsoft, Windows, Windows CE, Windows CE Inbox, Explorer and Internet Explorer, Pocket Word, Microsoft Word, ActiveSync, MSN, Excel, Windows RDP, Microsoft Windows CE for Smart Displays, .NET Compact Framework, and the Windows logo are trademarks of Microsoft... -
Page 5: The Airsync Display V210
Introduction The airsync Display V210 This hardware guide will help you set-up your airsync Display V210 and introduce you to its many features. Important: Save the original box and all packing material for future shipping needs. Your airsync Display V210 package contents include: •... -
Page 6: Airsync Display V210 Features
Display V210 Features Front Control Buttons and Features Figure 1: Front of airsync Display V210 Features, Lights, and Buttons Antenna Activity Indicator Light Speaker Mouse Button - Right Mouse Button - Left Power On/Off Indicator Light On/Off Switch Input Panel On/Off Switch... -
Page 7: Rear Connection Ports & Panels
Rear Connection Ports & Panels Figure 2: Back of airsync Display V210 Ports, Buttons, Slots, Jacks, & Switches Microphone Jack Headphone Jack DC Power Jack Main Battery Port Stylus in Storage Slot Stylus Tether Port USB Type A Ports (Two) - for Keyboard and Mouse... -
Page 8: Basic Setup
Charging the Battery Using the AC/DC Power Converter Before using the airsync Display V210 for the first time, charge the battery for at least 5 hours. You may charge, recharge, and/or operate your airsync Display V210 with available AC power using the AC/DC power converter. -
Page 9: Setting Up Software
ViewSonic airsync Client Your firm’s software development department will have already installed and set up all software necessary for your airsync Display V210 to perform its designated function(s) in the field. About the airsync Client Software The airsync client software included in the V210 software bundle allows the device to become airsync-enabled. -
Page 10: Using The Airsync Display V210
Using the airsync Display V210 The Buttons The buttons on the right and left side of the airsync Display V210 screen give you quick access to utilities and provide navigational control. Figure 4: The airsync Display V210 Buttons A. Right-click Button - Simulates the right-click button on a mouse. -
Page 11: Using The Stylus
When not in use, you can conveniently place your stylus in the storage slot located on the top edge of your airsync Display V210. A Stylus Tether has been provided to allow you to attach the stylus to the airsync so it will not become lost or misplaced. -
Page 12: Moving Windows
1 Tap on the control panel’s Settings button - the Settings window will open 2 Tap on the General Tab 3 Double-tap on the checkerboard graphic to set your double tap rate 4 Close the Settings window To save your user and wireless settings, power-down the unit then resume. ViewSonic airsync Display V210... -
Page 13: Battery & Power Properties
Battery & Power Properties Your airsync Display V210 has two power sources, AC (using the AC/DC converter) or battery. To run your airsync Display V210 from an AC outlet, use the supplied AC/DC adapter cable. It takes the airsync Display V210 approximately two (2.5) hours to recharge while not in use and four (4) hours while in use. -
Page 14: Battery Power Status
Slide the Battery Latch upward into the unlock position. Slide out the old battery. Slide in the new battery. Slide the Battery Latch into the locked position. Figure 7: Battery Removal and Insertion ViewSonic airsync Display V210... -
Page 15: Antenna Signal Properties
Antenna Signal Properties Your airsync Display V210 can use a wireless radio signal standard called Wi-Fi (802.11b) to communicate with a local Wi-Fi network connected to a modem. The quality of your radio connection signal can be weakened by excessive distance and by intervening materials such as walls and furnishings. -
Page 16: Network Settings
Accessed by from Start on the Task Bar by selecting Settings, Control Panel, then Network and Dial-up Connections. This panel allows you to add, name, and configure five types of connection options to your airsync Display V210: Make New Connection... -
Page 17: Pci-Islp21 Settings
Accessed from Start on the Task Bar by selecting Settings, Control Panel, then Network and Dial-up Connections. This panel allows you to assign IP server address and Domain Name server address for your airsync Display V210. ISP Address Tab - Allows you to chose between an automatically set IP address (DHCP) or a specified IP (user filled-in) address. - Page 18 NOTE: If you are not thoroughly familiar with network types, you should avoid making changes to your Advanced settings without first seeking assistance from your IT Administrator. ViewSonic airsync Display V210...
-
Page 19: Resetting The Airsync V210
Resetting the airsync V210 Soft Reset Should your airsync Display V210 lock up or fail to respond to the stylus, it may be restarted without turning off the power. 1 Locate the reset button on the top of your airsync. -
Page 20: Pcmcia Cards
Do not force the card in or out. It should be easy to insert or remove. Figure 9: PCMCIA Card For a list of supported PCMCIA cards, see our web site www.viewsonic.com. ViewSonic airsync Display V210... -
Page 21: Optional Accessories
Rear Ports A DC Power Port B USB Mini Type B Port (One) C USB Type A Ports (Two) Figure 10: Dock and Ports NOTE: When mounted in the Dock, the airsync’s external USB ports become inactive. ViewSonic airsync Display V210... -
Page 22: Commercially Available Accessories
External USB Keyboard You can attach a USB external keyboard using any one of the two USB ports on the top side of the airsync Display V210 as indicated by the arrow in the figure below (or by using the optional airpanel Dock, shown previously). -
Page 23: Appendix
Appendix airsync Display V210 Specifications Processor ® Intel 400 MHz XScale PXA255 Memory RAM: PC 133MHz SDRAM, 128 MB Flash ROM: Intel Strata Flash 64 MB UDI Display 10.4" TFT Active Matrix SVGA 6-bit LCD Color Display RGB Vertical Stripe, Anti-Glare Screen... - Page 24 In the Package: Contents airsync Display V210 Quick Start Guide airsync Display V210 Battery AC/DC Power Adapter with Power Cord Stylus (2) and Stylus Tether (1) USB Mini-B to A Setup Cable (Blue) Mini-VGA Cable (Black) V210 CD (with the User Guide) Basic Software Bundle: ®...
-
Page 25: Cleaning And Maintenance
® cleaners on the airsync Display V210 screen or case. Some chemical cleaners have been reported to damage the screen and/or case of the airsync Display V210. ViewSonic will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners. -
Page 26: Limited Warranty
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND NONINFRINGEMENT. How long the warranty is effective:* ViewSonic airpanels are warranted for one (1) year for all parts (except software) and one (1) year for all labor from the date of the first consumer purchase. -
Page 27: Safety Guidelines
BLACK. The wire which is coloured BROWN must be connected to the terminal in the plug which is marked with the letter L or coloured RED. If you have any questions concerning which proper power cord to use, please consult with the dealer from whom you have purchased the product. ViewSonic airsync Display V210... -
Page 28: Compliance And Safety Notices
• Do not operate a portable transmitter near unshielded blasting caps or in an explosive environment unless it is a type especially qualified for such use. • Do not operate the radio or attempt to transmit data unless the antenna is connected: if not, the radio may be damaged. ViewSonic airsync Display V210... - Page 29 Council for Interference from information Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it might cause radio interference. Install and use the equipment according to the instruction manual. ViewSonic airsync Display V210...
- Page 30 “To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.” “Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.”...
-
Page 31: Safety Notices
Power Supply Safety Notice The power supply provided with this device is for use with this device only. Replace only with the same or equivalent type power supply as recommended by the manufacturer. ViewSonic airsync Display V210... - Page 32 • Do not attempt to make any adjustment of the unit. • If the unit requires service, contact an authorized service center. • Avoid direct eye exposure to the infrared LED beam. Be aware that the beam is invisible light that cannot be seen. ViewSonic airsync Display V210...
- Page 33 ViewSonic Corporation...
