Moxa Technologies NPort 6450 Series Quick Installation Manual

NPort 6450 Series
Quick Installation Guide
Third Edition, June 2008
1. Overview
The NPort 6450 series of secure serial device servers provide reliable
serial-to-Ethernet connectivity for a wide range of serial devices. The
NPort 6450 supports TCP Server, TCP Client, UDP, and Pair-Connection
operation modes to ensure the compatibility of network software. In
addition, the NPort 6450 also supports Secure TCP Server, Secure TCP
Client, Secure Pair-Connection, and Secure Real COM modes for security
critical applications such as banking, telecom, access control and remote
site management.
2. Package Checklist
Before installing the NPort 6450, please verify that the package contains
the following items:
Standard Accessories
1 NPort 6450
Document & Software CD
Quick Installation Guide
Power adaptor
Product Warranty Statement
2 wall mount ears
Optional Accessories
DK-35A: 35 mm DIN-rail mounting kit
DIN-rail power supply
CBL-RJ45M9-150: 8-pin RJ45 to male DB9 cable
CBL-RJ45M25-150: 8-pin RJ45 to male DB25 cable
NM-TX01: Network module with one 10/100BaseTX Ethernet port
(RJ45 connector; supports cascade redundancy and RSTP/STP)
NM-FX01-S-SC: Network module with one 100BaseFX single mode
fiber port (SC connector; supports cascade redundancy and
RSTP/STP)
NM-FX02-S-SC: Network module with two 100BaseFX single mode
fiber ports (SC connectors; supports cascade redundancy and
RSTP/STP)
NM-FX01-M-SC: Network module with one 100BaseFX multi mode
fiber port (SC connector; supports cascade redundancy and
RSTP/STP)
(Optional Accessories continued on next page)
P/N: 1802064500012
— 1 —
NM-FX02-M-SC: Network module with two 100BaseFX multi mode
fiber ports (SC connectors; supports cascade redundancy and
RSTP/STP)
NM-GPRS/GSM: GPRS/GSM modem module
NOTE: Please notify your sales representative if any of the above items
are missing or damaged.

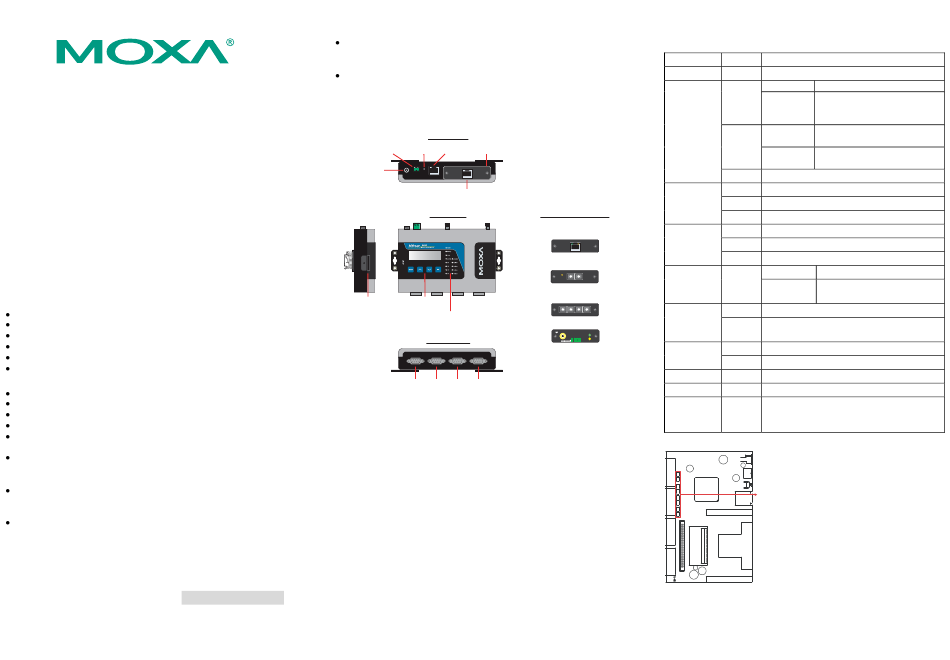

3. Hardware Introduction
Rear View
DOUT Reset LAN Module
Power Jack
RJ45
Top View
SD slot Function Keys
LED Indicators

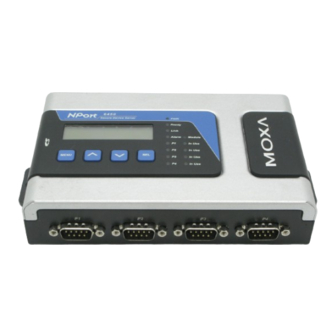

Front View
P1 P2 P3 P4
Reset Button—Press the Reset button continuously for 5 sec to load
factory defaults: Use a pointed object, such as a straightened paper clip or
toothpick, to press the reset button. This will cause the Ready LED to
blink on and off. The factory defaults will be loaded once the Ready LED
stops blinking (after about 5 seconds). At this point, you should release
the reset button.
— 2 —
LED Indicators
Name
PWR
Ready
Link
Optional
Network Modules
RJ45 Ethernet
P1-P4
Fiber Ethernet
FX
Fiber Ethernet
Alarm
GPRS/GSM
NM-GPRS/GSM
GSM
GPRS
Module
GSM
GPRS
GPRS/GSM
Signal
Strength
Adjustable pull high/low resistor for RS-422/485 (150 KΩ or 1 KΩ)
Color Function
Red Power is being supplied to the power input.
Steady on: NPort is booting up.
Blinking: IP conflict, DHCP or BOOTP
Red
server problem, or relay output
problem.
Steady on: Power is on and the NPort 6450
is functioning normally.
Green
Blinking: NPort is responding to Locate
function.
Off Power is off, or power error condition exists.
Orange 10 Mbps Ethernet connection.
Green 100 Mbps Ethernet connection.
Off
Ethernet cable is disconnected, or has a short.
Orange Serial port is receiving data.
Green Serial port is transmitting data.
Off Serial port is idle.
Steady on: Ethernet port is idle.
Orange Blinking:
Fiber port is transmitting or
receiving data.
Red The relay output (DOUT) is open (exception).
The relay output (DOUT) is shorted (normal
Off
condition).
Green A network module has been detected.
Off No network module is present.
Green
GSM connection
Orange GPRS connection
The signal quality is indicated by the number of
Green LEDs that are lit; 4 LEDs indicates maximum
signal strength.
Jumpers are used to set the pull
high/low resistors. The default is
150 KΩ. Short the jumpers to set
this value to 1 KΩ. Do not use the
JP8, JP9 for Port 1
JP10, JP11 for Port 2
KΩ setting with RS-232 mode,
JP12, JP13 for Port 3
JP14, JP15 for Port 4
since doing so will degrade the
RS-232 signals and shorten the
communication distance.
