NPort 6450 Series
Quick Installation Guide
Seventh Edition, August 2015
Overview

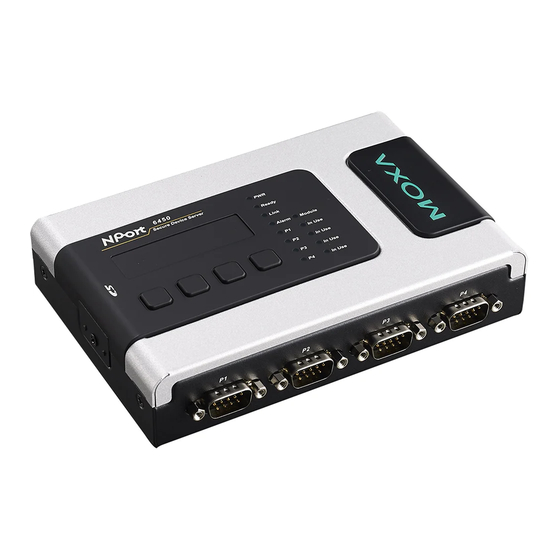

The NPort 6450 secure serial device servers provide reliable
serial-to-Ethernet connectivity for a wide range of serial devices.
The NPort 6450 supports TCP Server, TCP Client, UDP, and
Pair-Connection operation modes to ensure the compatibility of
network software. In addition, the NPort 6450 also supports
Secure TCP Server, Secure TCP Client, Secure Pair-Connection,
and Secure Real COM modes for security critical applications such
as banking, telecom, access control, and remote site
management.
Package Checklist
Before installing the NPort 6450, please verify that the package
contains the following items:
•
1 NPort 6450
•
Power adaptor (does not apply to T models)
•
2 wallmount ears
•
Quick installation guide
•
Documentation and software CD
•
Warranty card
Optional Accessories
•
DK-35A: 35 mm DIN-rail mounting kit
•
DIN-rail power supply
•
CBL-RJ45M9-150: 8-pin RJ45 to male DB9 cable
•
CBL-RJ45M25-150: 8-pin RJ45 to male DB25 cable
•
NM-TX01: Network module with one 10/100BaseTX Ethernet
port (RJ45 connector; supports cascade redundancy and
RSTP/STP)
•
NM-FX01-S-SC/NM-FX01-S-SC-T: Network module with one
100BaseFX single mode fiber port (SC connector; supports
cascade redundancy and RSTP/STP)
•
NM-FX02-S-SC/NM-FX02-S-SC-T: Network module with two
100BaseFX single mode fiber ports (SC connectors; supports
cascade redundancy and RSTP/STP)
•
NM-FX01-M-SC/NM-FX01-M-SC-T: Network module with one
100BaseFX multi mode fiber port (SC connector; supports
cascade redundancy and RSTP/STP)
•
NM-FX02-M-SC/NM-FX02-M-SC-T: Network module with two
100BaseFX multi mode fiber ports (SC connectors; supports
cascade redundancy and RSTP/STP)
P/N: 1802064500014
– 1 –
*1802064500014*
NOTE Please notify your sales representative if any of the above
items are missing or damaged.
Hardware Introduction
NOTE The LCD panel is only available with standard temperature
models.
Reset Button—Press the Reset button continuously for 5 sec to
load factory defaults. Use a pointed object, such as a straightened
paper clip or toothpick, to press the reset button. This will cause
the Ready LED to blink on and off. The factory defaults will be
loaded once the Ready LED stops blinking (after about 5 seconds).
At this point, you should release the reset button.
– 2 –
LED Indicators
Name
Color
Function
PWR
Red
Power is being supplied to the power input.
Ready
Red
Steady on: NPort is booting up.
Blinking:
IP conflict, DHCP or BOOTP
server problem, or relay output
problem.
Green
Steady on: Power is on and the NPort 6450
is functioning normally.
Blinking:
NPort is responding to Locate
function.
Off
Power is off, or power error condition exists.
Link
Orange
10 Mbps Ethernet connection.
Green
100 Mbps Ethernet connection.
Off
Ethernet cable is disconnected, or has a
short.
P1-P4
Orange
Serial port is receiving data.
Green
Serial port is transmitting data.
Off
Serial port is idle.
FX
Orange
Steady on: Ethernet port is idle.
Blinking:
Fiber port is transmitting or
receiving data.
Alarm
Red
The relay output (DOUT) is open
(exception).
Off
The relay output (DOUT) is shorted (normal
condition).
Module
Green
A network module has been detected.
Off
No network module is present.
Adjustable pull high/low resistor for RS-422/485
(150 KΩ or 1 KΩ)
Jumpers are used to set
the pull high/low resistors.
The default is 150 KΩ.
Short the jumpers to set
this value to 1 KΩ. Do not
use the KΩ setting with
RS-232 mode, since doing
so will degrade the RS-232
signals and shorten the
communication distance.
– 3 –
