MB200i Product Guide
SAI Rev 1
www.satoamerica.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MB200I and is the answer not in the manual?

Questions and answers

Related Manuals for SATO MB200I

Summary of Contents for SATO MB200I

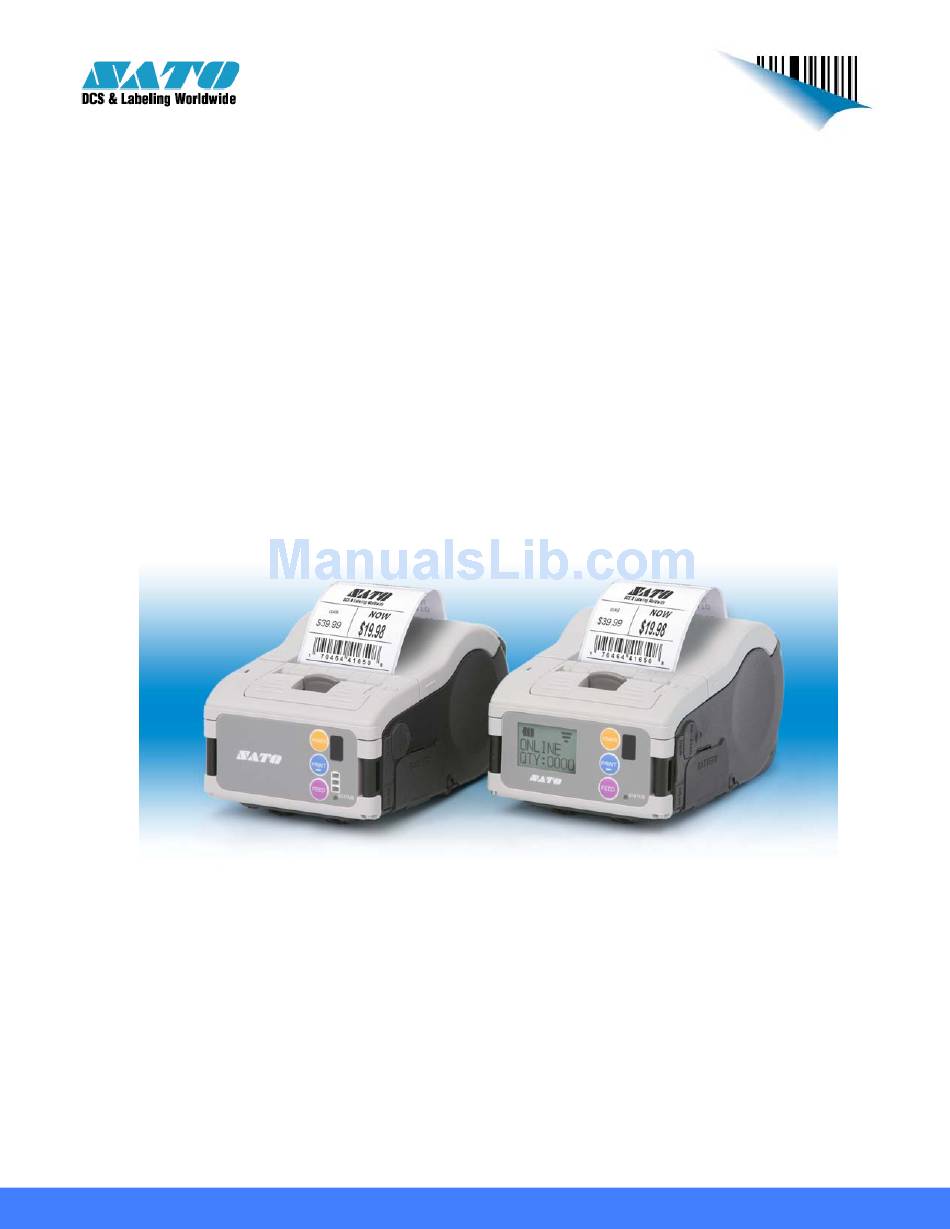

  • Page 1 MB200i Product Guide SAI Rev 1 www.satoamerica.com...

  • Page 2: Table Of Contents

    Polycarbonate Construction – RoHS Compliant... 9 3.2.2 Large LCD ... 10 3.2.3 Large Media Capacity ... 10 ... 10 IRMWARE ESIGN 3.3.1 Programming Language ... 10 SATO MOBILE PRINTING SOLUTION & POCKET GALLERY ... 11 WARRANTY INFORMATION ... 13 www.satoamerica.com www.satoamerica.com www.satoamerica.com www.satoamerica.com...
  • Page 3 All information in this publication is subject to change without notice, and does not represent a commitment on the part of SATO. No part of this manual may be reproduced for any purpose or in any form, including electronic storage and retrieval, without the express permission of SATO. Content with this document should be considered confidential and should not be distributed to any third parties.

  • Page 4: About Sato

    SATO is one of the first in the industry to introduce a complete, multi- protocol EPC-compliant, UHF RFID solution. SATO is publicly listed on the first section of Tokyo Stock Exchange in Japan. It has worldwide offices in the United States, Belgium, France, Germany, Spain, United Kingdom, Poland, New Zealand, Australia, Singapore, Malaysia, Thailand and China.
  • Page 5 30 Apollo Drive, Mairangi Bay PO Box 305-031, North Shore, Auckland, New Zealand www.satonewzealand.com BRANCH/REPRESENTATIVES OFFICE SATO ASIA PACIFIC PTE. LTD. - INDIA REPRESENTATIVE OFFICE Ground Floor, B-259, Greater Kailash Part-1, New Delhi - 110048, India SATO SHANGHAI CO., LTD - Shenzhen Branch Suite 1207, North Tower.

  • Page 6: Product Positioning

    The MB200i product is equipped with serial (RS232) communication and Infrared (IR) ports; however, support for IrDA has been expanded on the MB200i, to include IrCOMM (3-wired Cooked mode that can be used with PC and PDA connection), IrOBEX (Cell phone connection) and BHT (scanners) in addition to the common IrSIR protocol.

  • Page 7: Product Features

    The printer mechanism is controlled by a motor with high-speed and advanced technology, ensuring the MB200i can print at a faster speed of up to 4 inches per second (103mm/s) 3.1.2...

  • Page 8: Supported Interfaces

    3.1.4 Supported Interfaces The standard interface for MB200i is RS232 and IRDA (Infrared). Bluetooth and Wireless LAN are also available as optional factory fitted interface modules. The built-in wireless module in the MB200i is compliant with Wireless LAN IEEE802.11b standard.

  • Page 9: Mechanical Design

    Additionally, the polycarbonate material is virtually unbreakable with its ability to withstand drops to concrete on its flat surfaces from 2M. In addition, vibration endurance tests also prove that the MB200i is able to operate while undergoing 36,000 vibrations without damage.

  • Page 10: Large Lcd

    3.2.3 Large Media Capacity The MB200i supports a media capacity size of up to 2.64" OD (67mm). The larger roll capacity of the MB200i allows for 37% more label capacity thereby reducing the amount of roll changes, increasing employee productivity...

  • Page 11: Sato Mobile Printing Solution & Pocket Gallery

    SATO MOBILE PRINTING SOLUTION & POCKET GALLERY Pocket Label Gallery is an add-on module to the Label Gallery software to enable the MB200i printer to operate with Windows™ CE enabled handheld terminals. With the release of Label Gallery 2.0 this software features a True Pro version with the option to add multiple user (terminals) licensing.
  • Page 12 The current version of Pocket Label Gallery supports ARM, MIPS, x86, SH3 and SH4 with the following platforms: • Microsoft Window CE.NET operating system Pocket PC2002 • Handheld PC 2000 (H/PC 2000) • • Handheld PC Pro (H/PC Pro) Pocket Label Gallery has been tested on the following handheld terminals (although it is not limited to these terminals): Philips NINO: MIPS Palm Size •...

  • Page 13: Warranty Information

    WARRANTY INFORMATION SATO warrants that when purchased from SATO or through an authorized SATO distributor or reseller; this printer, its components, and accessories are in good working order and are free from defects in workmanship and materials. The warranty period for Printers (excluding the print head, platen roller and battery) is one (1) year from the purchase date.
