SATO M-8485Se Parts List

Opposite unit
Hide thumbs Also See for M-8485Se:
Table of Contents

Advertisement

Quick Links

See also: Operator's Manual , Operator and Technical Reference Manual
®
M-8485Se Printer
Opposite Unit

Parts List

Page 1-1
P/N 9001087
Rev. B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M-8485Se and is the answer not in the manual?

Questions and answers

Related Manuals for SATO M-8485Se

Summary of Contents for SATO M-8485Se

  • Page 1: Parts List

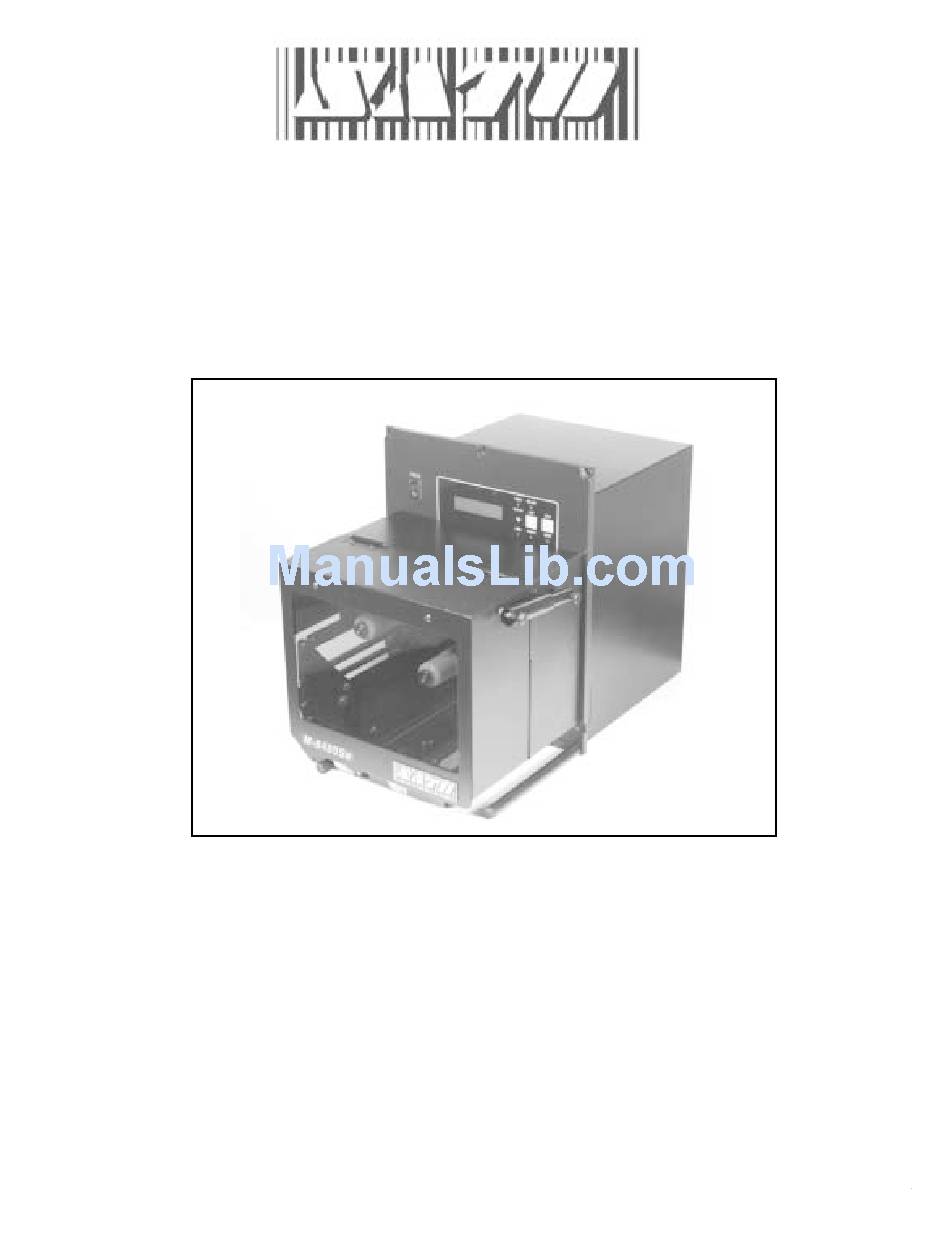

    ® M-8485Se Printer Opposite Unit Parts List Page 1-1 P/N 9001087 Rev. B...

  • Page 2: Table Of Contents

    Cover Assembly ... 17 Cont PCB Assembly ... 20 Check PCB Assembly ... 21 Interface (Option) ... 22 Memory (Option)... 23 Page 2 SATO M-8485Se Printer (Opposite Unit) Parts List SATO Industrial Bar Code Printers Table of Contents Page Rev. B...

  • Page 3: Frame Assembly

    SATO Industrial Bar Code Printers Frame Assembly Rev. B Page 3 SATO M-8485Se Printer (Opposite Unit) Parts List...
  • Page 4 SATO Industrial Bar Code Printers Frame Assembly Page 4 Rev. B SATO M-8485Se Printer (Opposite Unit) Parts List...
  • Page 5 SATO Industrial Bar Code Printers Frame Assembly Rev. B Page 5 SATO M-8485Se Printer (Opposite Unit) Parts List...
  • Page 6 MN0401024 PE8730200 ND0040030 PA3734800 PA2730700 PB0731600 ND0040030 PR1730600 MD4402022 Page 6 SATO M-8485Se Printer (Opposite Unit) Parts List SATO Industrial Bar Code Printers DESCRIPTION Engine frame Guide post Pan head screw Stay Pan head screw Spring bracket Pan head screw...
  • Page 7 PR4730501 MD4301222 RJ2730203 MH0300821 RH1731300 PA3739900 RJ2730100 MD3300822 PH0730200 RH1731600 Rev. B SATO M-8485Se Printer (Opposite Unit) Parts List SATO Industrial Bar Code Printers DESCRIPTION Timing belt Motor pulley W-point screw Stepper Motor Pan head screw Shaft (idle) Gear Pulley...

  • Page 8: Print Head Assembly

    SATO Industrial Bar Code Printers Print Head Assembly Page 8 Rev. B SATO M-8485Se Printer (Opposite Unit) Parts List...
  • Page 9 SATO Industrial Bar Code Printers Print Head Assembly Rev. B Page 9 SATO M-8485Se Printer (Opposite Unit) Parts List...
  • Page 10 PA3732100 MD3250522 PA4730401 PC0730200 GH000781A RH1731200 RH1727100 PB5730300 MC0401022 NA1030022 Page 10 SATO M-8485Se Printer (Opposite Unit) Parts List SATO Industrial Bar Code Printers DESCRIPTION SEN5 cable Pan head screw Pressure cam E-Ring Feed roller Ball supporter Ball supporter Gear...

  • Page 11: Ribbon Assembly

    SATO Industrial Bar Code Printers Ribbon Assembly Rev. B Page 11 SATO M-8485Se Printer (Opposite Unit) Parts List...
  • Page 12 PA0680400 PC1730100 PE2730100 PB5730100 MA0302522 PR1734400 PC0740200 MH0300821 Page 12 SATO M-8485Se Printer (Opposite Unit) Parts List SATO Industrial Bar Code Printers DESCRIPTION SEN4 cable Pan head screw Sensor bracket (ribbon) Pan head screw Disk plate cover Pan head screw...

  • Page 13: Feed Roller Assembly

    SATO Industrial Bar Code Printers Feed Roller Assembly Rev. B Page 13 SATO M-8485Se Printer (Opposite Unit) Parts List...
  • Page 14 PA3734400 MD4300622 MJ9300622 RH1732600 MN0300624 PA3734500 MA0301022 MT1300522 Page 14 SATO M-8485Se Printer (Opposite Unit) Parts List SATO Industrial Bar Code Printers DESCRIPTION Paper guide bracket SEN7 cable PCB bracket (C) PCB bracket (D) Pan head screw Lift spring Pan head screw...
  • Page 15 PB0730800 PE3720200 PE3720500 MC0300622 MN0300824 MN0400824 PA3732700 MD3201221 PA1732300 Rev. B SATO M-8485Se Printer (Opposite Unit) Parts List SATO Industrial Bar Code Printers DESCRIPTION Stopper collar Spring (pressure) Roller bracket Pan head screw Shaft (pressure roller) Roller Roller Pan head screw...

  • Page 16: Pressure Roller Assembly

    PB0731800 PT1108040 PA4730300 MJ9300622 PR1732800 PR1732900 MA1300822 PB0733601 PE2730600 Page 16 SATO M-8485Se Printer (Opposite Unit) Parts List SATO Industrial Bar Code Printers DESCRIPTION Roller holder (pressure) Pressure roller Ball supporter Plate spring Thin head screw Plate (holder) Plate (holder)

  • Page 17: Cover Assembly

    SATO Industrial Bar Code Printers Cover Assembly Rev. B Page 17 SATO M-8485Se Printer (Opposite Unit) Parts List...
  • Page 18 SATO Industrial Bar Code Printers Cover Assembly Page 18 Rev. B SATO M-8485Se Printer (Opposite Unit) Parts List...
  • Page 19 PC0090300 PB0013700 MT3020621 NA1060022 NB0060022 PA6730300 PR1340500 MD4300625 MT1300522 Rev. B SATO M-8485Se Printer (Opposite Unit) Parts List SATO Industrial Bar Code Printers DESCRIPTION Close cover Power supply POW Switch Fuse POW/SW cable Pan head screw Pan head screw Pan head screw...

  • Page 20: Cont Pcb Assembly

    MD4300622 PC9730100 PA3739900 RH1727300 RH1735100 RJ7770200 RJ7770300 Page 20 SATO M-8485Se Printer (Opposite Unit) Parts List SATO Industrial Bar Code Printers DESCRIPTION Main PCB ASSY Pan head screw Spring(lock) Connector lock Pitch sensor relay code set Sensor relay code set B...

  • Page 21: Check Pcb Assembly

    Check PCB CODE RJ4731200 RH4730000 PA3736600 MD4300822 Rev. B SATO M-8485Se Printer (Opposite Unit) Parts List SATO Industrial Bar Code Printers DESCRIPTION Check PCB set Check cable set PCB bracket Pan head screw Page 21...

  • Page 22: Interface (Option)

    Interface (Option) CODE MD3300622 WCL404070 WCL404051 WCL404060 11S000158 11S000136 Page 22 SATO M-8485Se Printer (Opposite Unit) Parts List SATO Industrial Bar Code Printers DESCRIPTION Screw IEEE-1284 Parallel Interface Serial Interface USB Interface Ethernet Interface CX/TX Interface Rev. B...

  • Page 23: Memory (Option)

    Memory (Option) RJ4770100 PT9770600 MD4300621 PT9770700 MD4201621 MT1200422 Rev. B SATO M-8485Se Printer (Opposite Unit) Parts List SATO Industrial Bar Code Printers CODE DESCRIPTION PC card PCB Assy Spacer Pan head screw Spacer Pan head screw Page 23...
