SATO M8485S Parts List

SATO M8485S Parts List

Industrial bar code printers standard parts list for 3m
Hide thumbs Also See for M8485S:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Programming Manual

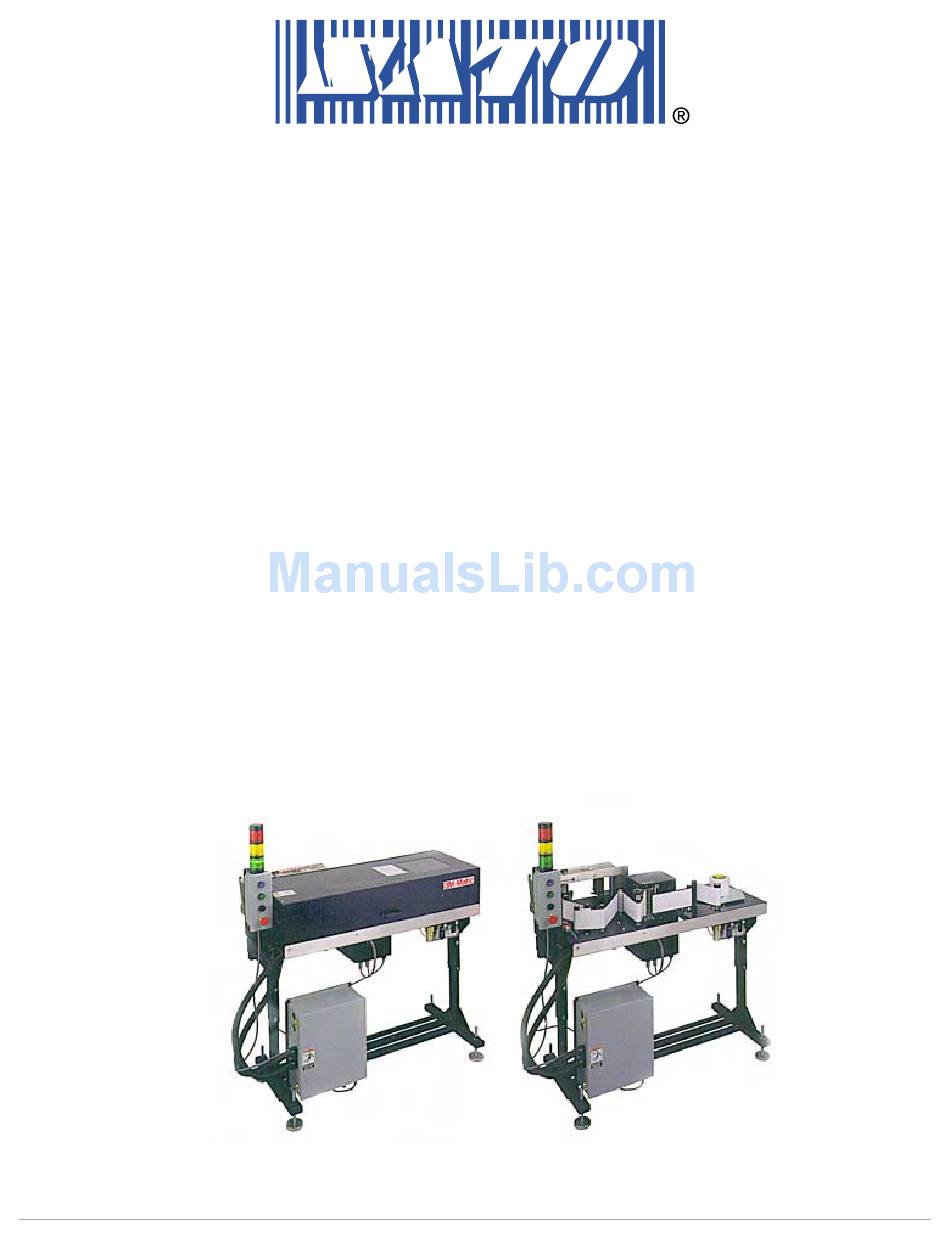

Industrial Bar Code Printers
M8485S Standard & Opposite
and
M8490S Standard & Opposite

Parts List

for
3M
Page 1-1
Rev. A May 2000
Rev. B Sept 2000
