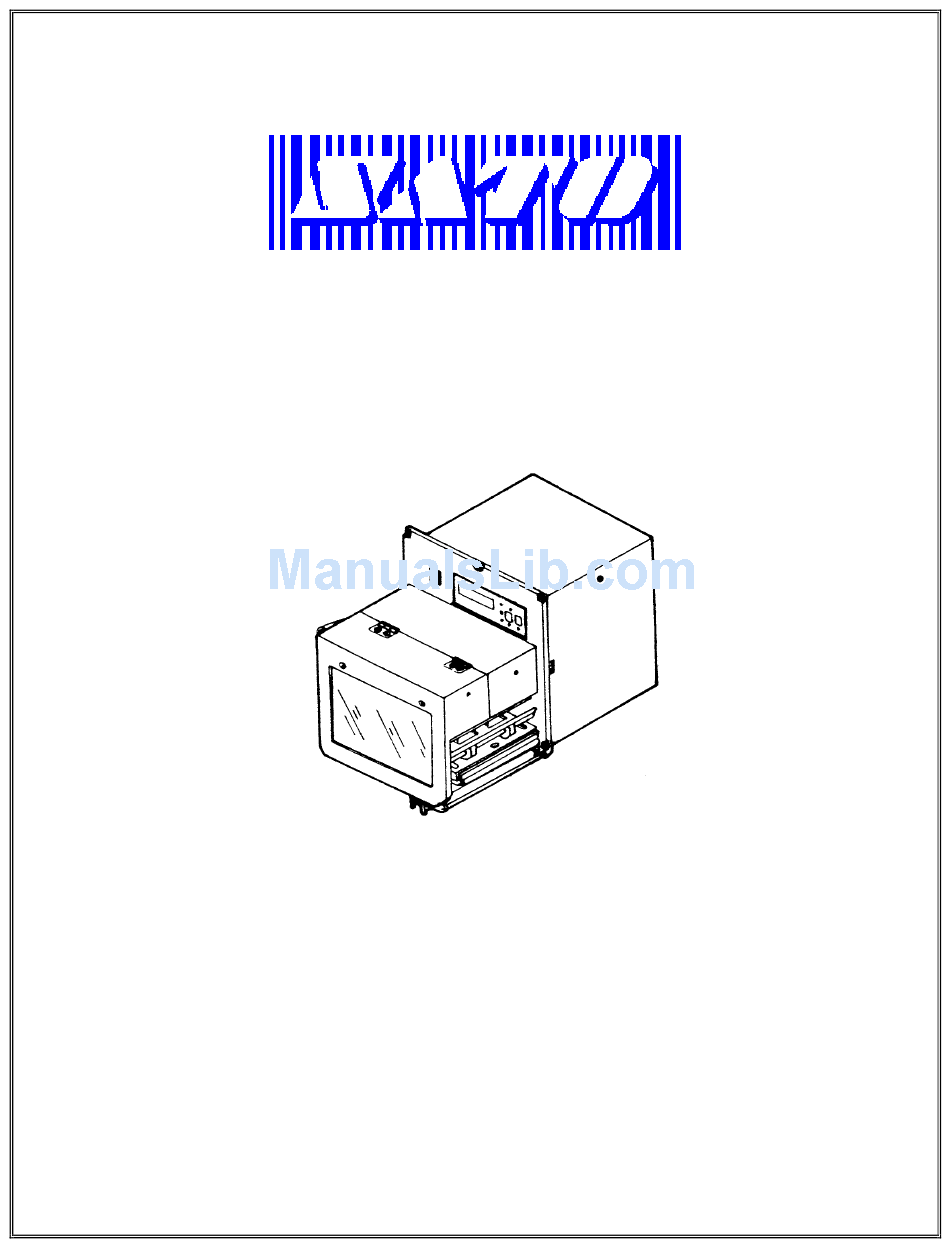

M8485S
Parts List
Please note that this list is divided into two sections. Use the second section
(pages 30-56) if your printer S/N is between 50100000 and 70699999.
For all other serial numbers please use the first section (pages 3-29)
P/N 9001033
REV. D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M8485S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SATO M8485S

Summary of Contents for SATO M8485S

  • Page 1 M8485S Parts List Please note that this list is divided into two sections. Use the second section (pages 30-56) if your printer S/N is between 50100000 and 70699999. For all other serial numbers please use the first section (pages 3-29) P/N 9001033 REV.

  • Page 2: Parts List

    M8485S Parts List (Use this section for all serial numbers other then 50100000 to 70699999) Sato America, Inc. 10350-A Nations Ford Rd. Charlotte, NC 28273 Phone (704) 644-1650 Fax (704) 644-1662 P/N 9001033 REV. D...

  • Page 3: Table Of Contents

    M8485S Description Page # Frame Assembly Thermal Head Assembly 9-12 Ribbon Assembly 13-17 Feed Roller Assembly 18-21 Pressure Roller Assembly 22-23 Cover Assembly 24-26 Main PCB Assembly 27-27 Check PCB Assembly 28-28 Memory PCB Assembly 29-29 (Option)

  • Page 4: Frame Assembly

    M8485S FRAME ASSEMBLY ITEM # PART NUMBER DESCRIPTION PL1730700 Engine frame PT2108006 Dry metal PB0540101 Guide post MC0401022 Pan head screw PR1730500 Stay MC0401222 Pan head screw PA3732500 Spring bracket MC0300622 Pan head screw PB0731500 Shaft (support) MC0401022 Pan head screw...
  • Page 5 M8485S FRAME ASSEMBLY ITEM # PART NUMBER DESCRIPTION MN0402024 Hex bolt MN0401024 Hex bolt PE8730200 Pulley ND0040030 E-snap ring PA3734800 Pulley bracket PA2730700 Plate nut PB0731600 Shaft (roller) PR1730600 Tension roller ND0040030 E-snap ring MD4402022 Pan head screw PT8190064 Timing belt...
  • Page 6 M8485S FRAME ASSEMBLY...
  • Page 7 M8485S FRAME ASSEMBLY...
  • Page 8 M8485S FRAME ASSEMBLY...

  • Page 9: Thermal Head Assembly

    M8485S THERMAL HEAD ASSEMBLY ITEM # PART NUMBER DESCRIPTION RH1731100 SEN 5 Cable MD3201221 Pan head screw PR1730700 Pressure cam ND0060030 E-snap ring PR0730200 Feed roller PT1112060 Ball supporter PT1109050 Ball supporter PE8730100 Gear ND0040030 E-snap ring PA2730200 Head frame...
  • Page 10 M8485S THERMAL HEAD ASSEMBLY ITEM # PART NUMBER DESCRIPTION GH000441A Print Head Assy RH1731200 HDS cable RH1732200 HDP cable PB5730300 Screw (head) MC0401022 Pan head screw...
  • Page 11 M8485S THERMAL HEAD ASSEMBLY...
  • Page 12 M8485S THERMAL HEAD ASSEMBLY...

  • Page 13: Ribbon Assembly

    M8485S RIBBON ASSEMBLY ITEM # PART NUMBER DESCRIPTION RH1730400 SEN4 cable PA3730200 Sensor bracket (ribbon) MA0300622 Pan head screw MC0301022 Pan head screw PE6720100 Disc plate cover MD4300622 Pan head screw MD3300822 Pan head screw MA0301022 Pan head screw MT1300522...
  • Page 14 M8485S RIBBON ASSEMBLY ITEM # PART NUMBER DESCRIPTION PT2301020 Dry metal PA0680400 Disc PC1730100 Spring PE2730100 Stopper collar PB5730100 Adjust screw MA0302522 Pan head screw...
  • Page 15 M8485S RIBBON ASSEMBLY...
  • Page 16 M8485S RIBBON ASSEMBLY...
  • Page 17 M8485S RIBBON ASSEMBLY...

  • Page 18: Feed Roller Assembly

    M8485S FEED ROLLER ASSEMBLY ITEM # PART NUMBER DESCRIPTION PR4731400 Paper guide bracket PA3732700 Micro switch bracket RH1731500 SEN7 cable MA0200821 Pan head screw PA3730500 PCB bracket (C) MC0300622 Pan head screw PA3730600 PCB bracket (D) PA4730200 Lift spring MD4300622...
  • Page 19 M8485S PA3731700 Latch handle FEED ROLLER ASSEMBLY ITEM # PART NUMBER DESCRIPTION PB0730900 Shat (latch) PC2730100 Spring (latch) ND0020030 E-snap ring PA3731200 Sensor bracket (pitch) RH1731000 SEN2 cable MD4300622 Pan head screw MJ9300622 Thin head screw PA3731000 Paper lid (up)
  • Page 20 M8485S FEED ROLLER ASSEMBLY...
  • Page 21 M8485S FEED ROLLER ASSEMBLY...

  • Page 22: Pressure Roller Assembly

    M8485S PRESSURE ROLLER ASSEMBLY ITEM # PART NUMBER DESCRIPTION PL1730900 Roller holder (pressure) PB0731800 Pressure roller PT1108040 Ball supporter PA4730300 Plate spring MJ9300622 Thin head screw PR1732800 Plate ( holder F ) PR1732900 Plate ( holder R ) MA1300822 Flat head screw...
  • Page 23 M8485S PRESSURE ROLLER ASSEMBLY...

  • Page 24: Cover Assembly

    M8485S COVER ASSEMBLY ITEM # PART NUMBER DESCRIPTION PH1731701 Close cover (A) PR7730100 Power supply (115V) HD100301A Fuse RH1732000 POW1 cable RH1732100 POW2 cable RH1730500 POW SW cable MC0301022 Pan head screw MC0401022 Pan head screw MC0301022 Pan head screw...
  • Page 25 M8485S COVER ASSEMBLY...
  • Page 26 M8485S COVER ASSEMBLY...

  • Page 27: Main Pcb Assembly

    M8485S MAIN PCB ASSEMBLY ITEM # PART NUMBER DESCRIPTION RJ1731100 Main PCB PA3730300 PCB bracket (A) PA3730400 PCB bracket (B) MD4300622 Pan head screw MD4300622 Pan head screw...

  • Page 28: Check Pcb Assembly

    M8485S CHECK PCB ASSEMBLY ITEM # PART NUMBER DESCRIPTION RJ4730600 Check PCB RH4730000 Check cable set PA3736600 PAC bracket PT9681600 Spacer NA0030022 Plain washer MT1300522 Hex nut MD4300822 Pan head screw...

  • Page 29: Memory Pcb Assembly

    M8485S MEMORY PCB ASSEMBLY (Option) ITEM # PART NUMBER DESCRIPTION RJ1723100 Card PCB set PT9730000 Spacer MD3300622 Pan head screw...

  • Page 30: Spare Parts List

    M8485S Spare Parts List (Use with printer serial numbers between 50100000 and 70699999) Sato America, Inc. 545 Weddell Drive Sunnyvale, CA 94089 Phone (408) 745-1300 Fax (408) 745-1309 P/N 9001033 REV. C...
  • Page 31 M8485S Description Page # Frame Assembly 32-37 Thermal Head Assembly 38-41 Ribbon Assembly 42-45 Feed Roller Assembly 46-49 Pressure Roller Assembly 50-50 Cover Assembly 51-53 Main PCB Assembly 54-54 Power Supply Assembly 55-55 Memory PCB Assembly 56-56 (Option)
  • Page 32 M8485S Frame Assembly Item # Part Number Description PT2108006 Dry metal PB0540101 Guide post MC0401022 Pan head screw PR1730500 Stay MC0401222 Pan head screw PA3732500 Spring bracket MC0300622 Pan head screw PB0731500 Shaft (support) MC0401022 Pan head screw PR1730300 Roller...
  • Page 33 M8485S Frame Assembly Item # Part Number Description PC2730300 Spring (latch) ND0020030 E-snap ring PA3732800 Adjust plate MC0301022 Pan head screw PE8730200 Pulley ND0040030 E-snap ring PL1720100 Motor pulley MJ1400524 W-point screw PT8190064 Timing belt PA1730500 Shaft bracket MC0401022 Pan head screw...
  • Page 34 M8485S Frame Assembly Item # Part Number Description PH0730200 DSW cover RH1731600 DSW cable set MN0402524 Hex bolt MN0402024 Hex bolt MN0401024 Hex bolt PB0732800 Shaft (ribbon adjust) PA3734800 Pulley bracket PA2730700 Plate nut ND0040030 E-snap ring PA1730201 Clamp MN0300824...

  • Page 35: Frame Assembly

    M8485S FRAME ASSEMBLY...
  • Page 36 M8485S FRAME ASSEMBLY...
  • Page 37 M8485S FRAME ASSEMBLY...
  • Page 38 M8485S Thermal Head Assembly Item # Part Number Description RC0730200 Print head sub assembly MC0401022 Pan head screw PR1732100 Pressure cam ND0060030 E-snap ring PR0730200 Feed roller PT1112060 Ball supporter PT1109050 Ball supporter PE8730100 Gear ND0040030 E-snap ring PA2730200 Head frame...
  • Page 39 M8485S Thermal Head Assembly Item # Part Number Description MD4401022 Pan head screw PD1730600 Handle (A) PA2730600 Latch handle PD1731200 Handle (B) MD4301022 Pan head screw MJ1300424 W-point screw...

  • Page 40: Thermal Head Assembly

    M8485S THERMAL HEAD ASSEMBLY...
  • Page 41 M8485S THERMAL HEAD ASSEMBLY...

  • Page 42: Ribbon Assembly

    M8485S Ribbon Assembly Item # Part Number Description PC0730100 Spring RC2730200 Ribbon sub (unwind) RC2730300 Ribbon sub (rewind) PT1112080 Ball supporter PR1730800 Pulley ND0060030 E-snap ring PT8085064 Timing belt PA1730600 Ribbon frame MC0401022 Pan head screw PV9730101 Brush PA1731000 Adjust plate...
  • Page 43 M8485S RIBBON ASSEMBLY...
  • Page 44 M8485S RIBBON ASSEMBLY RIBBON ASSEMBLY...
  • Page 45 M8485S Feed Roller Assembly Item # Part Number Description...
  • Page 46 M8485S PR4730100 Paper guide bracket PA3730500 PCB bracket (C) PA3730600 PCB bracket (D) PT9680500 Spacer PA1730800 PCB protecter PA3732700 Microswitch bracket MC0300622 Pan head screw PA3731400 Paper guide (R) PA3731501 Paper guide (L) MJ9300622 Screw PA3731600 Slide guide PE1730200 Slider...

  • Page 47: Feed Roller Assembly

    M8485S PA3731700 Latch handle PB0730900 Shaft latch PC2730100 Spring (latch) ND0020030 E-snap ring PA3731200 Sensor bracket MJ9300622 Thin head screw RH1731000 SEN 2 cable MD4300622 Pan head screw PA3731000 Paper lid MA0301022 Pan head screw MT1300522 Hex nut PE2730300 Stopper collar...
  • Page 48 M8485S FEED ROLLER ASSEMBLY...

  • Page 49: Pressure Roller Assembly

    M8485S Pressure Roller Assembly...
  • Page 50 M8485S Item # Part Number Description PR1730102 Roller holder (pressure) PB0731801 Pressure roller PT1108040 Ball supporter PA4730300 Plate spring MJ9300622 Thin head screw PA1730400 Stopper plate MC0300622 Pan head screw Cover Assembly...

  • Page 51: Cover Assembly

    M8485S Item # Part Number Description MC0401022 Pan head screw PH1730300 Close cover (B) MC0300622 Pan head screw PA1730900 Sub cover MC0300622 Pan head screw PH1731701 Close cover PR1731000 Cover bracket MC0301022 Pan head screw PH1730601 Open cover (A) MA7300625...
  • Page 52 M8485S COVER ASSEMBLY...

  • Page 53: Main Pcb Assembly

    M8485S Main PCB Assembly Item # Part Number Description...

  • Page 54: Power Supply Assembly

    M8485S RJ1730300 Main PCB assy PA3730300 PCB bracket (A) PA3730400 PCB bracket (B) MD4300622 Pan head screw Power Supply Assembly Item # Part Number Description...

  • Page 55: Memory Pcb Assembly

    M8485S PR7730100 Power supply set MC0301022 Pan head screw HD100301A Fuse RH1730500 POW switch cable RH1730100 POW1 cable RH1730200 POW2 cable MC0401022 Pan head screw Memory PCB Assembly (Option) Item # Part Number Description...
  • Page 56 M8485S RJ1723100 Card PCB assy PT9730000 Spacer MD3300622 Pan head screw...
