HWM COMLog 2 IS Quick Start Manual page 7

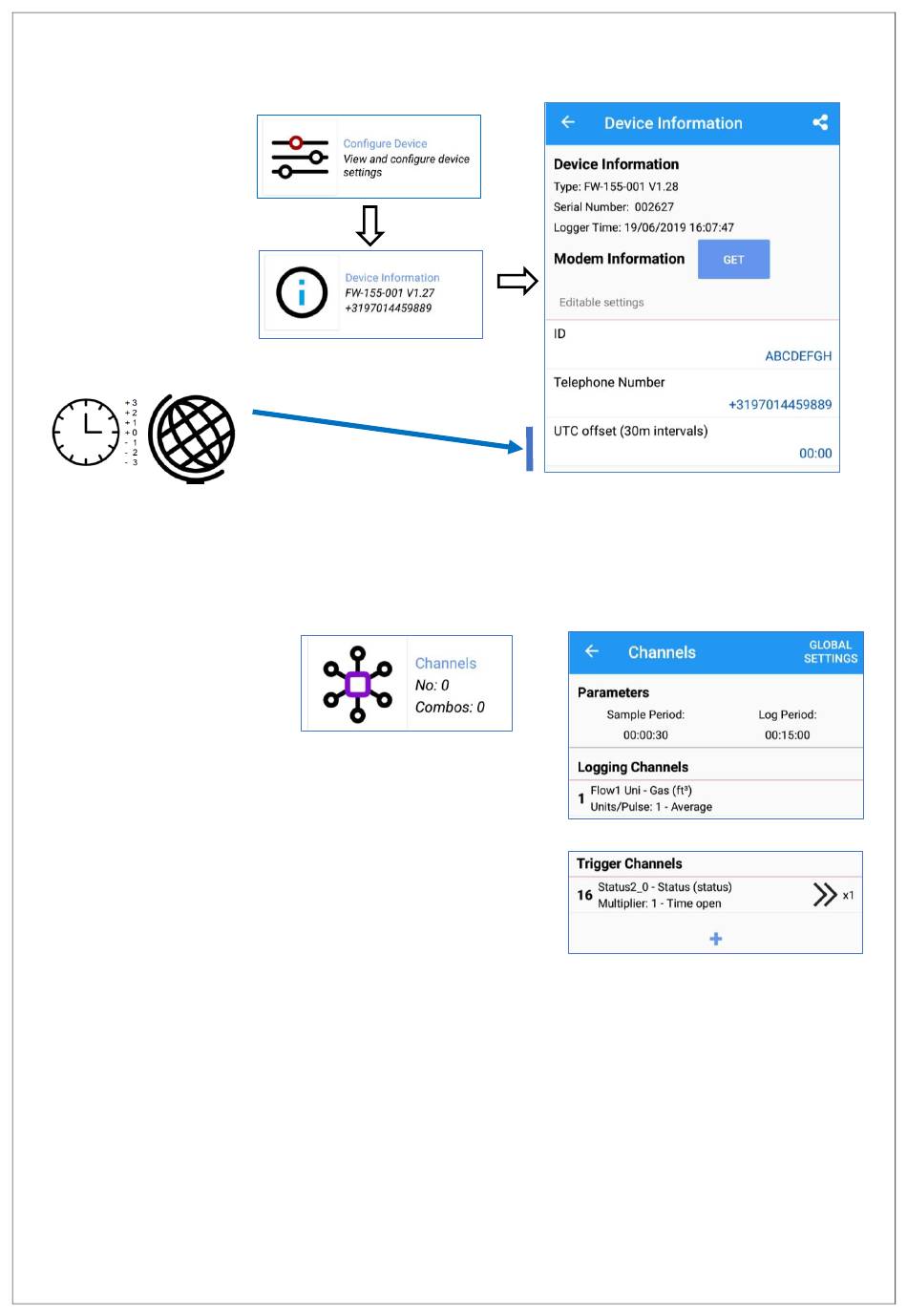

2. Setup Logger ID and time-zone
Tap
"Configure Device".
Tap
"Device Information".
Set local time-zone.
3. Display existing Channel settings (summary)
The required logger settings will vary according to the meter and other equipment used at
the site.
Tap the Channels icon.
(A "Combo" is a way of
setting a combination of
conditions that, together, can generate an alarm).
A summary of number of channels and combos
already configured is shown.
(The illustrations opposite show an example of a single
flow channel with Tamper alarm set).
Flow channels appear as Logging channels. A tamper alarm
uses a status input which appear as a Trigger channel.
7
