Installation - HWM COMLog 2 IS Quick Start Manual

3 I
NSTALLATION

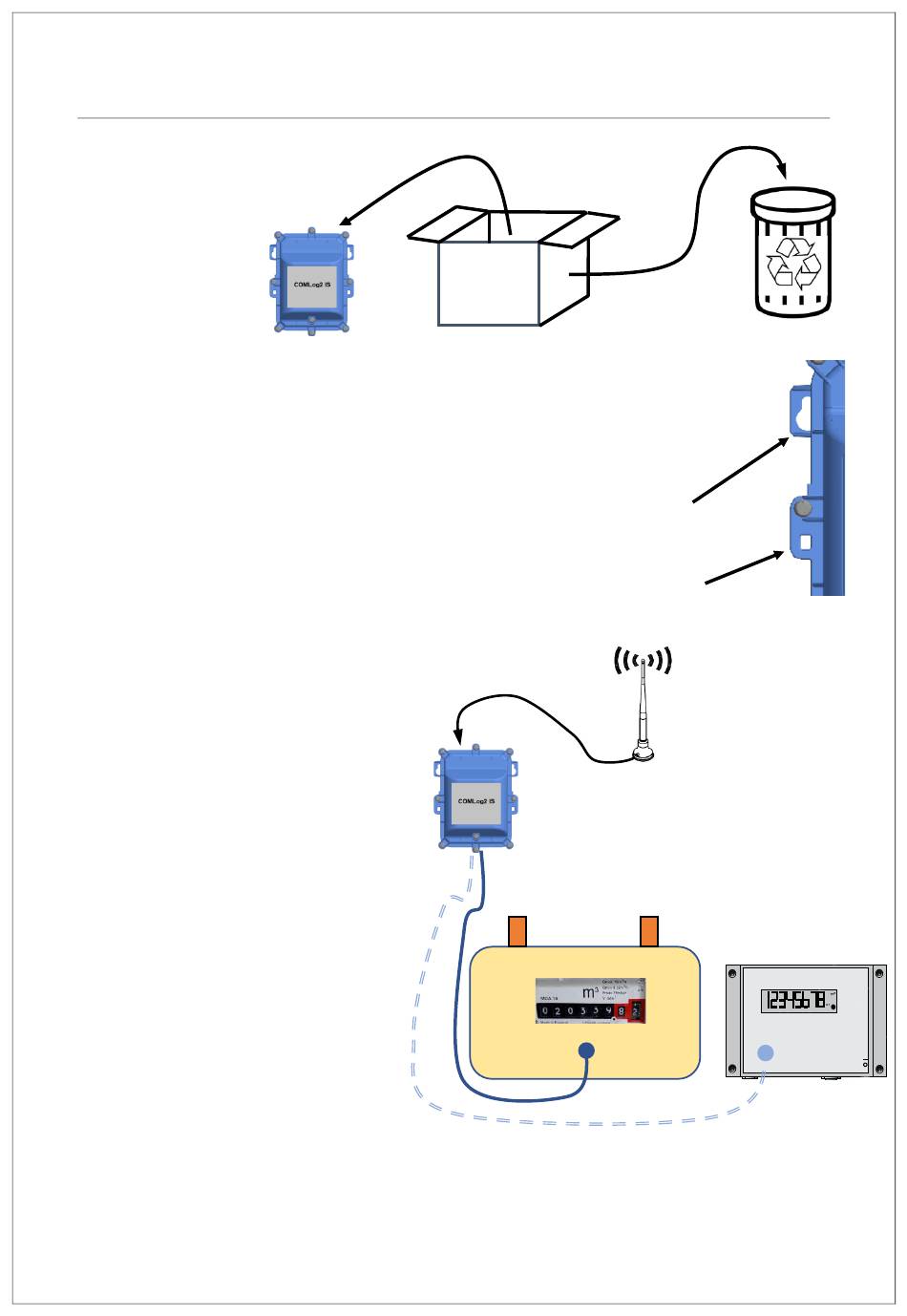

1. Un-pack logger
Dispose of packaging
responsibly.
2. Install logger.
This product is only to be installed and connected by a fully ATEX trained installer.
Check on available space in the meter cabinet and decide where to position the
logger, antenna, and cables. Ensure there is access to the magnetic sensor (see 4).
Securely mount the logger with suitable fixings; keyhole mounting holes
are provided.
Note: The logger should be installed upright (pictured) to give best battery life.
If required, add anti-tamper seals between lid and base using holes provided.
3. Connect antenna to logger
Place the antenna in a suitable location.
Connect antenna to the logger.
Ensure antenna cable has no sharp bends.
4. Connect logger to meter output(s).
Connect the logger Flow1 input to the
meter output.
Use a suitable adapter cable if required.
Alternatively, where a volume corrector
is in place, Flow 2 can be used for
corrected meter flow.
Use a suitable adapter cable if required.
If required, activate pulse repeat outputs of the logger, and connect to any downstream
equipment (not shown).
Locate the cables so they cannot be damaged or cause a trip-hazard, and secure in position.
5
