Cooper Lighting Shaper 210-D Specification Sheet

D E S C R I P T I O N

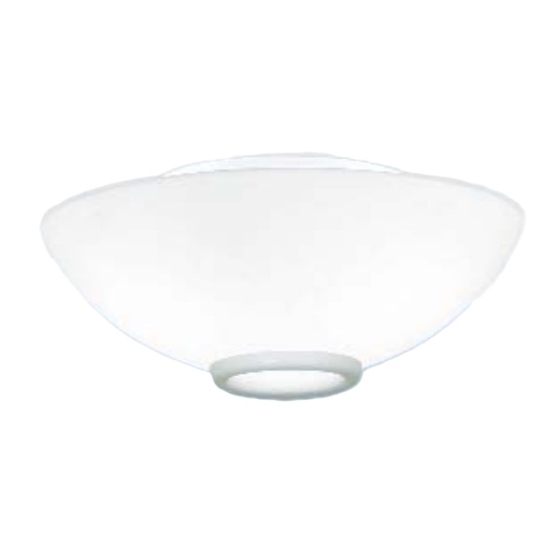

210-D Luminous Bowl features direct/indirect illumination with an
Integral Downlight and is available in two sizes.
S P E C I F I C AT I O N F E AT U R E S
M a te ri a l
Painted and chromed cold rolled
steel, solid brass or solid
aluminum with a matte white
acrylic bowl.
F i n i s h
Standard: Matte White (MW).
Premium: Lacquered Satin
Aluminum (SAL), Satin Chrome
(SC), Satin Copper (SCP), Satin
Brass (SB), Polished Chrome
(PC), Satin Nickel (SN), Polished
Nickel (PN), Polished Copper
(PCP), Polished Brass (PB),
Oxidized Brass (OBRS),
Lacquered Satin Chrome (SCL),
Lacquered Satin Nickel (SNL),
Natural Aluminum (NA)
[Sustainable Design] or Custom
Color (CC). Matte white
mounting pan.
O p t i c s
Refer to
www.shaperlighting.com for
complete photometrics.
B a l l a s t
Integral electronic HPF , multi-volt
120/277V (347V Canada),
O R D E R I N G I N F O R M AT I O N
Sample Number: 210-D-18-CFL/3/13-PARH/1/50-277V-PCP
Series Size Lamp
1
18" CFL/3/13
210-D Bowl =
Surface
24" CFL/3/26
with
1
INC/3/40
Downlight
2
INC/3/60
Notes:
1
Available in 18".
2
Available in 24".
3
Available with CFL only.
4
Not available in 26W.
5
Consult the factory
for available options.
6
S upplied by others.
7
Interior applications only.
thermally protected with end-of-
life circuitry to accommodate the
specified lamp wattage.
L a m p / S o cke t
18": Three (3) 13W (2GX7) 4-pin
low wattage CFL lamps or three
(3) 40W A-19 lamps.
24": Three (3) 26W (G24q-3) 4-pin
quad CFL lamps or three (3) 60W
A-19 lamps. Downlight: One (1)
50W PAR20H or one (1) 13W
(G24q-1) 4-pin quad CFL lamp.
CFL socket injection molded
plastic. INC socket fired ceramic
rated for 660W-250V. Lamps
furnished by others.
I n s t a l l a t i o n
Supplied with a universal
circular strap for a standard 4"
J-box or plaster ring. Provided
with 2-circuit wiring.
O p t i o n s
Hand Painted Faux Alabaster
Bowl (FB), Hand Painted Faux
Linen Bowl (LNB), Caming Trim -
At top edge of bowl (CT), Trim
Ring (TR), Double Bar Trim (2B),
CFL Dimming Ballast (26W only)
Downlight Finish
Lamp
Standard
2
CFL/1/13
MW Matte White =
PARH/1/50
Premium
CC Custom Color =
Voltage
OBRS Oxidized Brass =
120V
PB Polished Brass =
3
277V
PC Polished Chrome =
3
347V
PCP Polished Copper =
PN Polished Nickel =
SAL Lacquered =
Satin Aluminum
NA Natural Aluminum =
SB Satin Brass =
SC Satin Chrome =
SCP Satin Copper =
SN Satin Nickel =
SCL Lacquered Satin Chrome =
SNL Lacquered Satin Nickel =
Specifications and dimensions subject to change without notice.
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
- Contact the factory for ballast
options (DM), Remote
Emergency Ballast - Supplied by
others (REM). Damp location
(DL): All Painted Finishes,
Lacquered Satin Nickel (SNL) and
Lacquered Satin Chrome (SCL)
only. MRI Applications (INC only)
- Contact Factory. Energy Star
Rating - consult factory.
L a b e l s
U.L. and C.U.L. approved for
indoor and damp location. See
options for damp location
finishing requirements.
M o d i f i c a t i o n s
Shaper's skilled craftspeople
with their depth of experience
offer the designer the flexibility
to modify standard surface
luminaires for project specific
solutions. Contact the factory
regarding scale options, unique
finishes, mounting, additional
materials/colors, or decorative
detailing.
Options
2B Double Bar Trim =
TR Trim Ring =
CT Caming Trim =
DL Damp Location = 7
DM CFL Dimming =
4, 5
Ballast
REM Remote =
Emergency
Battery
6
FB Hand Painted =
Faux Alabaster
Bowl
shaperlighting.com
Type
Date
210-D SERIES
S u r f a c e L u m i n a i r e
L u m i n o u s B o w l
SUSTAINABLE
DESIGN
Shaper has a long-standing history of
offering environmentally-friendly fixtures.
The copper and bronze alloys used in our
exterior luminaires feature up to 98% re-
cycled content, contribute less undesirable
air emissions compared to painted alumi-
num and are easy to recycle.
MAGNETIC
RESONANCE
IMAGING (MRI)
Lighting fixtures for MRI facilities are
specialized and unique, requiring non-
ferrous construction. Fluorescent fixtures
cannot be used due to the ferrous parts in
ballasts and lampholders. Modified incan-
descent fixtures meet the requirements.
ENERGY
STAR
Shaper now offers a wide variety
of fixtures that can be provided
with an Energy Star Rating.
QUICK SHIP (QS)
Shaper's Quick Ship program
features over thirty-four fixtures
with finish options such as Satin
Chrome, Natural Aluminum and
Satin Brass and a wide variety of
lamp selections. All products ship
in five days from receipt of order.
Refer to the Icon Legend
Link on shaperlighting.com.
