Cooper Lighting Shaper 210 SERIES Specification Sheet

D E S C R I P T I O N

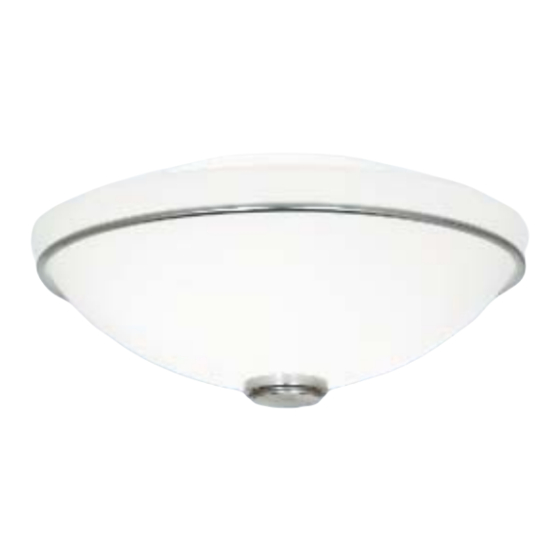

210 Luminous Bowl features trim options and is available in two
sizes.
S P E C I F I C AT I O N F E AT U R E S
M a te ri a l
Cold rolled steel mounting pan
with a matte white acrylic bowl.
Optional Caming Trim.
F i n i s h
Standard: Matte White (MW).
Premium: Satin Chrome (SC),
Polished Chrome (PC), Satin
Brass (SB), Satin Copper (SCP),
Polished Brass (PB), Polished
Copper (PCP), Oxidized Brass
(OBRS), Lacquered Satin Chrome
(SCL), Satin Nickel (SN), Polished
Nickel (PN), Lacquered Satin
Nickel (SNL), Lacquered Satin
Aluminum (SAL), Natural
Aluminum (NA) [Sustainable
Design] or Custom Color (CC).
Matte white mounting pan.
O p t i c s
Refer to
www.shaperlighting.com for
complete photometrics.
B a l l a s t
Integral electronic HPF , multi-volt
120/277V (347V Canada),
thermally protected with end-of-
O R D E R I N G I N F O R M AT I O N
Sample Number: 210-18-INC/2/75-120V-PCP
Series Size Lamp
1
14" CFL/2
210 Bowl =
(26/32W-Triple)
Surface
18"
Luminaire
CFL/2/13
INC/2/60
INC/2/75
Notes:
1
Available in 18".
2
Available in 14".
3
Available with CFL only.
4
C onsult the factory for available options.
5
Interior applications only.
life circuitry to accommodate the
specified lamp wattage.
L a m p / S o cke t
14": Two (2) 13W (2GX7) 4-pin
low wattage CFL lamps or two (2)
60W A-19 lamps.
18": Two (2) 26W or 32W (GX24q-
3) 4-pin triple CFL lamps or two
(2) 75W A-19 lamps. CFL socket
injection molded plastic. INC
socket fired ceramic rated for
660W-250V. Lamps furnished by
others.
I n s t a l l a t i o n
Supplied with a universal
circular strap for a standard 4"
J-box or plaster ring.
O p t i o n s
Hand Painted Faux Alabaster
Bowl (FB), Caming Trim (CT), 3"
Dia. Stepped Finial with Caming
Trim (SFCT), Traditional Finial
(TF), 3" Dia. Stepped Finial with
Trim Ring (SFTR), Trim Ring (TR),
Decorative Finial with Double
Bar Trim (DF2B), CFL Dimming
Ballast - Contact the factory for
Voltage Finish
120V
Standard
3
277V MW Matte White =
2
3
347V
Premium
2
CC Custom Color =
1
OBRS Oxidized Brass =
PB Polished Brass =
PC Polished Chrome =
PCP Polished Copper =
PN Polished Nickel =
SAL Lacquered =
Satin Aluminum
NA Natural Aluminum =
SB Satin Brass =
SC Satin Chrome =
SCP Satin Copper =
SN Satin Nickel =
SCL Lacquered Satin Chrome =
SNL Lacquered Satin Nickel =
Specifications and dimensions subject to change without notice.
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
ballast options (DM), Modified
Integral Emergency Battery -
Refer to spec sheet for drawing
(MEM), Damp Location (DL): All
Painted Finishes, Lacquered
Satin Chrome (SCL) and
Lacquered Satin Nickel (SNL)
only. MRI applications (INC only).
Energy Star Rating - consult
factory.
L a b e l s
U.L. and C.U.L. approved for
indoor and damp location. See
options for damp location
finishing requirements.
M o d i f i c a t i o n s
Shaper's skilled craftspeople
with their depth of experience
offer the designer the flexibility
to modify standard surface
luminaires for project specific
solutions. Contact the factory
regarding scale options, unique
finishes, mounting, additional
materials/colors, or decorative
detailing.
Options
CT Caming Trim =
5
DL Damp Location =
4
DM CFL Dimming Ballast =
MEM Modified Integral =
Emergency Battery
DF2B Decorative Finial =
w/ Double Bar Trim
SFCT 3" Diameter Stepped =
Finial w/ Caming Trim
SFTR 3" Diameter Stepped =
Finial w/ Trim Ring
TF Traditional Finial =
FB Hand Painted Faux =
Alabaster Bowl
TR Trim Ring =
LNB Hand Painted =
Faux Linen Bowl
shaperlighting.com
Type
Date
210 SERIES
S u r f a c e L u m i n a i r e
L u m i n o u s B o w l
SUSTAINABLE
DESIGN
Shaper has a long-standing history
of offering environmentally-friendly
fixtures. The copper and bronze alloys
used in our exterior luminaires feature
up to 98% recycled content, contribute
less undesirable air emissions compared
to painted aluminum and are easy to
recycle.
MAGNETIC
RESONANCE
IMAGING (MRI)
Lighting fixtures for MRI facilities are
specialized and unique, requiring non-
ferrous construction. Fluorescent fixtures
cannot be used due to the ferrous parts in
ballasts and lampholders. Modified incan-
descent fixtures meet the requirements.
ENERGY
STAR
Shaper now offers a wide variety of
fixtures that can be provided with an
Energy Star Rating.
Refer to the Icon Legend
Link on shaperlighting.com.
