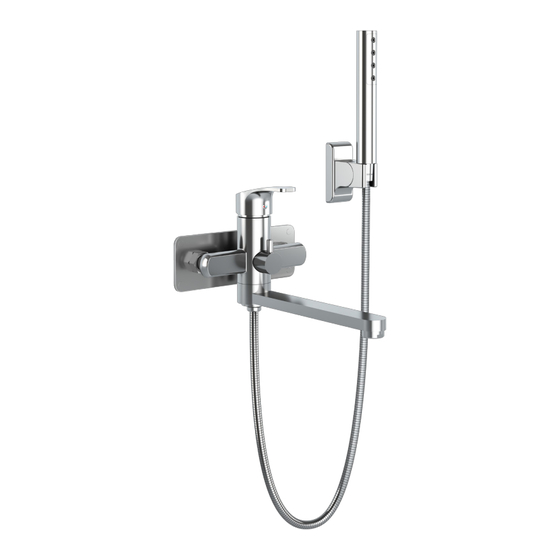

- Page 1 Niagara Wall Mounted Tub Filler Model #3030-WMTF-BN, 3030-WMTF-CH, 3030-WMTF-MB, 3030-WMTF-ORB PW-93030-80TFWBRN, PW-93030-80TFWCP,PW-93030-80TFWBM, PW-93030-80TFWBRZ Owner's Manual...
- Page 2 Wall Mounted Tub Filler Please Read The Following Instructions COMPLETELY Before Beginning! Our goal is to ensure your installation goes smoothly and safely. Please read these instructions carefully and follow recommendations for plumbing and mounting. After reading instructions, if you determine you do not have the necessary skills and/or tools, we recommend that a licensed plumbing contractor complete the installation.
- Page 3 Parts Legend 1. Handle 9. 3/4 NPT Nipple.......2 17. Hose 2. Set Screw 10. Diverter Cartridge 18. Handshower Holder 3. Set Screw Cover 11. Diverter Cartridge Nut 19. Glue 4. Valve Cover 12. Diverter Handle 20. Nuts........4 5. Cartridge Nut 13.
-
Page 4: Before You Begin
Installation Instructions BEFORE YOU BEGIN Measure the following to ensure your tub filler will fit properly. 6 in. Behind wall stud Screw nuts onto nipple until the end is flushed with Make sure the water supply (hot/cold) line is 6 inches the wall. - Page 5 Installation Instructions Tile Trim 0.75” Step 1: Mark trim holes on wall with a pencil. Use a Add anchors and secure trim with the provided screws. level to make sure everything is leveled. Make sure the finished side of the trim in facing outward Tile Trim 0.75”...
- Page 6 Installation Instructions Step 3 Glue Tape Back of handheld holder Step 1 Step 2 Slide washer onto tub filler connection and screw onto nipples. Finished product Add washers to both ends of hose. Connect hex head end to swivel joint (6) and tapered end to handshow- er.
-
Page 7: Operation
Installation Instructions water ON OPERATION: OFF/Cold TUB FILLER FUNCTIONS: HANDSHOWER FUNCTIONS: water ON OFF/Cold Turning tub filler ON, lift valve handle up. For handshower to be OFF the diverter handle should be facing up. The closer to the OFF position, the colder 180°... -
Page 8: Care And Maintenance
Ch e m i c a l s O r A b r a s i ve s ! up to date installation manual. MANUFACTURER'S LIFETIME LIMITED WARRANTY 1. Defects Covered; Warranty Period: Pulse Shower Spas, 5. No Other Warranties; Limitation of Liability: OTHER Inc. (“Pulse”) warrants to the original consumer purchaser THAN THE LIFETIME LIMITED WARRANTY STATED who purchases this shower spa (the “Product”) for use in...
