Lifetime 1111 Assembly Instructions Manual

Netball system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

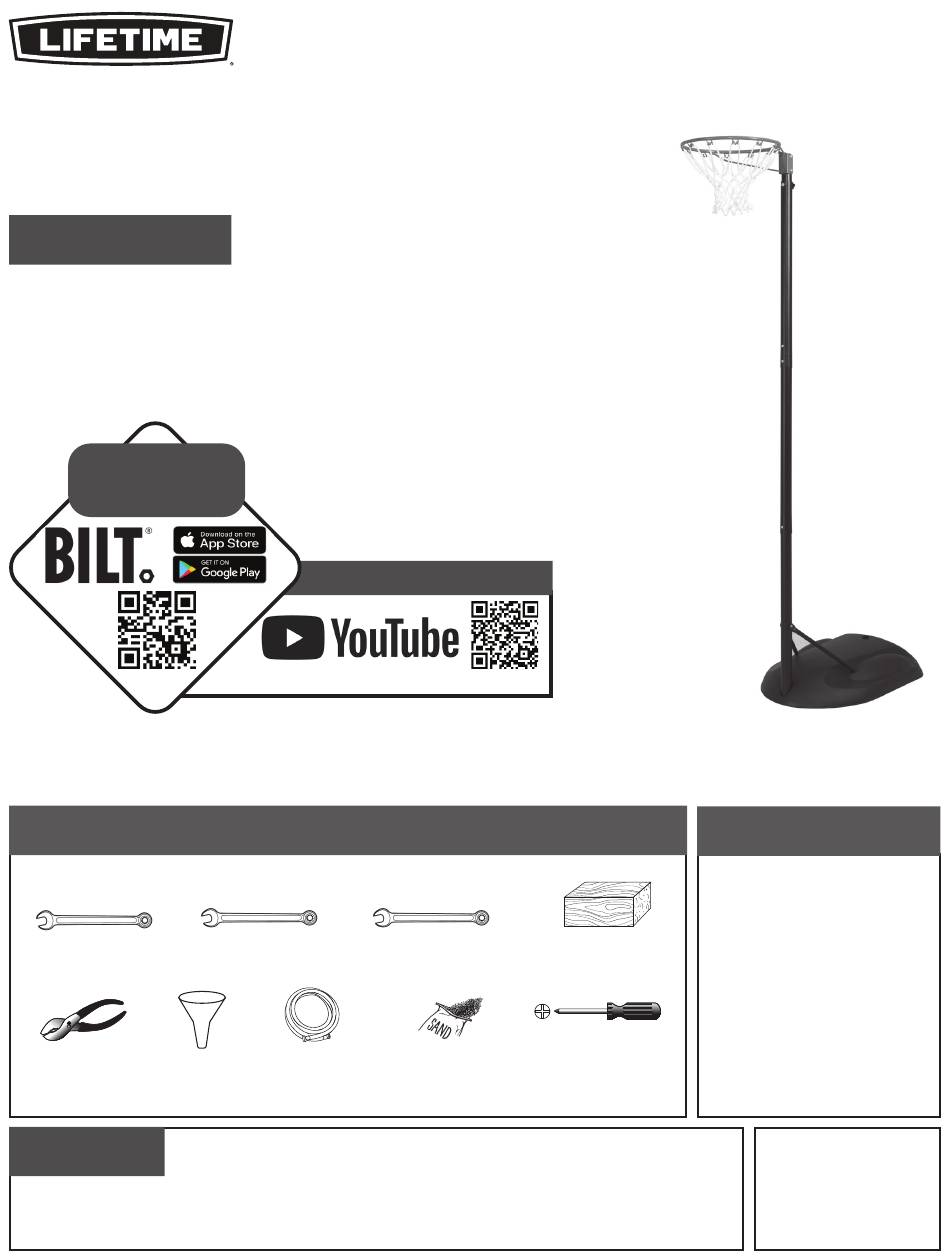

NETBALL
SYSTEM
MODEL 1111
BEFORE ASSEMBLY:
• Decide with what to fi ll the base
(sand is recommended).
• At least 2 adults required to complete
assembly
WATCH
3D ANIMATION
OF THE FULL ASSEMBLY
SCAN THE
CODE
YouTube
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.
Save this instruction in the event that the manufacturer has to be contacted for replacement parts.
TOOLS REQUIRED
1/2" (≈13 mm)
(x2)
(x1)
QUESTIONS?
CONTACT LIFETIME CUSTOMER SERVICE:
Dial 1-800-225-3865
7:00 am-5:00 pm (M-F) MST
and 9:00 am-1:00 pm (Sat) MST
OR WATCH THE HOW-TO ON YOUTUBE
OR SEARCH
1025492
Scan the code, or visit go.lifetime.com/lifetimenetball
and the YouTube logo are trademarks of Google, LLC.
®
7/16" (≈11 mm)
(x1)
(x1)
(x1)
Live Chat:
www.lifetime.com/customerservice
(Click on the "LIVE CHAT" tab)
ASSEMBLY INSTRUCTIONS
9/16" (≈15 mm)
(x1)
120 lb (≈55 kg)
For Customer Service in Mainland
Europe and the United Kingdom,
E-mail: cs@lifetimeproducts.eu

TABLE OF CONTENTS

Icon Legend..................................................................2
Warnings & Notices.....................................................3
Pole Assembly..............................................................4
Pole-to-Base Assembly................................................9
(x1)
Final Assembly...........................................................15
Height Adjustment....................................................19
Moving the System...................................................19
Maintenance.............................................................19
(x1)
Warning Sticker.........................................................20
Registration.............................................................21
Warranty..................................................................22
Model Number: 1111
Product ID:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1111 and is the answer not in the manual?

Questions and answers

Related Manuals for Lifetime 1111

Summary of Contents for Lifetime 1111

  • Page 1: Table Of Contents

    OR WATCH THE HOW-TO ON YOUTUBE SCAN THE OR SEARCH CODE 1025492 Scan the code, or visit go.lifetime.com/lifetimenetball YouTube and the YouTube logo are trademarks of Google, LLC. ® IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY. Save this instruction in the event that the manufacturer has to be contacted for replacement parts.

  • Page 2: Icon Legend

    ICON LEGEND • Indicates special heed should be taken when reading. • Indicates the parts to be used for a section. • Indicates no parts required for a specifi c section. • Indicates the hardware to be used for a section. •...

  • Page 3: Warnings & Notices

    WARNINGS & NOTICES SAFETY INSTRUCTIONS FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN SERIOUS INJURY OR PROPERTY DAMAGE AND WILL VOID WARRANTY. Owner must ensure that all players know and follow these rules for safe operation of the system. To ensure safety, do not attempt to assemble this product without following the instructions carefully. Check entire box and inside all packing material for parts and/or additional instruction material.

  • Page 4: Pole Assembly

    POLE ASSEMBLY HARDWARE REQUIRED Hardware Bag ACL (x1) ADS (x3) ACN (x1) PARTS REQUIRED Metal Parts ALH (x1) ALP (x1) ALO (x1) ALE (x1) TOOLS REQUIRED (x1) Wood Block...
  • Page 5 TOOLS AND HARDWARE REQUIRED • If you have trouble with this section, scan the QR code below to view the assembly video. http://go.lifetime.com/lifetimenetballsec1 POLE SECTION IDENTIFICATION • Identify the pole sections before beginning assembly. Failure to assemble the pole sections correctly may result in severe personal injury or property damage as described on page two.
  • Page 6 à l’anneau, au panneau ni aux leviers sous peine d’endommager la garantía. l’équipement et d’annuler la garantie. www.lifetime.com #FS16400 10/12/2004 • Hold the top pole (ALH) high enough out of the upper middle •...
  • Page 7  SECTION 1 (CONTINUED) TOOLS AND HARDWARE REQUIRED ADS (x2) • Align the hole in the upper middle pole (ALP) with • Align the slot in the bottom pole (ALE) with the the slot in the lower middle pole (ALO) and install the hole in the lower middle pole (ALO) and install the hardware shown.
  • Page 8  SECTION 1 (CONTINUED) TOOLS AND HARDWARE REQUIRED THIS STEP CANNOT BE REVERSED! • Strike the end of the pole assembly on a piece of scrap wood or cardboard fi ve to six times. If the middle pole does not completely cover the slot on the bottom pole after seating, DO NOT COMPLETE ASSEMBLY.

  • Page 9: Pole-To-Base Assembly

    POLE-TO-BASE ASSEMBLY HARDWARE REQUIRED ACU (x1) ACO (x1) AAT (x1) AAF (x1) ABW (x1) AJG (x2) AJB (x2) PARTS REQUIRED Metal Part ALI (x1) ALK (x1) Plastic Parts AMU (x2) AJM (x1) TOOLS REQUIRED 7/16” (≈11 mm) 9/16” (≈15 mm) (x1) (x1)
  • Page 10 • Slide the 4" axle (AJB) into position in both wheels code below to view the assembly video. (AMU). http://go.lifetime.com/lifetimenetballsec2 • Press down over the wheels to snap the axles in • Position the wheels as shown under the back place.
  • Page 11  SECTION 2 (CONTINUED) TOOLS AND HARDWARE REQUIRED • Slide the Right Brace (ALK) into place through the top of the Base, with the fl attened end pointing out toward the front edge as shown. • The right brace is marked with a letter “R”...
  • Page 12  SECTION 2 (CONTINUED) TOOLS AND HARDWARE REQUIRED AJG (x2) • On the underside of the base, slide the 2” axle (AJG) into the end of the right brace (ALK). • Push pole brace forward to snap the axle in •...
  • Page 13  SECTION 2 (CONTINUED) TOOLS AND HARDWARE REQUIRED 7/16” (≈11 mm) ACU (x1) ABW (x1) • Make sure the knob is facing toward the base. Use pliers to hold the T-nut in place as you secure the hardware. Knob • The bolt will not go through the entire width of the pole.
  • Page 14  SECTION 2 (CONTINUED) TOOLS AND HARDWARE REQUIRED 9/16” (≈15 mm) ACO (x1) AAT (x1) AAF (x1) 2.10 • Secure the pole assembly to the base using the hardware shown. • Completely tighten the hardware. WARNING / AVERTISSEMENT / ADVERTENCIA Never put the system in an upright position without proper weight in the Base.

  • Page 15: Parts Identifier

    PARTS IDENTIFIER This page intentionally left blank...
  • Page 16 PARTS IDENTIFIER Metal parts ALH (x1) ALP (x1) ALO (x1) ALE (x1) ALX (x1) Plastic parts AJM (x1) ALK (x1) ALI (x1) AKZ (x1) AMU (x2)
  • Page 17 HARDWARE REQUIRED ACL (x1) ADS (x3) ACN (x1) ACU (x1) ACO (x1) ABW (x1) AAT (x1) AAF (x1) AJG (x2) AJB (x2) AAN (x2) AEC (x4) AZY (x1) BBG (x2)
  • Page 18 PARTS IDENTIFIER This page intentionally left blank...

  • Page 19: Final Assembly

    FINAL ASSEMBLY HARDWARE REQUIRED AAN (x2) AEC (x4) AZY (x1) BBG (x2) PARTS REQUIRED ALX (x1) AKZ (x1) TOOLS REQUIRED 1/2" (≈13 mm) (x2) 120 lb (≈55 kg) (x1) (x1)
  • Page 20 Secure the rim to the pole using the hardware shown. Ensure all system hardware is secure. http://go.lifetime.com/lifetimenetballsec3 • Attach the net (AKZ) to the rim (ALX). If a replacement net is needed, please call our Customer Service Department. Our nets are shorter than average Adjustment to reduce the risk of entanglement.
  • Page 21  SECTION 3 (CONTINUED) TOOLS AND HARDWARE REQUIRED 120 lb (≈55kg) AZY (x1) OPTION A: FILLING THE BASE WITH SAND 3.3a • While one adult holds the pole, use a funnel to add sand through the hole in the top of the base until it is just below the hole (Fig. 1). With the help of a second adult, carefully pull the system up until it is almost upright.
  • Page 22  SECTION 3 (CONTINUED) TOOLS AND HARDWARE REQUIRED AZY (x1) OPTION B: FILLING THE BASE WITH WATER 3.3b • While one adult holds the pole, add water through the hole in the top of the base until it is just below the hole (Fig. 1). Add one tablespoon of chlorine bleach to the water in the base.

  • Page 23: Height Adjustment

    HEIGHT ADJUSTMENT The basketball system may be adjusted from 5 1/2 feet (1.68 m) to 7.5 feet (2.3 m). ONLY ADULTS SHOULD ADJUST THE HEIGHT OF THE SYSTEM. a. Stand behind the system and pull on the pole until the backboard rests on the ground. b.

  • Page 24: Warning Sticker

    à l’anneau, au panneau ni aux leviers sous peine d’endommager y anular la garantía. l’équipement et d’annuler la garantie. Lifetime Products, Inc., Clearfield, UT 84016 www.lifetime.com 1-800-225-3865 4/24/2020 # 1176617...

  • Page 25: Registration

    . And you can rest assured that Lifetime will not sell or provide your personal ® ® data to other third parties, or allow them to use your personal data for their own purposes. We invite you to read our privacy policy at www.lifetime.com REGISTER today!

  • Page 26: Warranty

    2. This warranty is nontransferable and is expressly limited to the repair or replacement of defective product. If the product is defective within the terms of this warranty, Lifetime Products, Inc. will repair or replace defective parts at no cost to the purchaser.
  • Page 27 NOTES...
  • Page 28 ENHANCE YOUR LIFETIME ® PURCHASE BY ADDING ACCESSORIES OR OTHER GREAT PRODUCTS To purchase accessories or other Lifetime products, visit us at: ® www.lifetime.com Or call: 1-800-424-3865 8/19/2022 1222045 C...
