ORiNG IMG-4312D+-D4G Quick Start Manual

Features
Compact size industrial M2M gateway for remote access,

data collection and end-devices control applications suitable
for multiple IoT Cloud Platform interfaces
Support LTE Cat. 4 with up to 150Mbps downlink and

50Mbps uplink data rates
Support dual mini SIM card slot

Support 2x 10/100Base-T(x) Ethernet ports

Support 1x RS-232/422/485 Serial port in DB9 connector

Support 1x DI and 1x DO

Support High Speed Wireless Connectivity: 802.11 b/g/n

WLAN Wi-Fi interface with up to 150Mbps bandwidth
Support ORing Open Gateway (protocol converter)

software feature for user-friendly IIoT deployment
Support ORing Cloud Wizard feature for easy and quick

step-by-step device provisioning
Support Modbus TCP/RTU industrial protocols

Support MQTT/MQTT Sparkplug B/CoAP/LWM2M Cloud

protocols
Support DHCP server and forwarding through PPTP function

Support VPN for secured network connection (OpenVPN,

PPTP, IPSec)
Support NAT (Network Address Translation)

Support Firewall features

Event warning by System logs, SNMP Trap, E-mail and SMS

Redundant multiple host devices:

5 host devices: Virtual COM, TCP Server, TCP Client mode,
UDP mode (4 IP Ranges)
Redundant 12~48VDC power input in terminal block

PoE power input available with 1kV isolation

Rugged IP-30 casing design and wide operating temperature

range for harsh environment operation
DIN Rail and Wall mounting types

Support OpenWRT SDK for project customization

Industrial IoT LTE Gateway with IEEE 802.11 b/g/n
and 2x10/100Base-T(X), 1xRS-232/422/485 ports
Designed for Rugged Excellence

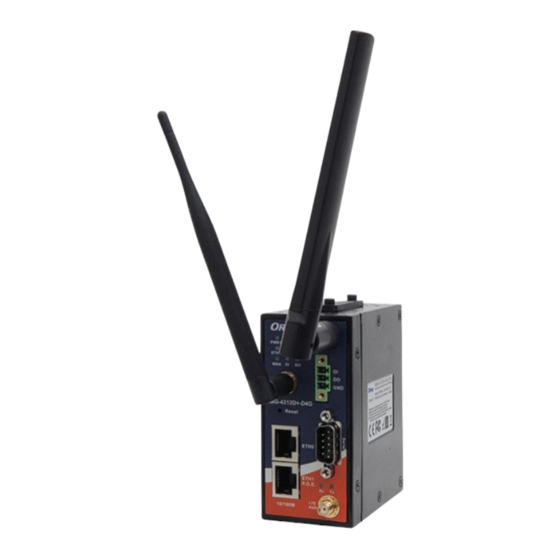

IMG-4312D+-D4G
* All specifications are subject to change without notice.
V1.2 March 2020
