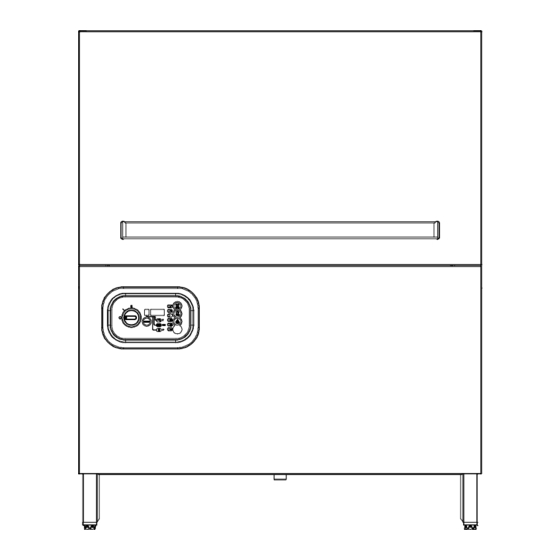

- Page 1 INSTRUCTION MANUAL DISHWASHING Mod. Mod. Mod. Mod. RT200...
-
Page 3: Table Of Contents
instruction for the user INDEX Introduction ..........................5 INSTRUCTIONS FOR USE ....................7 Notes before washing ......................8 Operation and use .......................8 Switching on ........................8 Washing..........................9 Instruction during washing ....................9 Instruction after the washing session.................10 Useful advice ........................10 Maintenance ........................10 Hygienic care ........................11 Removal of lime scale encrustation’s ................11 Optimum results.........................11 Prolonged standstill of the machine...................11... - Page 4 instruction for the user...
-
Page 5: Introduction
instruction for the user INTRODUCTION 1. Please read carefully the remarks contained in this manual, as they confirm important information for the correct installation, use and maintenance. Keep this manual for future reference by the staff. 2. After removal of the packing, check the machine is not damaged and is complete. In case of any doubt, do not use the machine and contact the service technician. - Page 6 instruction for the user...
-
Page 7: Instructions For Use
instruction for the user INSTRUCTIONS FOR USE... -
Page 8: Notes Before Washing
instruction for the user NOTES BEFORE WASHING 1)Make sure that: • wall isolating switch is connected • water and steam taps* are open • there is no lack of water and steam* in the supply net • tank and pump suction filters are clean and are located correctly •... -
Page 9: Washing
instruction for the user WASHING 1) Before starting the wash operations remove from the dishes all possible food leftovers and grease. 2) Pre-soak cutlery and also any dishes before washing, if they have been left for some time after being used. 3) Place the items to be washed in the baskets. -
Page 10: Instruction After The Washing Session
instruction for the user INSTRUCTION AFTER THE WASHING SESSION When the wash operations are complete: 1. Press button "S1" and turn switch "Q2" into position "O" to switch off the machine. 2. Isolate the machine by means of the wall switch and close the water valve and steam supply (this applies only to steam heating machines). -
Page 11: Hygienic Care
instruction for the user Ensure the procedures and frequency recommended by the detergent supplier are followed, also ensure that the correct products and equipment are used. In order to avoid damages to the machine, do not exceed the recommended dosing and at the end of the procedures, rinse thoroughly. -
Page 12: Self Cleaning (Optional)
instruction for the user Self cleaning (optional) At least once a week a thorough cleaning of the machine is necessary. For this purpose a specific detergent/disinfectant is advisable. The use of such a product offers the following advantages: • guarantee of perfect hygienic conditions as it is composed of active detergents and disinfectants •... -
Page 13: Motor Protection
instruction for the user Motor protection Each motor is protected against overload by overload relays QF1, QF2..placed in the control box (see electric diagram). Lamp "H03" is on, if one of the overload relays is activated. In this case the machine must be switched off and qualified staff are to be contacted for the repair work. -
Page 14: Instruction For Installation And Maintenance
instruction for the service people INSTRUCTION FOR INSTALLATION AND MAINTENANCE The following instructions are for qualified staff, who are authorised to carry out inspections and repair work, if necessary. The manufacturer declines all liability for damages due to incorrect installation or any repairs when original spare parts have not been used. -
Page 15: Location
instruction for the service people LOCATION The machine has to be installed in a “normal” room or environment, which is adequately ventilated, dust free, well illuminated and without risk of explosion. INSTALLATION AND CONNECTIONS The installation of the dishwasher requires previously prepared supplies for the electrical and hydraulic connections, as indicated on the enclosed installation plan and data plates which refer to the model of your choice. - Page 16 instruction for the service people The machine must be included in an equipotential system, whose efficiency has to be checked according to the valid standard. The connection is made by means of a screw with the identification fitted to the back of the machine. The manufacturer declines all liability for damages due to the lack of an efficient earth bonded installation.
-
Page 17: Hot Water Connection (B)
instruction for the service people HOT WATER CONNECTION (B A water valve has to be provided in an easily accessible position, to which the inlet filter has to be connected. For dimensions of the valve please refer to installation drawing. Strictly observe the national and regional water board regulations in force. -
Page 18: Steam Elimination
instruction for the service people STEAM ELIMINATION For machines with splash-guard protection with collar or machines with heat recovery unit, connections are to be effected according to fig.5. BEFORE STARTING THE MACHINE • The boiler circuit breaker QFE10 (and QFE11) has to be open (position OFF). Before reactivating it, check, after having switched on the machine that the boiler is full of water by making sure that water is coming out of the rinsing nozzles. -
Page 19: Setting
instruction for the service people SETTING Torque limiter The limiter has already been described in paragraph “SAFETY DEVICES”. It is placed on the drive shaft and is adjusted during the commissioning of the machine. Should new adjustments be necessary, proceed as follows: 1) Switch off the machine 2) Remove protective panel 3) Load the exit table with full dishes racks up to approx. -
Page 20: Some Problems Which May Occur During The Use Of The Dishwasher, Their Reasons And Remedies
instruction for the service people SOME PROBLEMS WHICH MAY OCCUR DURING THE USE OF THE DISHWASHER, THEIR REASONS AND REMEDIES PROBLEMS TROUBLE SHOOTING When switching on the machine, a)make sure that the wall isolating switch is Lamp "H01" does not light up making contact and the relevant fuses are not burnt. - Page 21 instruction for the service people PROBLEMS TROUBLE SHOOTING c)make sure that no dirt has accumulated in the solenoid valve. This defect causes the machine to fill also when the main switch is switched off. d)in case the tank remains full for many hours (e.g.
- Page 22 instruction for the service people PROBLEMS TROUBLE SHOOTING Insufficient tank temperature a)make sure that the thermostat is not damaged. b)make sure that the water supply temperature is as prescribed (50/55°C) c)check that the fuses and the coils f the contactor relating to the heating elements are not interrupted (only for machines with electric heating).
- Page 23 instruction for the service people PROBLEMS TROUBLE SHOOTING e)the boiler is not encrusted in any way as to limit the water flow. Insufficient rinse temperature a)make sure that the temperature of the supply is that prescribed 50/55°C. b)make sure that the thermostat "ST10" is adjusted to the correct temperature.
- Page 24 instruction for the service people PROBLEMS TROUBLE SHOOTING Machine with steam heating make sure that the steam valve is open and that there is steam at a pressure not less 0,5 bar (50 kPa) make sure that the filter of the condense trap is not blocked make sure that the steam solenoid valve "YV10"...
- Page 25 RT200 RT200 RT200 RT200 06.2012...
