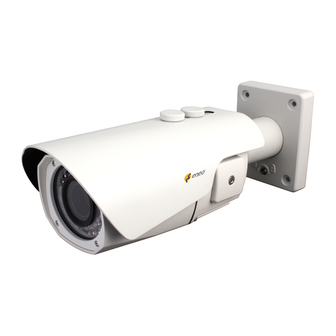

- Page 1 User Manual 1/3” Camera, Day&Night, Effio A, 750TVL, D-WDR, Infrared, 12/24V, IP67 VKC-13130F2810IR (2.8-10mm) VKC-13130F650IR (6-50mm)
-
Page 3: Safety Precaution
ULTRA CLEAR RESOLUTION CAMERA Safety Precaution To prevent fire or shock hazard, do not expose the unit to rain or moisture. To prevent electric shocks and risk of fire hazards, do NOT use other than specific power source. CAUTION: TO REDUCE THE RISK OF ELECTIC SHOCK, DO NOT REMOVE COVER (OR BACK). - Page 4 ULTRA CLEAR RESOLUTION CAMERA Safety Precaution NOTICE The image used in this instruction manual are processed to help comprehension and may differ from actual appearance of the camera. Avoid installing areas where has shock or vibration which results in the problems. Pay attention to safety when laying the connection cable and observe that the cable is not subjected to heavy loads, kinks or damage and no moisture can get in.
-
Page 5: Table Of Contents
ULTRA CLEAR RESOLUTION CAMERA Contents p.03~04 Safety Precaution p.05 Contents p.06 Features p.07 Composition p.08 Dimensions p.09 Part Names p.10~12 Installation Instructions p.13~32 Operating Instructions p.33 Specifications... -
Page 6: Features
• 750TVL High-Resolution • D-WDR by ATR-EX • TDN with Dual Filter Switcher • VKC-13130F2810IR: Built-in f=2.8~10mm F1.4 Mega pixel DC Auto Iris Vari-focal Lens VKC-13130F650IR: f=6~50mm F1.4 DC Auto Iris vari-focal lens • Improved noise reduction 2D+3DNR • Improved IR-Optimizer •... -
Page 7: Composition
ULTRA CLEAR RESOLUTION CAMERA Composition Camera Operating Instruction Mounting Template Plastic Anchor: 6 x 30mm (4pcs) Easy Bracket Mounting Screw: 4 x 30mm (4pcs) Assembly Screw: 4 x 14mm (4pcs) Video Sub-out Cable (1pc) Torque Wrench: 3mm (1pc) -
Page 8: Dimensions
ULTRA CLEAR RESOLUTION CAMERA Dimensions (unit : mm) 87.30... -
Page 9: Part Names
ULTRA CLEAR RESOLUTION CAMERA Part Names SUNSHIELD BOLT SUNSHIELD POWER CABLE OSD Setup CONTROL COVER DUAL WINDOW EASY BRACKET REAR CASE FRONT CASE BRACKET REAR VIEW FOCUS ZOOM... -
Page 10: Installation Instructions
ULTRA CLEAR RESOLUTION CAMERA Installation Instructions 1. Locate the mounting template at the installation position and drill the ceiling or wall if needed. ( *The easy bracket can not be installed on the ceiling) 2. Place the easy bracket on pre-drilled position and fix it through using mounting screws (4x30mm). - Page 11 ULTRA CLEAR RESOLUTION CAMERA Installation Instructions Pan & Tilt adjustments • Unlock the screw on the camera bracket through using the torque wrench supplied • Set the camera’s viewing angle then lock the screw on the bracket. 1) Pan limit: Pan is limited to +/- 90°.
- Page 12 ULTRA CLEAR RESOLUTION CAMERA Installation Instructions Installation and commissioning Instructions • Make sure the power is removed before the installation. • Follow the order for applying power. First, connect the low voltage (AC24V or DC12V), then plug the AC adapter to AC outlets to avoid an improper reset from power jitter and a damage from the surge voltage when no load.
-
Page 13: Operating Instructions
ULTRA CLEAR RESOLUTION CAMERA Operating Instructions Using OSD controller Setup menu can be accessed and controlled by OSD control joy stick on the side of camera unit. Five commands are available with the joy stick. The design of OSD could be different according to the Model. Cover Open SUB-OUT OSD Control... - Page 14 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions OSD menu Startup Press the ‘OSD menu SET key’ down to access the setup menu mode. • : Selects previous page or next page. • EXIT : Enters ‘EXIT’ menu. • RETURN : Returns to the previous menu. SETUP MENU SETUP MENU 1 / 2...
- Page 15 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions WDR for V-Series, ATR-EX for A-Series WDR / ATR-EX SCENE SELECT LEVEL AUTO DAY/NIGHT BURST CNTL SIGNAL EXT1 DELAY CNT DAY->NIGHT NIGHT->DAY IR OPTIMIZER MODE AUTO IR AREA LEVEL IR LED DAY/NIGHT COLOR NIGHT ON/OFF OFF (default) LENS SHD COMP...
- Page 16 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions PRIVACY MASK TRANSP MOSAIC MOTION DET DETECT SENSE INTERVAL BLOCK DISP MASK AREA MONITOR AREA AREA SEL AREA MODE BOTTOM LEFT RIGHT TYPE LENS AUTO SYS SETTING MODE AUTO ADJUST SPEED FLIP OFF / V / H / HV LCD / CRT COMMUNICATION* PROTOCOL...
- Page 17 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions OSD menu Setup Press the OSD menu SET key down to access the setup menu mode. SETUP MENU ADVANCED MENU 1 / 2 1 / 2 FULL AUTO SCENE SELECT AUTO SHUTTER/AGC PICT ADJUST WHITE BAL EZOOM HLC/BLC...
- Page 18 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 1-1-3. FIX Video level is fixed in any conditions by the setting of SHUTTER, AGC MAX. 1-2. WHITE BAL Can set the WHITE BALANCE mode. 1-2-1. ATW (Auto Trace White Balance): Automatically tracks the changes of color temperature and continuously adjusts the white balance.
- Page 19 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions > INDOOR : Optimized for Indoor installation and more easily compensates ATW for low color temperature such as incandescent lights. > SUNNY : Optimized for outdoor sunlight applications and more easily compensates ATW for high color temperature such as sunlight. >...
- Page 20 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 1-3-2. HLC: HLC clips out the highlight area and masks it as black color. Video will be clipped out and masked for the area which exceeds CLIP LEVEL. • CLIP LEVEL (default: 10): Defines the threshold level for HLC. Lower value masks more. 1-3-3.
- Page 21 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 1-6. DAY/NIGHT This function is used to control the setting during day-time and night-time operation. 1-6-1. AUTO AUTO mode in DAY/NIGHT is used only for a camera which does not have a light sensor. Camera switches DAY from/to NIGHT automatically along with the amount of light through the lens.
- Page 22 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions • NIGHT -> DAY (default: 120) NIGHT→DAY is a threshold level which determines to switch from NIGHT to DAY. Lower(Higher) value makes the camera switched from Night to Day at lower (higher) illumination. If it stays in Night(B/W) mode at day time, decrease NIGHT-> DAY threshold value until it just switches to Day * Examine and verify Day/Night operation according to IMPORTANT ACTIVITY 1-6-2.
- Page 23 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 1-7. IR OPTIMIZER This function is effective built-in LED models in NIGHT mode only. If subjects which can cause overexposure are located near the monitored area, you can adjust IR OPTIMIZER level or area. IR OPTIMIZER SETUP IR LED AUTO AUTO...
- Page 24 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 1-8. LENS SHD COMP (default: OFF) This function is used to caculate the compensation data for lens shading. Convex shape of the lens causes the light to enter the camera unevenly and typically makes the center of the screen brighter than the rest. It is used to compensate for this undesirable effect and make the screen more even.
- Page 25 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 2-1. BRIGHTNESS (default: 120): Increases or decreases the brightness of the picture. This is different from that of DC iris lens and simply increases or decreases the digital gain of video. Do not increase this too much, the dynamic range for the highlight area will decrease.
- Page 26 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 5. PRIVACY MASK Sets ON/OFF for enabling/disabling PRIVACY. Up to 15 privacy areas are available and each area is programmable in size and location. The number of privacy areas is limited to four when MOTION DET > MONITOR AREA is ON.
- Page 27 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 6. MOTION DET Up to 4 motion detection areas are available and each area is programmable in size and location. The motion is displayed by means of blocks when MOTION DET and MOTION DET>BLOCK DISP are ON. MOTION DETECTION DETECT SENSE INTERVAL...
- Page 28 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 6-5. MONITOR AREA Sets the MOTION DETECTION area on screen. MONITOR AREA AREA SEL AREA MODE BOTTOM LEFT RIGHT RETURN 6-5-1. AREA SEL (default: 1/4) : Selects one of AREA1~AREA4 to be adjusted. Each area is displayed with the color. AREA1-Red, AREA2-Green, AREA3- Blue, AREA4-Yellow 6-5-2.
- Page 29 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 7-1. LENS Selects the lens type, AUTO or MANUAL. AUTO supports DC auto-iris lens only. 7-1-1. AUTO • TYPE (default: DC): This camera does NOT support video type auto iris lens. MUST BE SET TO DC ONLY. •...
- Page 30 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 7-4. CAMERA ID Sets ON/OFF for enabling/disabling of ID display. Factory default ID is Software version of camera. User programmed camera ID will be lost and restored with factory default ID by CAMERA RESET. Up to 40 characters can be input for camera ID.
- Page 31 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 10. MAINTENANCE Sets the OSD menu user environments and Camera reset. MAINTENANCE MANUAL W.PIX MASK CAMERA RESET RETURN 10-1-1. MANUAL COMP : Setting for white pixel(defective pixels) compensation manually. • REGISTRATION : Detects each white pixel using the cursor. •...
- Page 32 ULTRA CLEAR RESOLUTION CAMERA Operating Instructions 10-2. CAMERA RESET This function is used to reset to the factory defaults of the camera settings. 11. EXIT Exits SETUP MENU and returns to the normal display. 11-1. SAVE : Save all the setting before exit the setup menu. 11-2.
-
Page 33: Specifications
ULTRA CLEAR RESOLUTION CAMERA Specifications ITEM 210067 VKC-13130F2810IR / 210070 VKC-13130F650IR Imaging Sensor 1/3" High density Sony CCD (960H) Effective Pixels 976(H) x 582(V) Scan Frequency 50Hz(V), 15.625Khz(H) 2:1 Interlace Synchronization Internal H. Resolution 750TV Lines Sensitivity 0.0005 Lux (Sens-up Off) - Page 36 VIDEOR E. Hartig GmbH Exclusive distribution through specialised trade channels only. VIDEOR E. Hartig GmbH Carl-Zeiss-Straße 8 63322 Rödermark/Germany Tel. +49 (0) 6074 / 888-0 Technical changes reserved Fax +49 (0) 6074 / 888-100 www.videor.com...
