July, 2021
WVY5448
WAVERLY WORK SMART

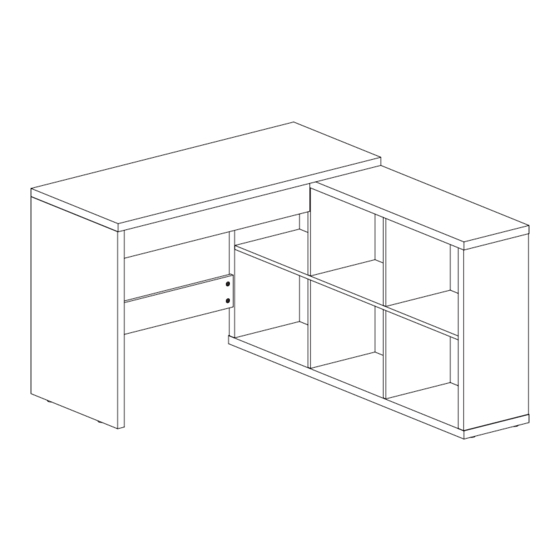

SIT-TO-STAND DESK
®
*PATENT PENDING
Assembly Instructions - Important:
Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when
assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or
information on other products, please visit our website: www.officestar.net or call or write us.
Advertisement
Related Manuals for OSP Home Furnishings WAVERLY WORK SMART WVY5448
Summary of Contents for OSP Home Furnishings WAVERLY WORK SMART WVY5448
- Page 1 July, 2021 WVY5448 WAVERLY WORK SMART SIT-TO-STAND DESK ® *PATENT PENDING Assembly Instructions - Important: Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or information on other products, please visit our website: www.officestar.net or call or write us.
- Page 2 STOP: Read these instructions carefully and keep with the product for future reference. If this product is passed on to a third party, then these instructions must be included. When using this product, basic safety precautions should always be followed to reduce the risk of injury Including the following: • A competent adult must assemble this product • Keep children and pets away while assembling this product...
- Page 3 Monday through Friday 8:00 a.m. - 3:30 p.m. Pacific Time. To make a warranty claim, contact Parts Department. Provide model number, proof of purchase, description of the problem and obtain return authorization. At its option OSP Home Furnishings will: (a) Supply compatible ®...
- Page 4 PARTS (A) Desk Top (1 PC) (B) Cabinet Top Panel (1 PC) (D) Cabinet Right Side Panel (1 PC) (C) Desk Lift Side Panel (1 PC) (F) Cabinet Shelf Panel (1 PC) (E) Cabinet Left Side Panel (1 PC) (H) Cabinet Divider Panel (3 PCS) (G) Cabinet Bottom Panel (1 PC) (J) Cross Panel (1 PC) (I) Cabinet Divider Panel-2 (1 PC)
-
Page 5: Hardware List
HARDWARE LIST DRAWING DESCRIPTION SIZE QUANTITY Nail 30 PCS + 2 Extra Screw #6 x 41/2” 8 PCS + 1 Extra Screw #10 x 1-1/2” 4 PCS Screw #10 x 2” 8 PCS + 1 Extra Bolt M6 x 30mm 2 PCS 24 PCS + 2 Extra Cam Screw... - Page 6 CAM LOCK INSTALLATION Screw in Cam Screw. Fully Tighten. Align hole in panel with Cam Screw. Attach. Screw Cam Nut in. Turn clock-wise until you feel 180° Cam Nut securely fasten to Cam Screw. Fully tighten Cam Nut.
- Page 7 STEP 1 FULLY TIGHTEN ALL CAM SCREWS (6) STEP 2...
- Page 8 STEP 3 STEP 4 FULLY TIGHTEN ALL CAM SCREWS (6)
- Page 9 STEP 5 FULLY TIGHTEN ALL CAM SCREWS (6) STEP 6 FULLY TIGHTEN ALL CAM SCREWS (6)
- Page 10 STEP 7 FULLY TIGHTEN ALL SCREWS (3) STEP 8 FULLY TIGHTEN ALL CAM NUTS (7)
- Page 11 STEP 9 FULLY TIGHTEN ALL CAM NUTS (7) STEP 10 FULLY TIGHTEN ALL SCREWS (4)
- Page 12 STEP 11 FULLY TIGHTEN ALL CAM NUTS (7) STEP 12 FULLY TIGHTEN ALL CAM SCREWS (6)
- Page 13 STEP 13 FULLY TIGHTEN ALL SCREWS (2) STEP 14 FULLY TIGHTEN ALL CAM NUTS (7)
- Page 14 STEP 15 FULLY TIGHTEN ALL SCREWS (2) STEP 16 GENTY TAP NAILS (1) IN UNTIL FLUSH...
