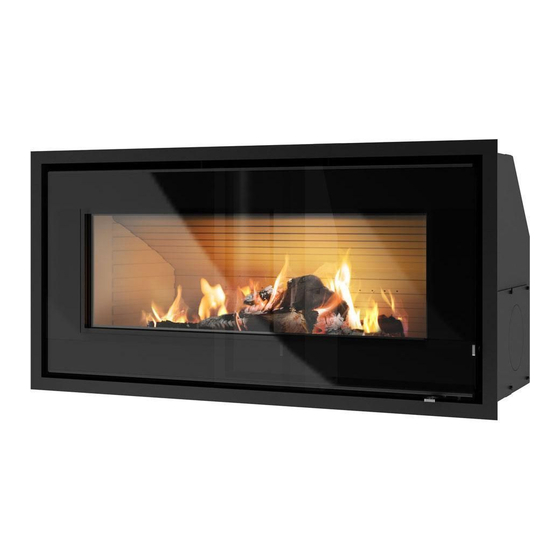

RAIS 900 User Manual

Hide thumbs Also See for 900:
Table of Contents

Advertisement

Quick Links

Download this manual
Dansk
RAIS - Brugermanual til RAIS 900
B R U G E R M A N U A L
U S E R M A N U A L
B R U K E R V E I L E D N I N G
B R U K S A N V I S N I N G
K Ä Y T T Ö O H J E
M A N U A L D ' U T I L I S AT I O N
G E B R U I K E R S H A N D L E I D I N G
R A I S 9 0 0
1

Advertisement

Table of Contents
loading

Related Manuals for RAIS 900

Summary of Contents for RAIS 900

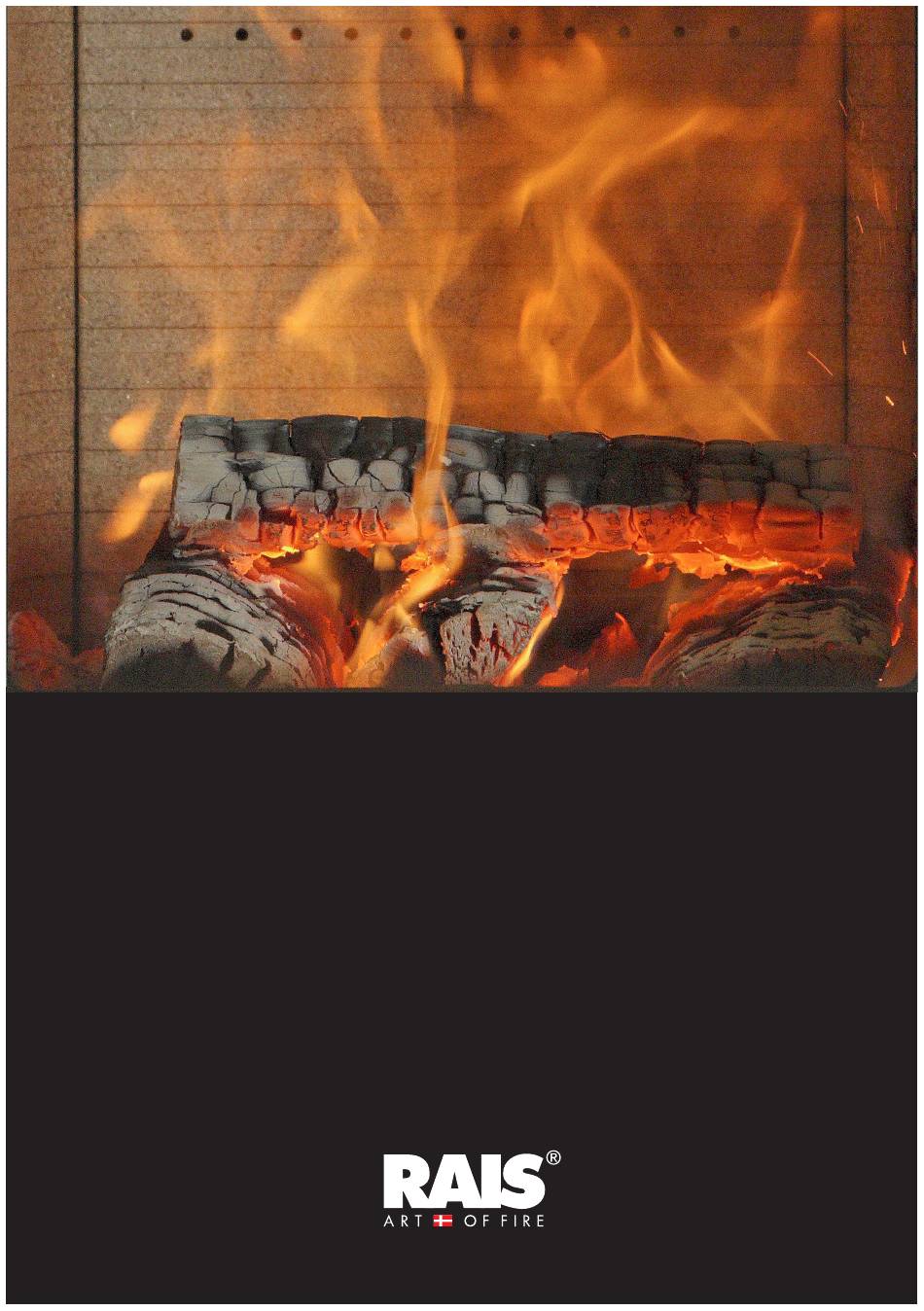

  • Page 1 Dansk RAIS - Brugermanual til RAIS 900 B R U G E R M A N U A L U S E R M A N U A L B R U K E R V E I L E D N I N G B R U K S A N V I S N I N G K Ä...
  • Page 2 FR: BOIS Foyer à durèe de combustion limitèe, homologué pour cheminée à connexions multiples. Utiliser seulement les combustibles recommandés. Hergestellt für /Produced for: ATTIKA FEUER AG, Brunnmatt 16, CH-6330 Cham / RAIS A/S, Industrivej 20, DK-9900 Frederikshavn 15a B-VG VKF-NR: xxxxx...
  • Page 3 Brug af brændeovn / Using the wood burning stove / Bruk av peisovn Använda kaminen / Tulisijan käyttäminen / Utilisation du poêle / Gebruik van de kachel. Position Posisjon Positionen Asento Positie Position Posisjon Positionen Asento Positie Position Posisjon Positionen Asento Positie...
  • Page 4 Reservedelstegning / Spare parts / Reservdelsritning / Varosapiitokset Dessin des pièces de reghange / Tekeningen van reserveonderdelen...
  • Page 5 FIRE ENVIRONMENTALLY FRIENDLY! 5 Eco-friendly advices for sensible heating - common sense both environmentally and economically. 1. Effective lighting. Use small pieces of wood (fir tree) and a suitable fire lighter, for example paraffined wood wool/saw- dust. Open the air damper, so plenty of air is fed to the stove and the gases from the heated wood can burn rapidly.

  • Page 6: Table Of Contents

    English RAIS - User manual for RAIS 900 RAIS 900 Revision: 3 Dato : 24-10-2018 INTRODUCTION ......................30 WARRANTY ........................31 SPECIFICATIONS ......................32 INSTALLATIONS INSTRUCTIONS..................33 CONVECTION ......................34 CHIMNEY ........................34 VENTILATION / HEAT TRANSFER ...................36 INSTALLATION .......................37-38 MOUNTING DISTANCE / WALL OPENING ..............39-44 FUEL ...........................45...

  • Page 7: Introduction

    These appliances have been approved by HETAS Ltd as intermittent operating appliances for burning wood logs only. A RAIS wood burning stove is more than just a heat source: it also shows that you care about design and quality in your home.

  • Page 8: Warranty

    English RAIS - User manual for RAIS 900 WARRANTY RAIS – wood-burning stoves are tested repeatedly in terms of safety, as well as material and manufacturing quality. We grant warranty on all models, starting with the date of installation. The warranty refers to: •...

  • Page 9: Specifications

    English RAIS - User manual for RAIS 900 Specifications RAIS 900 Nominell output (kW): Min./Max. output(kW): 5 - 9 Heating area (m ca. 75 - 135 Stove’s width/depth/height (mm): 962 / 380 / 470 Combustion champer’s width/depth/height (mm): 700 / 200 / 230 Recommended amount of wood when fuelling (kg): (Distributed on 2-3 logs of wood approx.

  • Page 10: Installations Instructions

    English RAIS - User manual for RAIS 900 Installation instructions The following pages give instructions for the safe and proper installation of this heating appliance in the UK. These instructions cover the basic principles of installation, although detail may need slight modification to suit particular local site conditions. In all cases the installation must comply with current UK Building Regulations, Local Authority Byelaws and other specifications or regulations as they affect the installation of the stove.

  • Page 11: Convection

    The stoves are equipped with “cold” door handles – RAIS special feature – which means you could almost do away with gloves. Be aware, however, that all exterior surfaces be- come hot during use - so take extreme care.
  • Page 12 If, at any time, you are unsure about the condition of the chimney, you should contact a chimney sweep. Remember that access to the access door should be kept clear. NB!! RAIS A/S recommends that the stove installed by a licensed / qualified installer. Ask your dealer for details.

  • Page 13: Ventilation/Heat Transfer

    This is due to the ascending hot air. RAIS accepts no liability for installation or consequential damages. Material selection Choose materials for panels/bricks with a thermal resistance greater than 0.03 m xK/W.

  • Page 14: Installation

    When you choose where to set up your RAIS wood burning stove, you should consider the heat distribution to the other rooms. This will enable you to get the best use out of your stove.
  • Page 15 English RAIS - User manual for RAIS 900 It is important that there are no leakage between the flue pipe and the stove. It is re- commended to seal the connection by suitable gasket or compound. Install the insulated flue pipe and connect to chimney.

  • Page 16: Mounting Distance / Wall Opening

    English RAIS - User manual for RAIS 900 Mounting distance for panelled wall - combustible material Fermacel 13 With convection above and below the stove NB!! To guide the hot air out of the Convection area above the stove: Insulated chimney gratings, install a non-combustible min 400 cm²...
  • Page 17 English RAIS - User manual for RAIS 900 Mounting distance for panelled wall - combustible material Fermacel 13 Without convection above and below the stove NB!! 30 mm fire batt Insulated chimney down to the smoke Non-flammable plate connector. (must be mounted)
  • Page 18 English RAIS - User manual for RAIS 900 Mounting distance - Super isol 50 mm With convection above and below the stove NB!! To guide the hot air out Convection area above the stove: Insulated chimney of the gratings, install a Min.
  • Page 19 English RAIS - User manual for RAIS 900 Mounting distance - Super isol 50 mm Without convection above and below the stove NB!! 30 mm fire batt Insulated chimney down to the smoke Non-flammable plate connector. (must be mounted) (not included) Distance min.
  • Page 20 English RAIS - User manual for RAIS 900 Mounting distance - Brick wall With convection above and below the stove To guide the hot air out of Recommended convection area the gratings, install a above the stove: min. 400 cm²...
  • Page 21 English RAIS - User manual for RAIS 900 Wall opening - (height x width) Min. 479 x 972 Max. 496 x 992 A wood burner insert should never fit tightly, Steel expands when heated. Fermacel 13 Super isol Brick...

  • Page 22: Fuel

    English RAIS - User manual for RAIS 900 Operating instructions Please note that HETAS Ltd Appliance Approval only covers the use of dry sea- soned wood logs on this appliance. HETAS Ltd Approval does not cover the use of other fuels either alone or mixed with the wood logs, nor does it cover instruc-...

  • Page 23: Regulation Of Combustion Air

    2-3 days before you need it. Regulating the combustion air All RAIS stoves are equipped with a one-handed operating lever for regulating the damp- er. The stove-specific regulating mechanisms can be seen on the diagrams. Primary air is the combustion air added to the primary combustion zone, i.e. the bed of glowing embers.

  • Page 24: Using The Wood Burning Stove

    English RAIS - User manual for RAIS 900 Using the wood burning stove Adjustment of the air damper - the damper has 3 settings Position 1 The damper is almost closed meaning that there is a minimal air intake. Position 2 Pull the lever until first click.

  • Page 25: First Usage

    English RAIS - User manual for RAIS 900 First usage A careful start pays off. Start with a small fire, so that the wood burning stove can get accustomed to the high temperature. This gives the best start and any damage is avoided.
  • Page 26 English RAIS - User manual for RAIS 900...

  • Page 27: Lighting And Fuelling

    English RAIS - User manual for RAIS 900 Lighting and fuelling NOTE : If airsystem is connected, the valve must be open. TIPS before firing up: Open a door or window close to the wood burning stove. If there is a “storm” in the stove coming from the chimney, it is advisable to place a screwed-up piece of newspaper between the upper baffle plate and the chimney, set the paper on fire, and wait until you hear a “rumbling”...

  • Page 28: Cleaning And Care

    English RAIS - User manual for RAIS 900 Cleaning and care During cleaning and care, the stove must be cold. Woodstoves should be serviced every summer so they are ready for the winter season. Grates, firebricks, baffles, rope seals should all be checked that they are in good condition, Chimney and flues should be swept at least once a year, some liner manufacturers require their to be swept twice a year.

  • Page 29: Cleaning Of The Flue Ways

    English RAIS - User manual for RAIS 900 Cleaning of the flue ways The flue ways are consist of a baffle plate and a smoke conductor above. This parts are screwed together. Both parts are made of vermaculite. Handle these parts carefully.

  • Page 30: Interruption Of Operation

    - unclean smoke channels - leaky chimney - leakage between chimney and flue If your stove continues to malfunction, we recommend that you contact your RAIS dis- tributor or chimney sweep. IMPORTANT!! To ensure safe burning there must be clear yellow flames or clear embers at all times.

  • Page 31: Accessories And Spare Parts

    English RAIS - User manual for RAIS 900 Accessories and spare parts If spare parts other than those resommended by RAIS are used, the warranty is voided. 9111790 Air-box 7091301SV Special adapter 91114Spec Special cover 911140590 Special frame vertical - set Spare parts RAIS 900 If spare parts other than those recommended by RAIS are used, the warranty is voided.
  • Page 32 RAIS A/S Industrivej 20 DK-9900 Frederikshavn www.rais.dk...
