Quick Start
Thank you for purchasing the MSI®
Start section provides demonstration diagrams about how to install your computer.
Some of the installations also provide video demonstrations. Please link to the URL to
watch it with the web browser on your phone or tablet. You may have even link to the
URL by scanning the QR code.

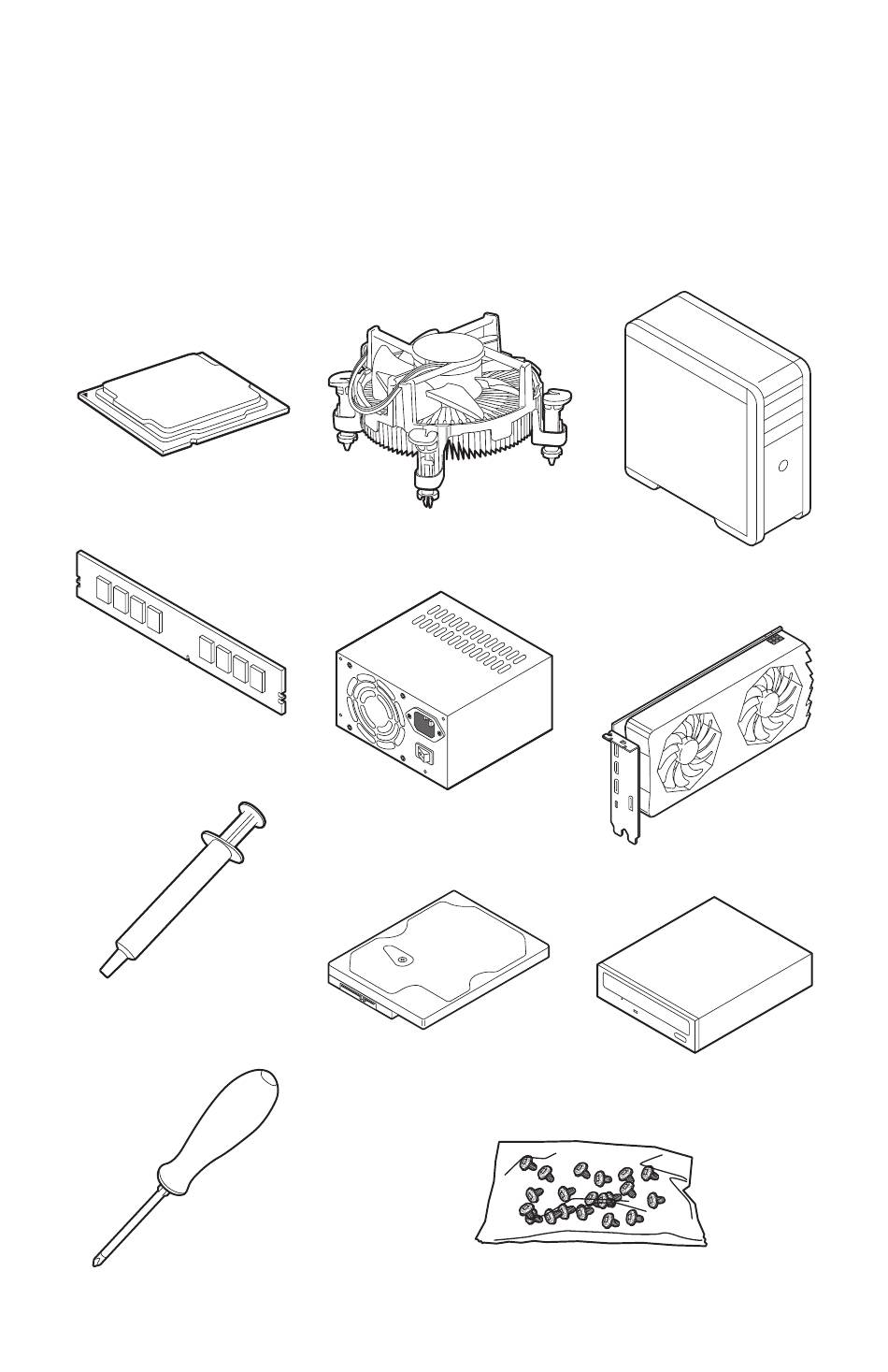

Preparing Tools and Components
Intel® LGA 1200 CPU
DDR4 Memory
Thermal Paste
Phillips Screwdriver

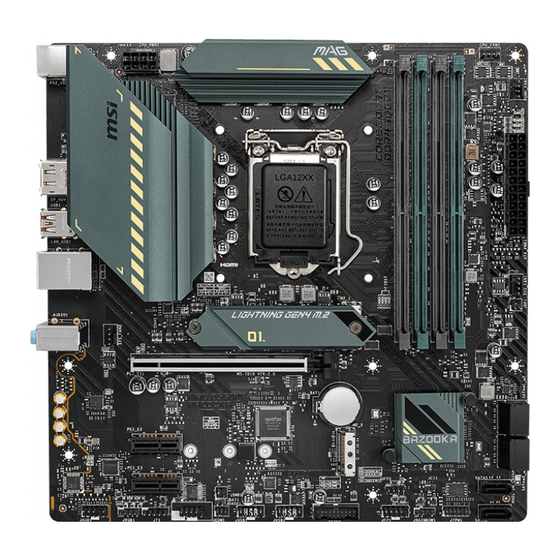

MAG B560M BAZOOKA
CPU Fan
Power Supply Unit
SATA Hard Disk Drive
motherboard. This Quick
Graphics Card
SATA DVD Drive
A Package of Screws
Chassis
1
Quick Start
Advertisement
Table of Contents
Related Manuals for MSI MAG B560M BAZOOKA
Summary of Contents for MSI MAG B560M BAZOOKA
-
Page 1: Quick Start
Quick Start Thank you for purchasing the MSI® motherboard. This Quick MAG B560M BAZOOKA Start section provides demonstration diagrams about how to install your computer. Some of the installations also provide video demonstrations. Please link to the URL to watch it with the web browser on your phone or tablet. You may have even link to the URL by scanning the QR code. -
Page 2: Safety Information
Safety Information ∙ The components included in this package are prone to damage from electrostatic discharge (ESD). Please adhere to the following instructions to ensure successful computer assembly. ∙ Ensure that all components are securely connected. Loose connections may cause the computer to not recognize a component or fail to start. -
Page 3: Case Stand-Off Notification
Case stand-off notification Before installing the motherboard into the case, install first the necessary mounting stand-off required for a motherboard on the mounting plate in the case. To prevent damage to the motherboard, any unnecessary mounting stand-off between the motherboard circuits and the computer case is prohibited. The Case standoff keep out zone signs will be marked on the backside of motherboard (as shown below) to serve as a warning to user. -
Page 4: Installing A Processor
Installing a Processor ⚽ https://youtu.be/4ce91YC3Oww Quick Start... -
Page 5: Installing Ddr4 Memory
Installing DDR4 memory ⚽ http://youtu.be/T03aDrJPyQs DIMMA1 DIMMA2 DIMMA2 DIMMA2 DIMMB1 DIMMB2 DIMMB2 Quick Start... -
Page 6: Connecting The Front Panel Header
Connecting the Front Panel Header ⚽ http://youtu.be/DPELIdVNZUI Power LED Power Switch JFP1 Reserved HDD LED Reset Switch HDD LED + Power LED + HDD LED - Power LED - Reset Switch Power Switch JFP1 Reset Switch Power Switch Reserved No Pin HDD LED - HDD LED HDD LED +... -
Page 7: Installing The Motherboard
Installing the Motherboard ⚽ https://youtu.be/wWI6Qt51Wnc Torque: 3 kgf·cm* BAT1 *3 kgf·cm = 0.3 N·m = 2.6 lbf·in Quick Start... -
Page 8: Connecting The Power Connectors
Connecting the Power Connectors ⚽ http://youtu.be/gkDYyR_83I4 ATX_PWR1 CPU_PWR1 Quick Start... -
Page 9: Installing Sata Drives
Installing SATA Drives ⚽ http://youtu.be/RZsMpqxythc Quick Start... -
Page 10: Installing A Graphics Card
Installing a Graphics Card ⚽ http://youtu.be/mG0GZpr9w_A Quick Start... -
Page 11: Connecting Peripheral Devices
Connecting Peripheral Devices Quick Start... -
Page 12: Power On
Power On Quick Start... -
Page 13: Table Of Contents
Contents Quick Start ......................1 Preparing Tools and Components................1 Safety Information ....................2 Case stand-off notification ..................3 Installing a Processor .................... 4 Installing DDR4 memory ..................5 Connecting the Front Panel Header ..............6 Installing the Motherboard ..................7 Connecting the Power Connectors ................ - Page 14 JRGB1: RGB LED connector ................. 37 JRAINBOW1: Addressable RGB LED connector ..........38 Installing OS, Drivers & MSI Center ..............39 Installing Windows® 10 ..................39 Installing Drivers ....................39 MSI Center ......................39 UEFI BIOS ......................40 BIOS Setup ......................41 Entering BIOS Setup .....................
-
Page 15: Specifications
∙ Supports Dual-Channel mode ∙ Supports non-ECC mode, un-buffered memory ∙ Supports Intel® Extreme Memory Profile (XMP) * Please refer www.msi.com for more information on compatible memory. ∙ 1x PCIe x16 slot ▪ PCI_E1 (From CPU) ▫ Supports up to PCIe 4.0 for 11th Gen Intel® CPU Expansion Slot ▫... - Page 16 * SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. ** Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. Intel® B560 Chipset ▪...
- Page 17 Continued from previous page ∙ 1x 24-pin ATX main power connector ∙ 1x 8-pin ATX 12V power connector ∙ 6x SATA 6Gb/s connectors ∙ 2x M.2 slots (M-Key) ∙ 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports) ∙...
- Page 18 ∙ ACPI 6.2, SMBIOS 3.0 ∙ Multi-language ∙ Drivers ∙ MSI Center ∙ Intel® Extreme Tuning Utility ∙ MSI APP Player (BlueStacks) Software ∙ Open Broadcaster Software (OBS) ∙ CPU-Z MSI GAMING ∙ Google Chrome™, Google Toolbar, Google Drive ∙ Norton™ Internet Security Solution ∙...
- Page 19 Continued from previous page ∙ Audio ▪ Audio Boost ∙ Cooling ▪ M.2 Shield Frozr ▪ Pump Fan ▪ Smart Fan Control ∙ LED ▪ Mystic Light Extension (RAINBOW/RGB) ▪ EZ DEBUG LED ∙ Performance Special Features ▪ DDR4 Boost ▪...
-
Page 20: Package Contents
Package contents Please check the contents of your motherboard package. It should contain: Motherboard MAG B560M BAZOOKA User manual Documentation Quick installation guide Application Driver DVD SATA 6G cables (2 cables/pack) Cable M.2 screw + standoff (2 sets/pack) IO shielding... -
Page 21: Block Diagram
Block Diagram PCI_E1 PCIe x16 DDR4 2Channel DIMM A1,A2 DIMM B1,B2 M2_1 SATA2 USB 3.2 Gen 2 10Gbps PCI_E2 & PCI_E3 USB 3.2 Gen 1 5Gbps M2_2 USB 2.0 SATA1/3/4/5/6 USB 2.0 Hub-GL850G Intel LAN 2.5G HD Audio SIO 6687 ALC897 Block Diagram... -
Page 22: Rear I/O Panel
Rear I/O Panel Line-in 2.5 Gbps LAN PS/2 Combo port DisplayPort Mic-in USB 3.2 Gen 2 USB 2.0 Type-A Line-out (10Gbps) Type-A USB 3.2 Gen 1 (5Gbps) Type-A LAN Port LED Status Table Link/ Activity LED Speed LED Status Description Status Description No link... - Page 23 ∙ Device Selection - allows you to select a audio output source to change the related options. The check sign indicates the devices as default. ∙ Application Enhancement - the array of options will provide you a complete guidance of anticipated sound effect for both output and input device. ∙...
-
Page 24: Overview Of Components
Overview of Components Processor Socket DIMMA1 DIMMA2 CPU_PWR1 DIMMB1 DIMMB2 CPU_FAN1 PUMP_FAN1 ATX_PWR1 SYS_FAN1 SYS_FAN2 M2_1 PCI_E1 JCI1 SATA▼1▲2 BAT1 SATA▼3▲4 PCI_E2 M2_2 PCI_E3 SATA5 JAUD1 SATA6 JRGB1 JTPM1 JBAT1 JRAINBOW1 JFP1 JCOM1 JDASH1 JFP2 JUSB1 JUSB3 JUSB2 Overview of Components... - Page 25 Component Contents Port Name Port Type Page CPU_FAN1, PUMP_FAN1, Fan Connectors SYS_FAN1~2 CPU_PWR1, ATX_PWR1 Power Connectors CPU Socket LGA1200 DIMMA1, DIMMA2, DIMMB1, DIMM Slots DIMMB2 JAUD1 Front Audio Connector JBAT1 Clear CMOS Jumper JCI1 Chassis Intrusion Connector JCOM1 Serial Port Connector JDASH1 Tuning Controller connector JFP1, JFP2...
-
Page 26: Cpu Socket
Always unplug the power cord from the power outlet before installing or removing the CPU. ∙ Please retain the CPU protective cap after installing the processor. MSI will deal with Return Merchandise Authorization (RMA) requests if only the motherboard comes with the protective cap on the CPU socket. -
Page 27: Dimm Slots
It is recommended to use a more efficient memory cooling system for full DIMMs installation or overclocking. ∙ The stability and compatibility of installed memory module depend on installed CPU and devices when overclocking. ∙ Please refer www.msi.com for more information on compatible memory. Overview of Components... -
Page 28: Pci_E1~3: Pcie Expansion Slots
PCI_E3: PCIe 3.0 x1 (From B560 chipset) ⚠ Important ∙ If you install a large and heavy graphics card, you need to use a tool such as MSI Gaming Series Graphics Card Bolster to support its weight to prevent deformation of the slot. ∙... -
Page 29: M2_1~2: M.2 Slots (Key M)
M2_1~2: M.2 Slots (Key M) ⚽ Video Demonstration Watch the video to learn how to Install M.2 SSD. https://youtu.be/2UeWMgjwogU M2_1 M2_2 ⚠ Important ∙ Intel® RST only supports PCIe M.2 SSD with UEFI ROM. ∙ Intel® Optane™ Memory Ready for M2_2 slto. Installing M.2 module 1. - Page 30 3. Secure the supplied M.2 standoff according to your M.2 SSD length if need. 4. Insert your M.2 SSD into the M.2 slot at a 30-degree angle. ⚠ 5. Secure the M.2 SSD in place with the supplied M.2 8.5H screw. Important Skips step 3 and step 5, if you install 2280 M.2 into M2_1 slot.
-
Page 31: Jfp1, Jfp2: Front Panel Connectors
JFP1, JFP2: Front Panel Connectors These connectors connect to the switches and LEDs on the front panel. Buzzer JFP2 Speaker Speaker - Buzzer + Buzzer - Speaker + Power LED Power Switch JFP1 Reserved HDD LED Reset Switch HDD LED + Power LED + HDD LED - Power LED -... -
Page 32: Cpu_Pwr1, Atx_Pwr1: Power Connectors
CPU_PWR1, ATX_PWR1: Power Connectors These connectors allow you to connect an ATX power supply. CPU_PWR1 Ground +12V Ground +12V Ground +12V Ground +12V +3.3V +3.3V +3.3V -12V Ground Ground PS-ON# Ground Ground Ground ATX_PWR1 Ground Ground PWR OK 5VSB +12V +12V +3.3V Ground... -
Page 33: Jusb3: Usb 3.2 Gen 1 Connector
No Pin ⚠ Important ∙ Note that the VCC and Ground pins must be connected correctly to avoid possible damage. ∙ In order to recharge your iPad,iPhone and iPod through USB ports, please install MSI® Center utility. Overview of Components... -
Page 34: Cpu_Fan1, Pump_Fan1, Sys_Fan1~2: Fan Connectors
CPU_FAN1, PUMP_FAN1, SYS_FAN1~2: Fan Connectors Fan connectors can be classified as PWM (Pulse Width Modulation) Mode or DC Mode. PWM Mode fan connectors provide constant 12V output and adjust fan speed with speed control signal. DC Mode fan connectors control fan speed by changing voltage. However, you can follow the instruction below to adjust the fan connector to PWM or DC Mode manually. -
Page 35: Jci1: Chassis Intrusion Connector
JCI1: Chassis Intrusion Connector This connector allows you to connect the chassis intrusion switch cable. Normal Trigger the chassis (default) intrusion event Using chassis intrusion detector 1. Connect the JCI1 connector to the chassis intrusion switch/ sensor on the chassis. 2. -
Page 36: Jbat1: Clear Cmos (Reset Bios) Jumper
JBAT1: Clear CMOS (Reset BIOS) Jumper There is CMOS memory onboard that is external powered from a battery located on the motherboard to save system configuration data. If you want to clear the system configuration, set the jumpers to clear the CMOS memory. Keep Data Clear CMOS/ (default) -
Page 37: Jrgb1: Rgb Led Connector
(12V/G/R/B) with the maximum power rating of 3A (12V). ∙ Always turn off the power supply and unplug the power cord from the power outlet before installing or removing the RGB LED strip. ∙ Please use MSI’s software to control the extended LED strip. Overview of Components... -
Page 38: Jrainbow1: Addressable Rgb Led Connector
(5V). In the case of 20% brightness, the connector supports up to 200 LEDs. ∙ Always turn off the power supply and unplug the power cord from the power outlet before installing or removing the RGB LED strip. ∙ Please use MSI’s software to control the extended LED strip. Overview of Components... -
Page 39: Installing Os, Drivers & Msi Center
MSI Center is an application that helps you easily optimize game settings and smoothly use content creation softwares. It also allows you to control and synchronize LED light effects on PCs and other MSI products. With MSI Center, you can customize ideal modes, monitor system performance, and adjust fan speed. -
Page 40: Uefi Bios
UEFI has many new functions and advantages that traditional BIOS cannot achieve, and it will completely replace BIOS in the future. The MSI UEFI BIOS uses UEFI as the default boot mode to take full advantage of the new chipset’s ⚠... -
Page 41: Bios Setup
* When you press F10, a confirmation window appears and it provides the modification information. Select between Yes or No to confirm your choice. BIOS User Guide If you’d like to know more instructions on setting up the BIOS, please refer to http://download.msi.com/manual/mb/Intel500BIOS.pdf or scan the QR code to access. UEFI BIOS... -
Page 42: Resetting Bios
Updating BIOS Updating BIOS with M-FLASH Before updating: Please download the latest BIOS file that matches your motherboard model from MSI website. And then save the BIOS file into the USB flash drive. Updating BIOS: 1. Insert the USB flash drive that contains the update file into the USB port. - Page 43 ∙ Please close all other application software before updating the BIOS. To update BIOS: 1. Install and launch MSI Center and go to Support page. 2. Select Live Update and click on Advance button. 3. Select the BIOS file and click on Install button.
-
Page 44: Intel® Optane™ Memory Configuration
Optane™ memory, please note that it requires Windows 10 64-bit operating system. Intel® Optane™ Memory User Guide If you’d like to know more instructions on how to enable or remove Intel® Optane™ Memory, please refer to http://download.msi.com/manual/mb/Optane.pdf or scan the QR code to access. ⚠ WARNING After you enable Intel®... -
Page 45: Troubleshooting
Troubleshooting Before sending the motherboard for RMA Lost BIOS password ∙ Clear the CMOS, but that will cause repair, try to go over troubleshooting guide first to see if your got similar you to lose all customized settings in the symptoms as mentioned below. - Page 46 NOTE Troubleshooting...
