Quick Start

Thank you for purchasing the MSI®
motherboard. This Quick Start section provides demonstration diagrams about how
to install your computer. Some of the installations also provide video demonstrations.
Please link to the URL to watch it with the web browser on your phone or tablet. You
may have even link to the URL by scanning the QR code.

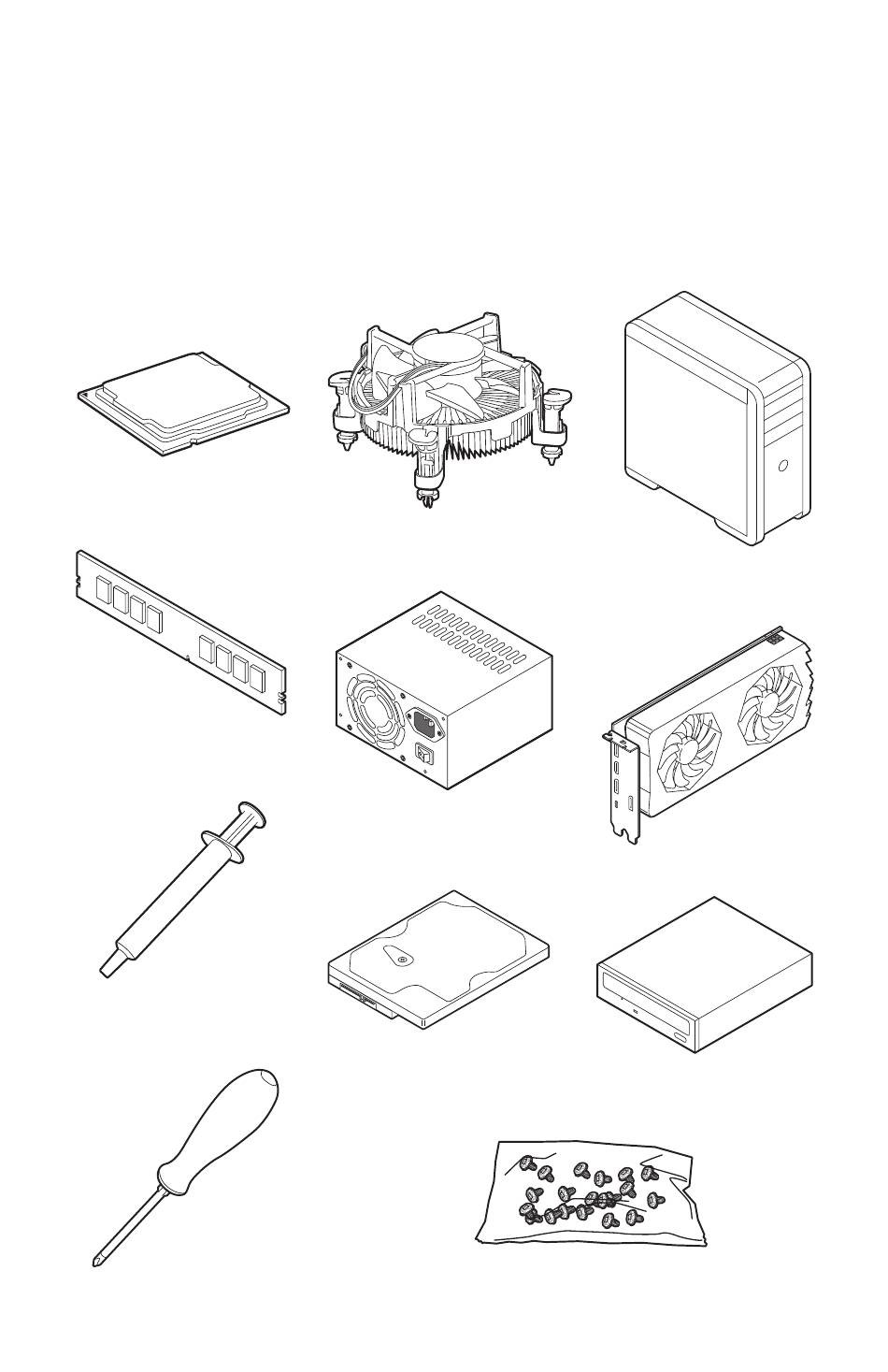

Preparing Tools and Components

Intel® LGA1200 CPU
DDR4 Memory
Thermal Paste
Phillips Screwdriver
MAG Z590 TOMAHAWK WIFI/ MAG Z590 TORPEDO
CPU Fan
Power Supply Unit
SATA Hard Disk Drive
Graphics Card
SATA DVD Drive
A Package of Screws
Chassis
1
Quick Start
