Quick Start

Thank you for purchasing the MSI®
MAG B550M VECTOR WIFI/ MAG A520M VECTOR
WIFI/ MAG A520M VECTOR WIFI II
motherboard. This Quick Start section provides
demonstration diagrams about how to install your computer. Some of the installations
also provide video demonstrations. Please link to the URL to watch it with the web
browser on your phone or tablet. You may have even link to the URL by scanning the
QR code.

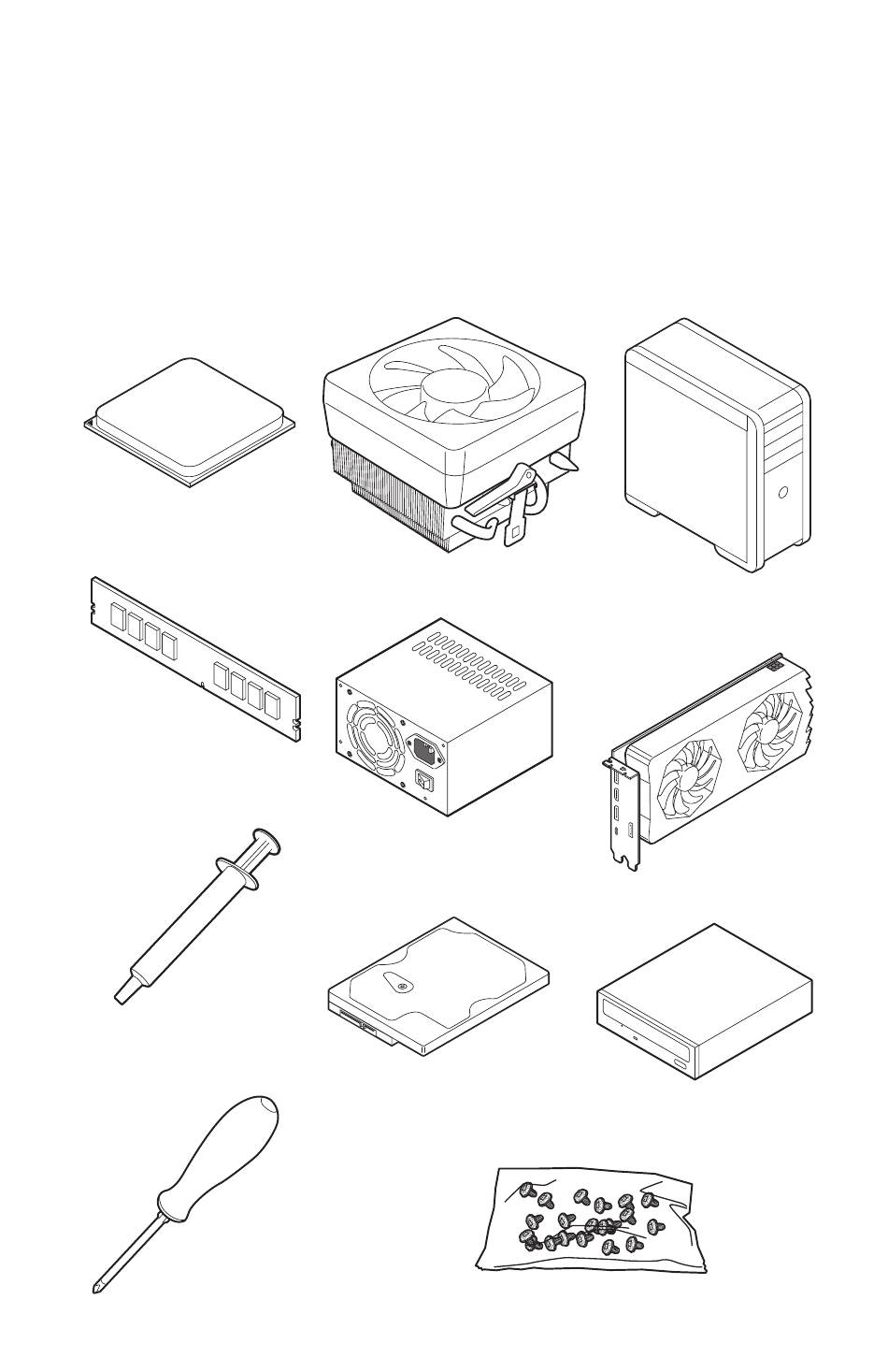

Preparing Tools and Components

AMD
AM4 CPU
®
CPU Fan
Chassis
DDR4 Memory
Power Supply Unit
Graphics Card
Thermal Paste
SATA Hard Disk Drive
SATA DVD Drive
A Package of Screws
Phillips Screwdriver
1
Quick Start
