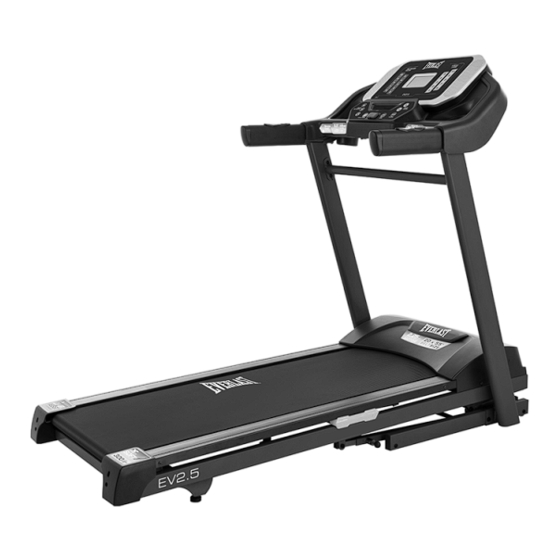

Owner's Manual
Model No.
16005100250
EV2.5
- Assembly
- Operation
- Adjustments
- Parts
- Warranty
CAUTION:
You must read and
understand this owner's
manual before operating
unit.
Keep this manual for
future reference.
Serial number
Write the serial number
in the space above for
reference. Serial
number can be found at
the front bottom section
of the Treadmill.
Advertisement
Table of Contents
Related Manuals for Everlast EV2.5
Summary of Contents for Everlast EV2.5
- Page 1 Owner’s Manual Model No. 16005100250 EV2.5 - Assembly - Operation - Adjustments - Parts - Warranty CAUTION: You must read and understand this owner’s manual before operating unit. Keep this manual for future reference. Serial number Write the serial number in the space above for reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Important Safety Instructions ..............3 Important Electrical Instructions ..............4 Important Operation Instructions ............... 5 Assembly Instructions ................5 Folding/Transport Instructions ..............10 Treadmill Operation .................. 11 General Maintenance ................20 Service Checklist - Diagnosis Guide ............. 25 Exploded View Diagram ................ - Page 3 BEFORE YOU BEGIN Thank you for choosing the EVERLAST Treadmill. We take great pride in producing this quality product and hope it will provide many hours of quality exercise to make you feel better, look better, and enjoy life to its fullest. It's a proven fact that a regular exercise program can improve your physical and mental health.
-
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING - Read all instructions before using this equipment. DANGER - To reduce the risk of electric shock, always unplug this treadmill from the electrical outlet prior to cleaning or service work. WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons, install the treadmill on a flat level surface with access to a 120-volt, 15-amp grounded outlet. -
Page 5: Important Electrical Instructions
IMPORTANT ELECTRICAL INSTRUCTIONS WARNING! NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. As with any appliance with a large motor, the GFCI will trip often. Route the power cord away from any moving part of the treadmill, including the elevation mechanism and transport wheels. NEVER remove any cover without first disconnecting AC power. -
Page 6: Important Operation Instructions
DANGER - Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product if it will not fit the outlet;... -
Page 7: Assembly Instructions
ASSEMBLY INSTRUCTIONS !!ATTENTION: IMPORTANT UNPACKING INSTRUCTIONS. PLEASE READ BEFORE UNPACKING YOUR FOLDING TREADMILL!! Serious injury could occur if this folding treadmill is not unpacked properly. There is a Velcro strap installed around the treadmill base that prevents the treadmill from unfolding accidentally during shipping. - Page 8 ASSEMBLY PACK CHECKLIST # 100. Ø5/16" × Ø18 × 1.5T # 80. Ø8 × 1.5T # 99. 5/16" ×1/2" Flat Washer (8pcs) Split Washer (4pcs) Hex Head Bolt (8pcs) # 125. 5/16" ×3/4" # 104. Lubricant (1pc) Button Head Socket Bolt (8pcs) # 44.
- Page 9 ASSEMBLY INSTRUCTIONS STEP 1 Take out the treadmill from the carton and lay it aside on a smooth surface. STEP 2 Connect Computer Cable (Middle) (54) with Computer Cable (Lower) (55), then insert Right and Left Uprights (4) and (5) into the Frame Base (2) and use 13m/m Wrench (90) to tighten 8 pcs of 5/16"...
- Page 10 STEP 3 Connect the Computer Cable (Middle) (54) and Computer Cable (Upper) (53). Connect the Speed Adjustment Switch W/Cable (Upper) (114) and Speed/Hand Pulse Complex (28). Connect the Incline Adjustment Switch W/Cable (Upper) (115) and Incline/Hand Pulse Complex (29). Insert Console Assembly (21) into right and left Uprights (4) and (5) and secure with 4 pcs of 5/16"...
-
Page 11: Folding/Transport Instructions
Folding Instructions UNFOLDING Pull locking knob and hold running deck and lower down to the floor. (As shown in Figures 1 and 2.) FOLDING Slowly lift using two hands until it is locked by the locking knob. (As shown in Figure 3 and 4) ... -
Page 12: Treadmill Operation
TREADMILL OPERATION Your treadmill features a walking belt coated with a lubricant. IMPORTANT: Never apply silicone spray or other substances to the walking belt or walking board. Such substances will deteriorate the walking belt and cause excessive wear. How to plug in the power cord. GROUNDING INSTRUCTIONS. - Page 13 TREADMILL OPERATION GETTING STARTED: CAUTION: Before operating the console, read the following precautions: • Do not stand on the walking belt when turning on the treadmill. • Always wear the safety key. Pulling the safety key will stop tread-belt movement. •...
- Page 14 Power Up Power the treadmill on by plugging it into an appropriate wall outlet, then turn on the power switch located at the front of the treadmill below the motor hood. Ensure that the safety key is installed, as the treadmill will not operate without it. The treadmill will then enter idle mode, which is the starting point for operation.
- Page 15 To Turn Treadmill Off 1. Remove Safety Key. 2. Turn off the main switch on the front of the treadmill, below the motor cover. Note: Do not leave the Safety Key on the treadmill when not in use. Always turn off the treadmill.
- Page 16 Program Operation Manual Program In idle mode, you can directly start or press ENTER to set the countdown parameters (time, distance, calories). Press SPEED ▲ and ▼ in order to adjust the time, distance, calories, confirm and press ENTER key to switch time, distance, calories; the system only accepts the last number of parameters.
- Page 17 Preset Program Profiles Customer Service 1-888-707-1880 Dyaco Canada Inc. 2021 Email: customerservice@dyaco.ca...
- Page 18 Preset Program Profiles Program Profile Detail Chart TIME MODE 1.5 2.5 2.5 1.5 1.5 2.5 2.5 1.5 1.5 2.5 2.5 1.5 1.5 1.5 1.5 1.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 3.5 3.5 3.5 2.5 2.5 2.5 3.5...
- Page 19 HEART RATE PROGRAMS Before we get started, a word about Heart Rate: The old motto, "no pain, no gain," is a myth that has been overpowered by the benefits of exercising comfortably. A great deal of this success has been promoted by the use of heart rate monitors. With the proper use of a heart rate monitor, many people find that their usual choice of exercise intensity was either too high or too low, and exercise is much more enjoyable by maintaining their heart rate in the desired benefit range.
- Page 20 RATE OF PERCEIVED EXERTION Heart rate is important but listening to your body also has a lot of advantages. There are more variables involved in how hard you should work out than just heart rate. Your stress level, physical health, emotional health, temperature, humidity, the time of day, the last time you ate and what you ate all contribute to the intensity at which you should workout.
-
Page 21: General Maintenance
GENERAL MAINTENANCE WARNING: Always unplug your treadmill prior to cleaning in order to avoid electrical hazards or shock. Belt and Deck - Your treadmill uses a very high-efficient low-friction deck. Performance is maximized when the deck is kept as clean as possible. Use a soft, damp cloth or paper towel to wipe the edge of the belt and the area between the belt edge and frame. - Page 22 Tighten the rear roller only enough to prevent slippage at the front roller. Turn the tread-belt tension adjusting bolt in increments of 1/4 turn and inspect for proper tension. When an adjustment is made to the belt tension, you must also make a tracking adjustment to compensate for the change in belt tension.
- Page 23 BELT / DECK LUBRICATION: Do not lubricate with anything other than DYACO CANADA INC approved lubricant. Your treadmill comes with one tube of lubricant, and extra tubes can be ordered directly from DYACO CANADA INC. There are commercially available lube kits, but the only one currently approved by DYACO CANADA INC is Lube-N-Walk.
- Page 24 RESET SWITCH RESETTING • If your treadmill lost power or will not start, check the reset switch located on the front of the motor cover. • If the white tab of the reset switch is not showing, then the reset switch has not been tripped. •...
- Page 25 Error Messages Safety Key is not in place. A reminder to put in the safety key. Treadmill calibration did not receive a speed signal for 10 seconds. Over the rated current. The controller is over the rated current for 3 seconds. Incline Error.
-
Page 26: Service Checklist - Diagnosis Guide
Service Checklist – Diagnosis Guide Before contacting your dealer for aid, please review the following information. It may save you both time and expense. This list includes common problems that may not be covered under the treadmill's warranty. PROBLEM SOLUTION/CAUSE Display does not light. -
Page 27: Exploded View Diagram
EXPLODED VIEW DIAGRAM Customer Service 1-888-707-1880 Dyaco Canada Inc. 2021 Email: customerservice@dyaco.ca... -
Page 28: Parts Lists
PARTS LIST KEY NO. PART NO. DESCRIPTION Q'TY AA010252-Q2 Main Frame AA020108-Q2 Frame Base AA030046-Q2 Incline Bracket CRAA040224-Q2 Right Upright CRAA040223-Q2 Left Upright AA050084-Q2 Console Support CRAA060114-Q2-01 7&8 Outer & Inner Slide AA060191-Q2 Handrail Support G150001 Incline Motor N010001 Drive Belt CRG080073C 12&13 Motor Bracket with Drive Motor... - Page 29 KEY NO. PART NO. DESCRIPTION Q'TY E020729 1200m/m_Computer Cable (Upper) E020725-02 1250m/m_Computer Cable (Middle) E020729-01 1200m/m_Computer Cable (Lower) F030185 1000m/m_Sensor W/Cable J011503-Y3 1/2" × 1"_Hex Head Bolt J011013R-ZN 3/8" × 3-1/4"_Hex Head Bolt J220003-Y3 Ø5/16" × 19 × 1.5T_Curved Washer J011006-Y3 3/8"...
- Page 30 KEY NO. PART NO. DESCRIPTION Q'TY J330002-Y3 M6_L Allen Wrench N020007A Lubricant P060018-A1 Adjustment Foot Pad P040041-A1 21.8 × 21.8mm_Square End Cap P040040-A1 25.4 × 25.4mm_Square End Cap J536805-Y3 3.5 × 16m/m_Tapping Screw P060281 Wire Tie Mount P010105-A1 Top Motor Cover Plate E050203-01 1000m/m_Speed Adjustment Switch W/Cable (Upper) E050253...
-
Page 31: Training Guidelines
TRAINING GUIDELINES EXERCISE Exercise is one of the most important factors in the overall health of an individual. Listed among its benefits are: Increased capacity for physical work (strength endurance) Increased cardiovascular (heart and arteries/veins) and respiratory efficiency ... - Page 32 Overload This is where you exercise at a level above that which can be carried out comfortably. The intensity, duration and frequency of exercise should be above the training threshold and should be gradually increased as the body adapts to the increasing demands. As your fitness level improves, so the training threshold should be raised.
- Page 33 Target heart Rate 10 Second Count Beats per Minute Pulse Count The pulse count (on your wrist or carotid artery in the neck, taken with two index fingers) is done for ten seconds, taken a few seconds after you stop exercising. This is for two reasons: (a) 10 seconds is long enough for accuracy, (b) the pulse count is to approximate your BPM rate at the time you are exercising.
- Page 34 PATRONIZATION This is the term used to vary your exercise program for both physiological and psychological benefits. In your overall program, you should vary the workload, frequency and intensity. The body responds better to variety, and so do you. In addition, when you feel yourself getting "stale', bring in periods of lighter exercise to allow the body to recuperate and restore its reserves.
- Page 35 STRETCHING Stretching should be included in both your warmup and cool-down and should be performed after 3-5 minutes of low-intensity aerobic activity or callisthenic type exercise. Movements should be performed slowly and smoothly, with no bouncing or jerking. Move into the stretch until slight tension and not pain is felt in the muscle and hold for 20-30 seconds.
- Page 36 INNER THIGH STRETCH TOE TOUCHES Sit with the soles of your feet together with Slowly bend forward from your waist, your knees pointing outward. Pull your feet letting your back and shoulders relax as as close to your groin as possible. Gently you stretch toward your toes.
-
Page 37: Manufacturer's Limited Warranty
MANUFACTURER'S LIMITED WARRANTY Dyaco Canada Inc. warrants all its treadmill parts for a period of time listed below from the date of retail sale, as determined by sale receipt. Dyaco Canada Inc.'s responsibilities include providing new or remanufactured parts at Dyaco Canada Inc.'s option and technical support to our independent dealers and service organizations. - Page 38 Please visit us online for information about our other brands and products manufactured and distributed by Dyaco Canada Inc. spiritfitness.ca solefitness.ca xterrafitness.ca dyaco.ca/products/everlast.html dyaco.ca/UFC/UFC-home.html spiritfitness.ca/johnnyg.html trainorsports.ca For more information, please contact Dyaco Canada Inc. T: 1-888-707-1880 ⏐ 5955 Don Murie St., Niagara Falls, Ontario L2G 0A9 ⏐...
