GEBERIT WASHBASIN TAPS PIAVE

AND BRENTA

MAINTENANCE MANUAL

Table of Contents

Need help?

Do you have a question about the PIAVE and is the answer not in the manual?

Questions and answers

Summary of Contents for Geberit PIAVE

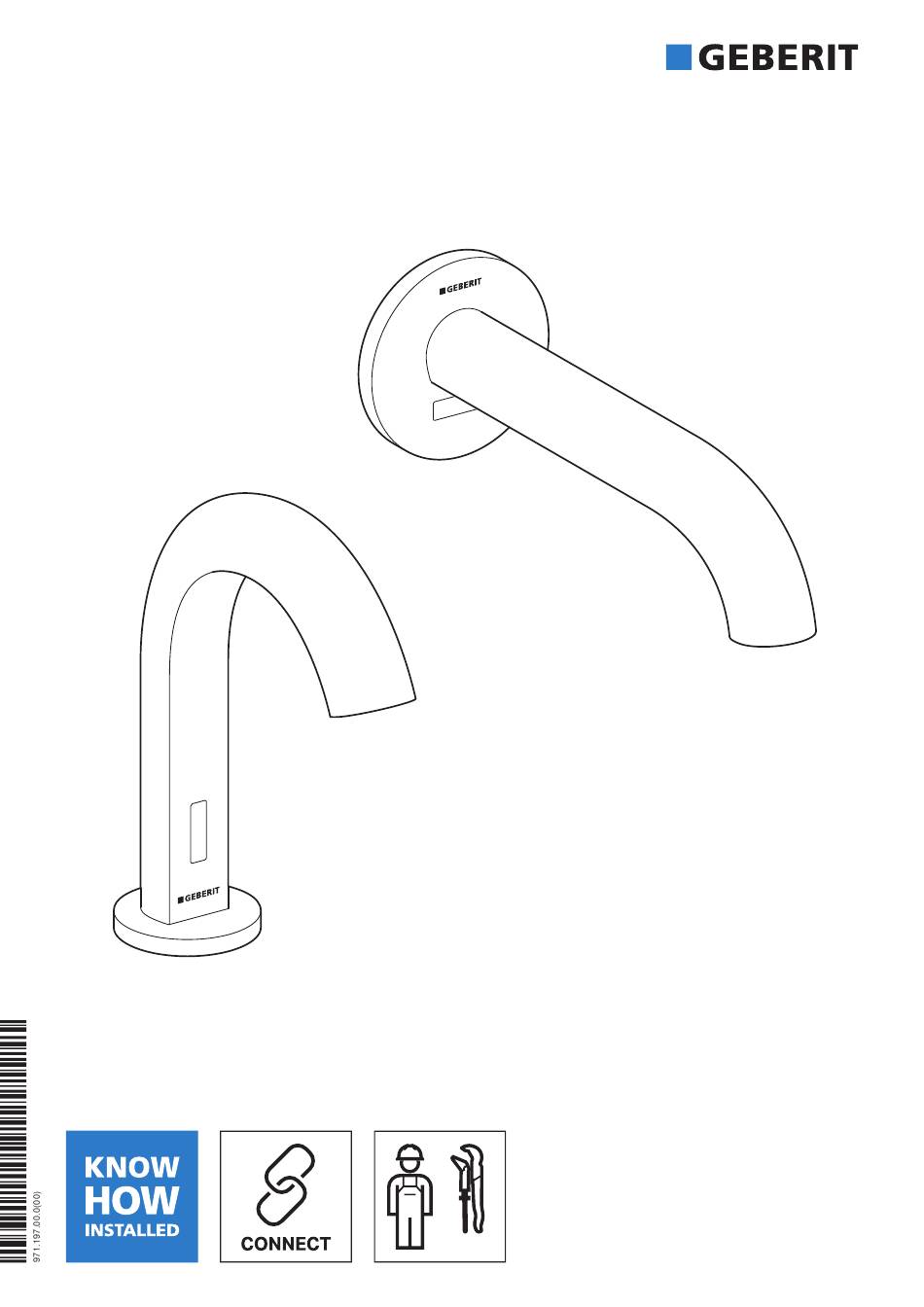

Page 1 GEBERIT WASHBASIN TAPS PIAVE AND BRENTA MAINTENANCE MANUAL...
Page 2: About This Document
Intended use The Geberit washbasin taps Piave and Brenta are intended to extract tap water. Using them for any other purpose is deemed improper. Geberit accepts no liability for the consequences of improper use.
Page 3: Safety Notes
Safety notes Incorrect maintenance work or repairs can result in damage or malfunctions. • Only use original spare parts when making repairs. • Do not modify the product or add any additional modules. 99079193583897099 © 03-2022 971.197.00.0(00)
Page 4: Product Description
Product description Structure of deck-mounted tap Figure 1: Geberit washbasin taps Piave and Brenta, deck-mounted Tap housing with protecting hose Tap aerator IR sensor Cover plate or cover Power supply (power supply unit, battery compartment or rechargeable battery for generator operation)

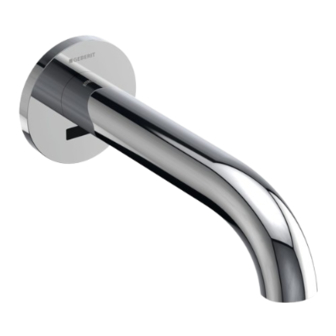

Page 5 Structure of wall-mounted tap Figure 2: Geberit washbasin taps Piave and Brenta, wall-mounted Tap housing Tap aerator IR sensor Cover plate Power supply (power supply unit, battery compartment or rechargeable battery for generator operation) Control electronics Basket filter Mixer Thermostatic mixer...
Page 6: Technical Data
Tap aerators with a flow limitation of 1.3 l/min, 1.9 l/min or 3.8 l/min are available as accessories. The Bluetooth® brand and its logos are the property of Bluetooth SIG, Inc. and are used under license by Geberit. Simplified EU Declaration of Conformity Geberit International AG hereby declares that the radio equipment type for Geberit washbasin taps Piave and Brenta with mains, battery or generator operation complies with Directive 2014/53/EU.
Page 7: Operation
Various Geberit apps are available for operation, settings and maintenance. The apps communicate with the device via a Bluetooth® interface. The Geberit apps are available free of charge for Android and iOS smartphones in the respective App Stores. Establishing connection with device ▶...
Page 8: Rectifying Malfunctions
Rectifying malfunctions The operator can perform the following measures to rectify malfunctions: • Clean the tap aerator • Clean the basket filter • Replace the batteries • Charge the rechargeable battery for generator operation These measures are described in the operation manual 970.664.00.0. Malfunction Cause Rectification...
Page 9 Malfunction Cause Rectification ▶ Test the water way. Leaky water way ▶ Replace connection hose and seals. Water drips from the ▶ Clean or replace the solenoid valve. → tap housing Solenoid valve does not close properly See "Replace the solenoid valve", page 14.
Page 10: Maintenance Performed By The Operator
970.664.00.0. off by the effects of temperature. • Activate cleaning with the Geberit App The Geberit Piave and Brenta washbasin taps with • Activate continuous flush with the Geberit App thermostatic mixer have a scald protection feature. • Clean the tap housing This limits the water temperature to 42°C.
Page 11: Replacing The Functional Unit
Replacing the functional unit Open the solenoid valve using the Geberit Service Handy. → See "Make settings using Detach the cover plate. → See figure the Geberit Service Handy", page 33, sequence , page 45. menu item 20. Close both shut-off units or angle stop Make sure that hot water (70°C) has run for...
Page 12 Demount and dispose of the functional unit. Remove protective caps and lubricate O- rings. 99079193583897099 © 03-2022 971.197.00.0(00)
Page 13 Check the hose adapter. Mount new functional unit. In the case of a functional unit without a thermostatic mixer, the one-piece or two- piece hose adapter may be used. In the case of a functional unit with a thermostatic mixer, the two-piece hose adapter must be used (art.
Page 14 Replace the solenoid valve Mount the power supply unit, battery compartment or rechargeable battery and Detach the cover plate. → See figure snap the power supply cable into the sequence , page 45. bracket. Close both shut-off units or angle stop valves.
Page 15 Demount the functional unit. Demount and dispose of the solenoid valve. 99079193583897099 © 03-2022 971.197.00.0(00)
Page 17 Replacing the IR sensor of the Mount the power supply unit, battery deck-mounted tap compartment or rechargeable battery and snap the power supply cable into the bracket. Detach the cover plate. → See figure sequence , page 45. Close both shut-off units or angle stop valves.
Page 18 Demount the protecting hose. Demount the tap bracket. Unscrew the long nut. Detach the tap with protecting hose from the washbasin. 99079193583897099 © 03-2022 971.197.00.0(00)
Page 19 Unscrew the lower cap. Pull out the sensor cable from the protecting hose. Detach the upper cap. Loosen the sensor bracket. 99079193583897099 © 03-2022 971.197.00.0(00)
Page 20 Pull out the lower part of the sensor bracket Mount a new sensor onto the sensor bracket and push the IR sensor backward. and insert into the tap. Pull the sensor bracket downwards and out and dispose of the sensor. Position the IR sensor in the window and push the sensor bracket together.
Page 21 Screw on the sensor bracket. Remove protective foil. Insert the sensor cable into the protecting hose. Make sure you feed it through the lower cap. Check the position of the IR sensor in the sensor window. 99079193583897099 © 03-2022 971.197.00.0(00)
Page 22 Mount the upper cap. Mount the tap onto the washbasin. Screw on the lower cap. Mount the tap bracket from below. 99079193583897099 © 03-2022 971.197.00.0(00)
Page 23 Screw on the tap bracket with the long nut. Connect the connection hose. Secure the protecting hose with the bracket. Insert the hose nipple. Connect the cable to the control electronics. → See figure sequence , page 48. Mount the control electronics. Open both shut-off units or angle stop valves.
Page 24 Replacing the IR sensor of the Pull out the sensor cable and dispose of the wall-mounted tap sensor. Detach the cover plate. → See figure sequence , page 45. Close both shut-off units or angle stop valves. → See figure sequence page 47.
Page 25 Draw in the sensor cable of the new sensor. Mount the tap. Screw on the tap. Snap the sensor into the sensor bracket. Connect the cable to the control electronics. → See figure sequence , page 48. Mount the control electronics. Open both shut-off units or angle stop valves.
Page 26 The connection hose must be replaced by a The connection hose must be replaced by a skilled person from the responsible Geberit skilled person from the responsible Geberit sales company. sales company.
Page 27 Demount the functional unit. Remove the connection bend from the hose holder. Remove the safety pin and separate the connection bend from the connection hose. Loosen the fastening screws. 99079193583897099 © 03-2022 971.197.00.0(00)
Page 28 Detach the tap. Unscrew and remove the screws from the tap bracket. Demount the tap bracket. Pull out the sensor cable and dispose of the sensor. Unscrew the hose holder. 99079193583897099 © 03-2022 971.197.00.0(00)
Page 29 Mounting the connection hose of the Pull the connection hose upwards and out. wall-mounted tap Insert the new connection hose from above. Pull the connection hose downwards and out. Detach the protective cap. 99079193583897099 © 03-2022 971.197.00.0(00)
Page 30 Connect the connection bend with the Screw on the hose holder. connection hose and insert the safety pin. Mount the tap bracket. Snap the connection bend into the hose holder and insert the connection hose into the hose routing. Screw on the tap bracket. Insert the hose holder with the connection hose.
Page 31 Draw in the sensor cable of the new sensor. Screw on the tap. Mount the tap. 99079193583897099 © 03-2022 971.197.00.0(00)
Page 32 Mount the functional unit. Mount the power supply unit, battery compartment or rechargeable battery and snap the power supply cable into the bracket. Connect the cable to the control electronics. → See figure sequence , page 48. Mount the control electronics. Open both shut-off units or angle stop valves.
Page 33: Make Settings
These settings must be made by a skilled person during the commissioning process. All functions or settings can be made with either the Geberit App or the Geberit Service Handy. It is not possible to make manual settings via the IR sensor.
Page 34 – The function can be stopped Stop = <OK> the water running [Reinigung] early by re-establishing the connection with the Geberit Service Handy. Programmes Operation mode • Normal operation: The tap flushes as long as an object [A] = Normal is in the detection range.
Page 35 Menu item Description Application Area Factory setting [EN] [DE] Parameter Starting time for energy saver If economy mode (menu item • To extend the battery [ESaverT] 6–48 h 6 h 31) is activated, the reaction lifetime [EnerSparZ] speed of the IR sensor slows down once the starting time has elapsed.
Page 36 Menu item Description Application Area Factory setting [EN] [DE] Sensor operation (bottom) • [Off]: Lower IR sensor is switched off. (It is not possible for both IR sensors to be switched off at the • To improve detection in [0] = Off same time.) case of external [1] = Static...
Page 37 Table 2: Information Menu item Description [EN] [DE] Counters Total number of days of operation. [Days?] Indicates the number of days of operation since commissioning. [SumBetrT?] Total number of uses [Uses?] Indicates the number of uses since commissioning. [SumBenut?] Total number of interval flushes [IntFlush?] Indicates the number of interval flushes since commissioning.
Page 38 Menu item Description [EN] [DE] Battery Displays the battery capacity. At 10%, replace batteries or charge [Battery%] rechargeable battery. [Batterie%] Example: [73]% 2 / 2 99079193583897099 © 03-2022 971.197.00.0(00)
Page 39 Make settings with the Geberit App After connecting a Geberit app to the device, the following functions and settings are available: • Operation: – Flushing: Activating a flush – Cleaning: Suppressing the flush actuation for a few minutes • Setting parameters and functions → See the ‘Settings’ table •...
Page 40 Menu item Description Application Area Factory setting Device settings Interval flush • User-controlled: A flush is actuated at the end of the [flush interval], whereby the flush interval is restarted with every use. The flush time is determined by the [flush time] value.
Page 41 Menu item Description Application Area Factory setting Check detection range Indicates when the sensor detects a user. The sensor can be recal- • In the case of problems Automatic – ibrated in the event of detection with user recognition faults or a change in environment. The environment is re-evaluated in the process.
Page 42 Menu item Description Application Area Factory setting Set mode for reflective washbasins • [Standard]: The IR sensors • To improve detection in detect objects when using [Standard], case of highly reflective standard ceramic washbasins. [Automatic], washbasins (e.g. • [Automatic]: The IR sensors [Reflection] Automatic mirror-polished...
Page 43 Table 4: Information Geberit App menu item Description [Name] and [password] A name and a description can be assigned for each device. Information [IR sensor article number] Indicates the article number of the IR sensor. [Control electronics article Indicates the article number of the control electronics.
Page 44: Disposal Of Waste Electrical And Electronic Equipment
End users are legally obliged to return old equipment to public waste disposal authorities, distributors, or Geberit for proper disposal. Many distributors of electrical and electronic equipment are obliged to take back WEEE free of charge. Contact the responsible sales or service company to return the WEEE to Geberit.
Page 52 Geberit International AG Schachenstrasse 77, CH-8645 Jona documentation@geberit.com www.geberit.com 99079193583897099 © 03-2022 971.197.00.0(00)
