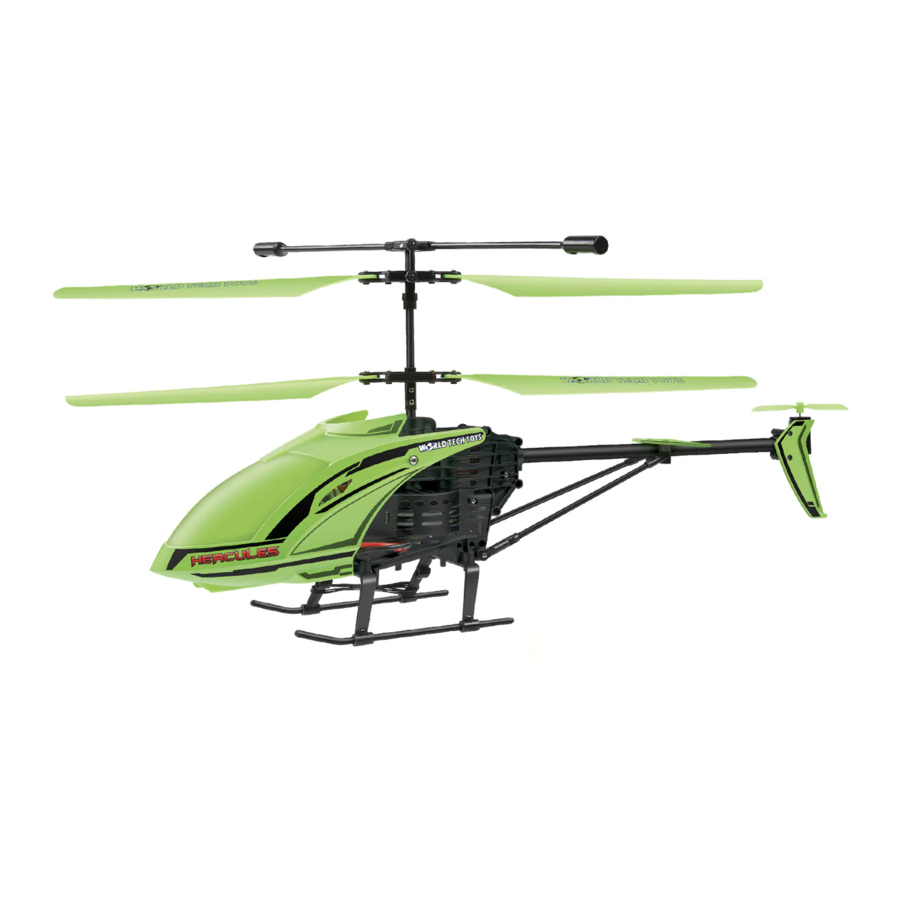

World Tech Toys MEGA HERCULES, - 3.5 Channel Gyro RC Helicopter Manual

Introduction

Before flying the helicopter please carefully read this instruction manual and keep it for future reference.

Features

  • World's first unbreakable helicopter.
  • Super strong polymer body.
  • Helicopter body can take up to 200 pounds of force
  • 3.5 channel radio control
  • Built-in gyro
  • LED lights

Notice

  • Please keep this product away from small children for their safety.
  • Never charge the helicopter's battery unsupervised. Overcharging the battery may cause it to overheat.
  • Make sure you turn off both the helicopter and transmitter when not in use.
  • Never throw batteries into a fire. Batteries may explode and cause injury.
  • Never touch the rotating rotors with any parts of your body while operating.
  • Do not disassemble the helicopter or transmitter.

Parts Identification

Parts Identification - Part 1

Parts Identification - Part 2

Transmitter Battery Installation

  1. Unscrew the screw on the battery cover and remove the battery cover. (pic. 1)

  2. Install 6 AA size batteries in the battery compartment as per the polarity shown inside. (pic. 2)

  3. Close the battery cover and replace the screw. (pic. 3)

BATTERY WARNING:

  1. For best results, use type alkaline batteries.
  2. Install only new batteries of the same type.
  3. Failure to insert batteries in the correct polarity, as indicated in the battery compartment, may shorten the life of the batteries or cause batteries to leak.
  4. Do not mix old and new batteries.
  5. Do not mix Alkaline, Standard (Carbon-Zinc) or Rechargeable (Nickel Cadmium) or (Nickel Metal Hydride) batteries.
  6. Do not dispose of batteries in fire.
  7. Batteries should be recycled or disposed of as per state and local guidelines

Charging the Helicopter

Charging the Helicopter

  1. Connect the AC charging adapter to the charging port of the helicopter.
  2. When charging is completed the first time, unplug the charger from the helicopter.
  3. The helicopter is ready for takeoff.
  4. A f ull charge will take approximately 3-4 hours. Flight time on max charge is approximately 10-15 minutes.

DO NOT OVER CHARGE THE HELICOPTER BATTERY PACK.
DO NOT CHARGE THE HELICOPTER BATTERY PACK OVERNIGHT.
DO NOT CHARGE THE HELICOPTER BATTERY PACK UNSUPERVISED.

Flight Environment

  1. Be sure that Helicopter Battery is fully charged and Remote Control Batteries are fresh.
  2. Helicopter will fly best in low wind conditions.
  3. Fly Helicopter in a wide open area with no people, pets, and other objects in the way.
  4. Do not fly in strong winds. This will make operation difficult and crash the Helicopter.

Take Off

  1. Place Helicopter on a flat surface. Plug in the helicopter battery pack to the helicopter. Turn on the transmitter.
  2. Check surroundings to be sure that it is clear of people, animals and obstructions.
  3. Slowly push the Throttle Stick UP to increase blade speed for lift.
  4. Adjust throttle input to maintain a steady hover.

  1. Parental Guidance is suggested for children operating Helicopter.
  2. Multiple Helicopters operating simultaneously must be on different Frequency Bands.

Control Methods

ASCEND
Push up on the left joystick and the helicopter will fly upwards.
Control Methods - ASCEND 		DESCEND
Push down on the right joystick and the helicopter will fly downwards.
Control Methods - DESCEND
TURN LEFT
Push the right joystick to the left and the helicopter will turn to the left.
Control Methods - TURN LEFT 		TURN RIGHT
Push the right joystick to the right and the helicopter will turn to the right.
Control Methods - TURN RIGHT
FORWARD
Push the right joystick upward and the helicopter will fly forward.
Control Methods - FORWARD 		BACKWARD
Push the right joystick downward and the helicopter will fly backward.
Control Methods - BACKWARD

Adjusting the Trim

If the helicopter spins to the left or right in flight without your input, you will need to adjust the trim to correct this issue.

When Helicopter SPINS LEFT
When Helicopter SPINS LEFT

When Helicopter SPINS RIGHT
When Helicopter SPINS RIGHT

Troubleshooting

Problem Cause Solution

Helicopter rotor doesn't spin

 Transmitter power is off and helicopter battery is not connected. Make sure transmitter is on and helicopter battery is connected.
Battery is drained. Replace the transmitter batteries and charge the helicopter.

Helicopter suddenly loses power and drops to the ground

 Transmitter infrared interference. Fly the helicopter in an area with less sunlight.
Helicopter flew out of range of transmitter. Make sure the helicopter stays within 35 feet of you when flying.
Helicopter doesn't ascend when throttle stick is pushed all the way up. Helicopter battery charge is low. Charge the helicopter battery.
Helicopter spins to the left or right in flight without your input. The trim needs to be adjusted. Twist the trim wheel slowly upward or downward until the helicopter stops spinning.

Website: www.worldtechtoys.com
Email: customerserv@worldtechtoys.com
Phone: (877) 498-8697
Monday - Friday / 9:00AM - 5:00PM / Pacific Time
