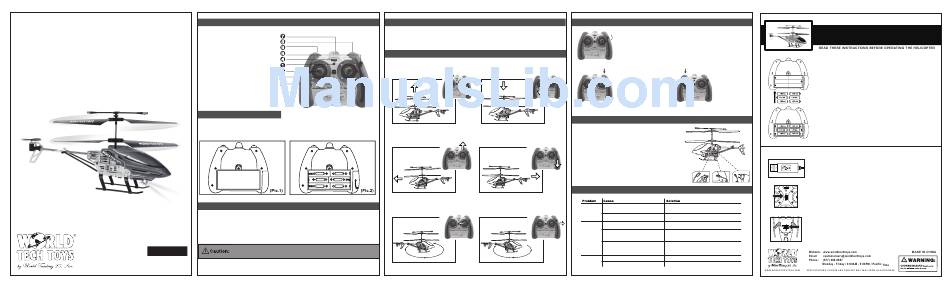

World Tech Toys NANO HERCULES Manual

NANO
HERCULES
3.5 Channel IR Helicopter
AGES 8+
ITEM NO. 35939

REMOTE CONTROL TRANSMITTER

1. Power Indicator LED
2. Power Switch
3. Throttle Control Stick
4. Channel Selector
5. Rudder Control Stick
6. Trim Adjustment Knob
7. Infrared Emitter
8. Throttle Speed Regulator
9. LED Light Control

BATTERY INSTALLATION

• Unscrew cover and install 6x AA Batteries as shown.
• Please note polarity and orientation of batteries.

PREFLIGHT CONDITIONS

• Be sure that Helicopter Battery is fully charged and Remote Control Batteries are fresh.
• Helicopter will fly best in low wind conditions.
• Fly Helicopter in a wide open area with no people, pets, and other objects in the way.
• Do not fly in strong winds. This will make operation difficult and crash the Helicopter.
1: Parental Guidance is suggested for children operating Helicopter.
2: Multiple Helicopters operating simultaneously must be on different Frequency Bands.

HELICOPTER TAKEOFF

1: Place Helicopter on a flat surface. Turn on the Transmitter and the Helicopter
2: Check surroundings to be sure that it is clear of people, animals, and obstructions.
3: Slowly push the Throttle Stick up to increase blade speed for lift.
4: Adjust throttle input to maintain a steady hover.

FLIGHT CONTROLS

The Left and Right Sticks will move the helicopter as follows:
UP DOWN
FORWARD BACKWARD
ROTATE LEFT ROTATE RIGHT

ADJUSTMENTS

If the Helicopter is rotating
on its own, slowly adjust
the Trim Control Knob
Switch between Switch LED
High Speed & Low Speed Light Modes
Modes

CHARGING

1: Helicopter can be charged from: USB, Controller,
or AC Charger
2: Move the Helicopter Power Switch to the OFF position
3: Connect Charging Adapter to Helicopter Charge Port.
4: Once charging is complete, disconnect Charging Plug
from Helicopter.
5: Helicopter is ready for flight.
USB CONTROLLER AC CHARGER

TROUBLESHOOTING

Batteries installed with the wrong polarity. Check the polarity of the batteries and install them
The Transmitter
indicator LED Correctly.
does not work
Batteries are drained. Install new batteries.
Helicopter is not IR receiving signal from Point Transmitter at Helicopter or operate in conditions
No control
transmitter. with less sunlight.
of the helicopter
Windy Conditions. Fly helicopter in calm conditions.
Helicopter is not receiving signal from Test the control functions of the helicopter in a
transmitter correctly. hover by applying light throttle and testing left and
right controls.
Helicopter is Rotor speed is too slow. Push Left Control Stick up for more rotor speed.
not flying high
Batteries are drained. Fully charge helicopter before use.
enough

ATTENTION

- Install only new batteries of the same type in
your product.
- Failure to insert batteries in the correct polarity,
as indicated in the battery compartment, may
shorten the life of the batteries or cause
batteries to leak.
- Do not mix old and new batteries.
- Do not mix Alkaline, Standard (Carbon-Zinc) or
Rechargeable (Nickel Cadmium) or (Nickel Metal
Hydride) batteries.
- Do not dispose of batteries in fire.
- Batteries should be recycled or disposed of as
per state and local guidelines.
BATTERY CHARGING INDICATORS:
USB CHARGER
RED light on USB charger will turn on when
plugged in and is not charging the helicopter.
Red light will turn off when the helicopter
battery is charging.
POWER SWITCH
When charging from the remote, the
power/charge indicator LED light will turn yellow
when charging. The light will turn RED when
the helicopter is fully charged.
CHARGING PORT
