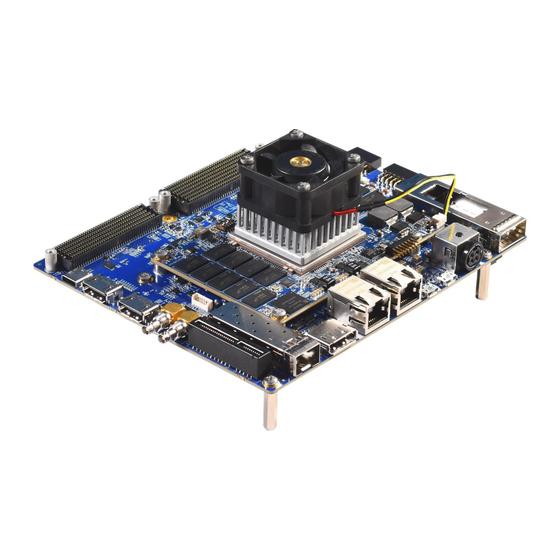

Zynq Ultrascale+ MPSoC (ZU11/17/19EG) SOM DevKit Hardware User Guide
iW-RainboW-G35D
Zynq Ultrascale+ MPSoC (ZU11/17/19EG) SOM
Development Platform
Hardware User Guide
REL0.2
iWave Systems Technologies Pvt. Ltd.
Page 1 of 110
Arrow.com.
Downloaded from

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iW-RainboW-G35D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for iWave iW-RainboW-G35D

Summary of Contents for iWave iW-RainboW-G35D

  • Page 1 Zynq Ultrascale+ MPSoC (ZU11/17/19EG) SOM DevKit Hardware User Guide iW-RainboW-G35D Zynq Ultrascale+ MPSoC (ZU11/17/19EG) SOM Development Platform Hardware User Guide REL0.2 iWave Systems Technologies Pvt. Ltd. Page 1 of 110 Arrow.com. Downloaded from...
  • Page 2 If you are not the intended recipient (or authorized to receive for the recipient), you are hereby notified that any disclosure, copying distribution or use of any of the information contained within this document is STRICTLY PROHIBITED. Thank you. “iWave Systems Tech. Pvt. Ltd.” REL0.2 iWave Systems Technologies Pvt.
  • Page 3 No warranty of accuracy is given concerning the contents of the information contained in this publication. To the extent permitted by law no liability (including liability to any person by reason of negligence) will be accepted by iWave Systems, its subsidiaries or employees for any direct or indirect loss or damage caused by omissions from or inaccuracies in this document.

  • Page 4: Table Of Contents

    2.6.8 RTC Coin Cell Holder ..........................100 2.6.9 12V Fan Header ........................... 101 TECHNICAL SPECIFICATION ..........................102 Power Input Requirement........................102 Power Output Specification ........................103 REL0.2 iWave Systems Technologies Pvt. Ltd. Page 4 of 110 Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 5 3.4.2 Guidelines to insert the Zynq Ultrascale+ SoC SOM into Carrier Board ..........107 3.4.3 FAN Sink Fixing procedure on SOM with Carrier Board ................. 108 ORDERING INFORMATION ..........................109 REL0.2 iWave Systems Technologies Pvt. Ltd. Page 5 of 110 Arrow.com. Arrow.com.
  • Page 6 Figure 40: Carrier board Mechanical dimension – Side View ..................106 Figure 41: Zynq Ultrascale+ SoC SOM Inserting Procedure ..................107 Figure 42: Zynq Ultrascale+ SOM with Fan sink fixing procedure ................108 REL0.2 iWave Systems Technologies Pvt. Ltd. Page 6 of 110 Arrow.com. Arrow.com.
  • Page 7 Table 25: Power Input Requirement ........................102 Table 26: Power Output Specification ........................103 Table 27: Environmental Specification........................104 Table 28: Orderable Product Part Numbers ......................109 REL0.2 iWave Systems Technologies Pvt. Ltd. Page 7 of 110 Arrow.com. Arrow.com. Arrow.com.

  • Page 8: Introduction

    HardwareUserGuide”. Overview iWave's Zynq Ultrascale+ MPSoC (ZU11/17/19EG) Development platform comes with Zynq Ultrascale+ MPSoC (ZU11/17/19EG) SOM and the Ultra-High-Performance Carrier Board. The development board can be used for quick prototyping of various applications targeted by the Zynq Ultrascale+ MPSoC (ZU11/17/19EG). With the 140mmx170mm size, carrier board is packed with all the necessary on-board connectors to validate the features of Zynq Ultrascale+ MPSoC (ZU11/17/19EG) SOM.
  • Page 9 TXVR Transceiver Transmitter UART Universal Asynchronous Receiver/Transmitter Universal Serial Bus USB OTG USB On The Go QSFP+ Quad Small Form-factor Pluggable REL0.2 iWave Systems Technologies Pvt. Ltd. Page 9 of 110 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 10: References

    References • Zynq Ultrascale+ MPSoC Datasheet & Reference Manual • Zynq Ultrascale+ MPSoC (ZU11/17/19EG) SOM Hardware User Guide REL0.2 iWave Systems Technologies Pvt. Ltd. Page 10 of 110 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 11: Architecture And Design

    ² By default, 12G SDI IN/OUT is supported. Optionally, 3G SDI IN/OUT can be supported on request. Figure 1: Zynq Ultrascale+ MPSoC (ZU11/17/19EG) SOM Carrier Board Block Diagram REL0.2 iWave Systems Technologies Pvt. Ltd. Page 11 of 110 Arrow.com. Arrow.com.

  • Page 12: Zynq Ultrascale+ Mpsoc (Zu11/17/19Eg) Som Carrier Board Features

    ➢ 1 Clock Output Capable LVDS/SE pins from HP Bank ➢ 3 Clock Output Capable LVDS/SE pins from HD Bank ➢ Upto 1 Single ended (SE) IOs REL0.2 iWave Systems Technologies Pvt. Ltd. Page 12 of 110 Arrow.com. Arrow.com. Arrow.com.
  • Page 13 12V FAN Header x 1 General Specification • Power Supply : DC 12V, 14A Power Input Jack • Form Factor : 140mm X 170mm REL0.2 iWave Systems Technologies Pvt. Ltd. Page 13 of 110 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 14: Board To Board Connectors

    Board to Board Connector1 (J18) is physically located at the top of the board as shown below. Note: For the Board to Board Connector1 pinout, refer the Zynq Ultrascale+ MPSoC (ZU11/17/19EG) SOM Hardware User Guide. Figure 2: Board to Board Connector1 REL0.2 iWave Systems Technologies Pvt. Ltd. Page 14 of 110 Arrow.com. Arrow.com. Arrow.com.

  • Page 15: Board To Board Connector2

    Board to Board Connector2 (J19) is physically located at the top of the board as shown below. Note: For the Board to Board Connector2 pinout, refer the Zynq Ultrascale+ MPSoC (ZU11/17/19EG) SOM Hardware User Guide. Figure 3: Board to Board Connector2 REL0.2 iWave Systems Technologies Pvt. Ltd. Page 15 of 110 Arrow.com. Arrow.com. Arrow.com.

  • Page 16: Board To Board Connector3

    Board to Board Connector3 (J12) is physically located at the top of the board as shown below. Note: For the Board to Board Connector3 pinout, refer the Zynq Ultrascale+ MPSoC (ZU11/17/19EG) SOM Hardware User Guide. Figure 4 Board to Board Connector3 REL0.2 iWave Systems Technologies Pvt. Ltd. Page 16 of 110 Arrow.com. Arrow.com. Arrow.com.

  • Page 17: Board To Board Connector4

    Board to Board Connector3 (J11) is physically located at the top of the board as shown below. Note: For the Board to Board Connector4 pinout, refer the Zynq Ultrascale+ MPSoC (ZU11/17/19EG) SOM Hardware User Guide. Figure 5 Board to Board Connector4 REL0.2 iWave Systems Technologies Pvt. Ltd. Page 17 of 110 Arrow.com. Arrow.com. Arrow.com.

  • Page 18: Ps Interface Features

    The MUX/DEMUX connection and interface selection option is shown below for easy understanding. The selection control of each MUX IC is connected to PS-GTR Lane selection 4bit DIP switch (SW6). Figure 6: PS-GTR External Switch Connectivity. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 18 of 110 Arrow.com. Arrow.com.

  • Page 19: Figure 7: Ps-Gtr Lane Selection Switch

    PS-GTR Lane3 is connected to Lane3 PS-GTR Lane3 is connected to M.2 of PCIe x4 connector SATA connector (default) Figure 7: PS-GTR Lane Selection Switch REL0.2 iWave Systems Technologies Pvt. Ltd. Page 19 of 110 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 20: Figure 8: Pcie X4 Connector

    Clock Synthesizer1. This PCIe x4 connector (J26) is physically located at the top of the board as shown below. Note: For more details on PS-GTR Lane selection options, refer Table 3. Figure 8: PCIe x4 Connector REL0.2 iWave Systems Technologies Pvt. Ltd. Page 20 of 110 Arrow.com. Arrow.com. Arrow.com.

  • Page 21: Table 4: Pcie X4 Connector Pin Assignment

    SMB Clock. SMDAT I2C0_SDA(PS_MIO11_500) IO, 3.3V CMOS SMB DATA. Power Ground. +3V3 VCC_3V3 O, 3.3V Power 3.3V Supply Voltage. TRST# REL0.2 iWave Systems Technologies Pvt. Ltd. Page 21 of 110 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 22 PS_MGTRTXP3_505 PCIe Lane3 Transmit pair positive. PETn3 PS_MGTRTXN3_505 PCIe Lane3 Transmit pair negative Power Ground. RSVD PRSNT#2 Power Ground. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 22 of 110 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 23: Figure 9: Display Port Connector

    PL Bank IO. This Display Port connector (J21) is physically located at the top of the board as shown below. Note: For more details on PS-GTR Lane selection options, refer Table 3. Figure 9: Display Port Connector REL0.2 iWave Systems Technologies Pvt. Ltd. Page 23 of 110 Arrow.com. Arrow.com. Arrow.com.
  • Page 24 Enable pin of the USB Power switch is connected to the PS GPIO “PS_MIO25_500” from Board to Board connector2 pin38. This USB Type-C connector (J27) is physically located at the top of the board as shown below. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 24 of 110 Arrow.com.

  • Page 25: Figure 10: Usb Type-C Connector

    Zynq Ultrascale+ MPSoC (ZU11/17/19EG) SOM DevKit Hardware User Guide Figure 10: USB Type-C Connector REL0.2 iWave Systems Technologies Pvt. Ltd. Page 25 of 110 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 26: Table 5: Usb Typec Pin Assignment

    I, DIFF USB3.0 Super Speed Receive Data Negative. SSRXp1 PS_MGTRRXP2_505 I, DIFF USB3.0 Super Speed Receive Data Positive. Power Mechanical Pin. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 26 of 110 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 27: Figure 11: M.2 Sata Connector (Key M)

    Lane selection options, refer Table 3. This M.2SATA connector (J36) is physically located at the bottom of the board as shown below. Figure 11: M.2 SATA Connector (Key M) REL0.2 iWave Systems Technologies Pvt. Ltd. Page 27 of 110 Arrow.com. Arrow.com.

  • Page 28: Table 6: M.2 Sata Connector Pin Assignment

    N/A7 PERn1 N/A8 PERp1 N/A9 Power Ground. N/A10 PETn1 N/A11 PETp1 DEVSLP Power Ground. SMB_CLK REL0.2 iWave Systems Technologies Pvt. Ltd. Page 28 of 110 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 29 Ground. 3.3V VCC_3V3 O, 3.3V Power Supply Voltage. Power Ground. 3.3V VCC_3V3 O, 3.3V Power Supply Voltage. CONFIG_2 REL0.2 iWave Systems Technologies Pvt. Ltd. Page 29 of 110 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 30: Gigabit Ethernet Port1

    Speed (Yellow) and Link/Activity (Green) LED indications on RJ45 Magjack connector. This RJ45 Magjack connector(J17) is physically located at the top of the board as shown below. Figure 12: Gigabit Ethernet Connector1 REL0.2 iWave Systems Technologies Pvt. Ltd. Page 30 of 110 Arrow.com. Arrow.com.

  • Page 31: Gigabit Ethernet Port2

    RJ45 Magjack (J20). Also it supports Speed (Yellow) and Link/Activity (Green) LED indications on RJ45 Magjack connector. This RJ45 Magjack connector is physically located at the top of the board as shown below. Figure 13: Gigabit Ethernet Connector2 REL0.2 iWave Systems Technologies Pvt. Ltd. Page 31 of 110 Arrow.com. Arrow.com.

  • Page 32: Usb2.0 Otg Port

    B2B-2) and controls the power using the USB_PWR_EN pin (32 pin of B2B-2). This USB2.0 OTG connector (J16) is physically located at the top of the board as shown below. Figure 14: USB OTG Connector REL0.2 iWave Systems Technologies Pvt. Ltd. Page 32 of 110 Arrow.com. Arrow.com. Arrow.com.

  • Page 33: Standard Sd Port

    If PS_MIO43_501 is set to high, then 1.8V IO level is selected for SD1 signals to SD connector. The Standard SD connector (J33) is physically located at the bottom of the board as shown below. Figure 15: Standard SD Connector REL0.2 iWave Systems Technologies Pvt. Ltd. Page 33 of 110 Arrow.com. Arrow.com.

  • Page 34: Can0 Header

    5V Supply Voltage. VCC_12V CANL IO, DIFF CAN Differential negative. Power Ground. CANH IO, DIFF CAN Differential positive. Power Ground. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 34 of 110 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 35: Debug Uart

    MicroAB Connector can be used for Debug purpose which is is physically located at the top of the board as shown below. Figure 17: Debug UART Connector REL0.2 iWave Systems Technologies Pvt. Ltd. Page 35 of 110 Arrow.com. Arrow.com. Arrow.com.

  • Page 36: Interface Features

    HDMI OUT (3 GTH Transmitter) o SMA TX (1 GTH Transmitter) o FMC HPC Connector (10 GTH Transceivers) o FMC+ HPC Connector (16 GTH Transceivers) REL0.2 iWave Systems Technologies Pvt. Ltd. Page 36 of 110 Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 37: Figure 18: Sfp+ Connector With Cage

    All other contorl signals of SFP+ connnector is connected from IO Expander. This SFP+ connector with dust case (J25) is physically located at the top of the board as shown below. Figure 18: SFP+ Connector with Cage REL0.2 iWave Systems Technologies Pvt. Ltd. Page 37 of 110 Arrow.com. Arrow.com.

  • Page 38: Table 8: Sfp+ Connector Pin Assignment

    Power Ground. GTHTXP2_227 O, DIFF SFP+ Transmit Data Positive GTHTXN2_227 O, DIFF SFP+ Transmit Data Negative VEET3 Power Ground. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 38 of 110 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 39: Figure 19: Sdi Video In Hd Bnc Connector

    I2C address 0x2D. SDI Video IN HD BNC connector (J29) is physically located at the top of the board as shown below. Note: By default, 12G Adaptive Cable Equalizer chip “LMH1297” is supported on the board. To support 3G Adaptive Cable Equalizer chip “LMH0397”, contact iWave. Figure 19: SDI Video IN HD BNC Connector REL0.2 iWave Systems Technologies Pvt.

  • Page 40: Figure 20: Sdi Video Out Hd Bnc Connector

    Note: By default, 12G Adaptive Cable Equalizer chip “LMH1297” is supported on the board. To support 3G Adaptive Cable Equalizer chip “LMH0397”, contact iWave. Figure 20: SDI Video OUT HD BNC Connector REL0.2...

  • Page 41: Figure 21 Hdmi In Connector

    PL Bank IO “PL_E15_LVDS68_L14P_GC” from Board to Board Connector2 pin110. HDMI IN connector (J30) is physically located at the top of the board as shown below. Figure 21 HDMI IN Connector REL0.2 iWave Systems Technologies Pvt. Ltd. Page 41 of 110 Arrow.com. Arrow.com.

  • Page 42: Figure 22 Hdmi Out Connector

    (J31). Zynq Ultrascale+ MPSoC’s PL Bank226 Channel0 to Channel2 GTH transmitter from Board to Board connector1 is directly connected to HDMI Remitter chip (SN65DP159RGZR) and then connected to HDMI OUT Connector (J31) for HDMI Video out. Figure 22 HDMI OUT Connector REL0.2 iWave Systems Technologies Pvt. Ltd. Page 42 of 110 Arrow.com. Arrow.com. Arrow.com.

  • Page 43: Gty High Speed Transceivers

    All other control signals of QSFP+ connnector is connected from IO Expander. This QSFP+ connector with dust case (J4) is physically located at the top of the board as shown below. Figure 23 QSFP28/QSFP+/QSFP+ Connector with Cage REL0.2 iWave Systems Technologies Pvt. Ltd. Page 43 of 110 Arrow.com. Arrow.com.

  • Page 44: Table 9 Qsfp28/Qsfp+/Qsfp Connector Pin Out

    This Pin is connected to IO Expander2 Port 3 for software access if required Vcc Tx VCCTX_3V3 O, 3.3V Power 3.3V Transmit Supply Voltage REL0.2 iWave Systems Technologies Pvt. Ltd. Page 44 of 110 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 45 Tx1p GTYTXP0_131 O, DIFF QSFP+ Transmit1 Data Positive Tx1n GTYTXN0_131 O, DIFF QSFP+ Transmit1 Data Negative. GND12 Power Ground. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 45 of 110 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 46: Figure 24 Firefly Connector

    FireFly power connector (J3). This FireFly data with power connector (J5) is physically located at the top of the board as shown below. Figure 24 FireFly Connector REL0.2 iWave Systems Technologies Pvt. Ltd. Page 46 of 110 Arrow.com. Arrow.com.

  • Page 47: Table 10 Firefly Data Connector Pin Out

    RX1P GTYRXP0_128 I, DIFF FireFly Receiver1 Data Positive RX1N GTYRXN0_128 I, DIFF FireFly Receiver1 Data Negative GND_12 Power Ground. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 47 of 110 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 48: Table 11 Firefly Power Connector Pin Out

    This Pin is connected from 7th pin of I2C Bus switch (U29). VCC_1.8V VCC_F_1V8 O, 3.3V Power 1.8 V supply VCC_RX VCCRX_F_3V3 O, 3.3V Power 3.3V Receive Supply Voltage REL0.2 iWave Systems Technologies Pvt. Ltd. Page 48 of 110 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 49: Pmod Host Port Connectors

    Pmod Connectors through Voltage level translator. Pmod Host port connector1 (J2) and Connector2 (J1) are physically located at the top of the board as shown below. Figure 25: Pmod Host Port Connectors REL0.2 iWave Systems Technologies Pvt. Ltd. Page 49 of 110 Arrow.com. Arrow.com.

  • Page 50: Table 12: Pmod Connector1 Pin Assignment

    General purpose Input Output. PL_L17_LVDS68_L6P IO, 3V3 LVCMOS General purpose Input Output. Power Ground. VCC_3V3 O, 3.3V Power 3V3 Supply Voltage. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 50 of 110 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 51: Figure 26: Sma Connectors

    GTH Bank226 channel3 High speed J34.1 GTHTXP3_226 O, DIFF differential transmitter positive. GTH Bank226 channel3 High speed J35.1 GTHTXN3_226 O, DIFF differential transmitter negative. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 51 of 110 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 52: Fmc Hpc Connector

    Upto 1 Single ended (SE) IOs This 400Pin FMC HPC connector (J22) is physically located at the top of the board as shown below. Figure 27: FMC Connector REL0.2 iWave Systems Technologies Pvt. Ltd. Page 52 of 110 Arrow.com. Arrow.com.

  • Page 53: Figure 28: Fmc Hpc Connector Pin Out

    * By default, FMC connector power is disabled as per Vita Specification. While booting the FMC Module EEPROM is read and enabling the FMC connector power. * If FMC modules EEPROM is not programmed, then FMC connector power is not enabled. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 53 of 110 Arrow.com. Arrow.com.

  • Page 54: Table 15: Fmc Hpc Connector Pin Assignment

    Board to Board Connector 1 GTHRXP1_225 DP5_M2C_N Board to Board Connector 1 GTHRXN1_225 DP1_C2M_P Board to Board Connector 1 GTHTXP1_224 DP1_C2M_N Board to Board Connector 1 GTHTXN1_224 iWave Systems Technologies Pvt. Ltd. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 55 Board to Board Connector 2 GTHRXP0_227 DP9_M2C_N Board to Board Connector 2 GTHRXN0_227 DP8_M2C_P Board to Board Connector 2 GTHRXP1_227 DP8_M2C_N Board to Board Connector 2 GTHRXN1_227 iWave Systems Technologies Pvt. Ltd. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 56 Board to Board Connector 1 GTHTXP3_225 DP7_C2M_N Board to Board Connector 1 GTHTXN3_225 DP6_C2M_P Board to Board Connector 1 GTHTXP2_225 DP6_C2M_N Board to Board Connector 1 GTHTXN2_225 iWave Systems Technologies Pvt. Ltd. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 57 Board to Board Connector 2 PL_AN10_LVDS67_L18N LA10_P Board to Board Connector 2 PL_F14_LVDS68_L13P_GC LA10_N Board to Board Connector 2 PL_E14_LVDS68_L13N_GC LA14_P LA14_N LA18_P_CC LA18_N_CC LA27_P LA27_N iWave Systems Technologies Pvt. Ltd. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 58 Board to Board Connector 2 PL_M16_LVDS68_L3N LA09_P Board to Board Connector 2 PL_G17_LVDS68_L11P_GC LA09_N Board to Board Connector 2 PL_F17_LVDS68_L11N_GC LA13_P Board to Board Connector 2 PL_E16_LVDS68_L19P_DBC iWave Systems Technologies Pvt. Ltd. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 59 Board to Board Connector 2 PS_JTAG_TMS TRST_L Board to Board Connector 2 3P3V VCC_3V3_FMC 3P3V VCC_3V3_FMC 3P3V VCC_3V3_FMC HA01_P_CC HA01_N_CC HA05_P HA05_N iWave Systems Technologies Pvt. Ltd. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 60 HA20_N HB03_P HB03_N HB05_P HB05_N HB09_P HB09_N HB13_P HB13_N HB19_P HB19_N HB21_P HB21_N VADJ VCC_FMC_ADJ PG_M2C HA00_P_CC HA00_N_CC iWave Systems Technologies Pvt. Ltd. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 61 HB12_P HB12_N HB16_P HB16_N HB20_P HB20_N VADJ VCC_FMC_ADJ CLK1_M2C_P Board to Board connector 1 PL_C4_LVDS94_L8P_HDGC CLK1_M2C_N Board to Board connector 1 PL_C3_LVDS94_L8N_HDGC iWave Systems Technologies Pvt. Ltd. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 62 Board to Board connector 2 PL_D14_LVDS68_L14N_GC LA20_P LA20_N LA22_P LA22_N LA25_P LA25_N LA29_P LA29_N LA31_P LA31_N LA33_P LA33_N VADJ VCC_FMC_ADJ VREF_A_M2C iWave Systems Technologies Pvt. Ltd. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 63 Board to Board connector 2 PL_K15_LVDS68_L5N LA15_P LA15_N LA19_P LA19_N LA21_P LA21_N LA24_P LA24_N LA28_P LA28_N LA30_P LA30_N LA32_P LA32_N iWave Systems Technologies Pvt. Ltd. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 64 HA11_P HA11_N HA14_P HA14_N HA18_P HA18_N HA22_P HA22_N HB01_P HB01_N HB07_P HB07_N HB11_P HB11_N HB15_P HB15_N HB18_P HB18_N iWave Systems Technologies Pvt. Ltd. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 65 HA06_P HA06_N HA10_P HA10_N HA17_P_CC HA17_N_CC HA21_P HA21_N HA23_P HA23_N HB00_P_CC HB00_N_CC HB06_P_CC HB06_N_CC HB10_P HB10_N HB14_P HB14_N iWave Systems Technologies Pvt. Ltd. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 66 Note: *FMC connector supports VADJ 1.8V and 1.2V. By default, VADJ is set to 1.8V. Contact iWave for further details. * If VCC_FMC_ADJ voltage changed from default value 1.8 to 1.2V, Please make sure that SOM concern IO voltage also to be m iWave Systems Technologies Pvt.

  • Page 67: Fmc+ Hpc Connector

    • 3 Clock Input Capable LVDS/SE pins from HD Bank This 560Pin FMC+ HPC connector (J14) is physically located at the top of the board as shown below. Figure 29: FMC+ Connector iWave Systems Technologies Pvt. Ltd. Arrow.com. Arrow.com. Arrow.com.

  • Page 68: Figure 30: Fmc+ Hpc Connector Pin Out

    * By default, FMC+ connector power is disabled as per Vita Specification. While booting the FMC or FMC+ Modules EEPROM i enabling the FMC+ connector power. * If FMC & FMC+ modules EEPROM is not programmed, then FMC+ connector power is not enabled. iWave Systems Technologies Pvt. Ltd. Arrow.com. Arrow.com.

  • Page 69: Table 16: Fmc+ Hpc Connector Pin Assignment

    Board to Board Connector 3 GTYRXP1_130 DP5_M2C_N Board to Board Connector 3 GTYRXN1_130 DP1_C2M_P Board to Board Connector 3 GTYTXP1_129 DP1_C2M_N Board to Board Connector 3 GTYTXN1_129 iWave Systems Technologies Pvt. Ltd. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 70 Board to Board Connector 3 GTHRXP1_231 DP9_M2C_N Board to Board Connector 3 GTHRXN1_231 DP8_M2C_P Board to Board Connector 3 GTHRXP0_231 DP8_M2C_N Board to Board Connector 3 GTHRXN0_231 iWave Systems Technologies Pvt. Ltd. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 71 Board to Board Connector 3 GTYTXP3_130 DP7_C2M_N Board to Board Connector 3 GTYTXN3_130 DP6_C2M_P Board to Board Connector 3 GTYTXP2_130 DP6_C2M_N Board to Board Connector 3 GTYTXN2_130 iWave Systems Technologies Pvt. Ltd. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 72 Board to Board Connector 2 PL_AM13_LVDS67_L23P LA18_N_CC Board to Board Connector 2 PL_AN13_LVDS67_L23N LA27_P Board to Board Connector 1 PL_J8_LVDS93_L2P LA27_N Board to Board Connector 1 PL_H8_LVDS93_L2N iWave Systems Technologies Pvt. Ltd. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 73 Board to Board Connector 2 PL_BB4_LVDS67_L6N LA09_P Board to Board Connector 2 PL_AV9_LVDS67_L10P_QBC LA09_N Board to Board Connector 2 PL_AV8_LVDS67_L10N_QBC LA13_P Board to Board Connector 2 PL_AP10_LVDS67_L14P_GC iWave Systems Technologies Pvt. Ltd. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 74 Board to Board Connector 2 JTAG_TDO 3P3VAUX VCC_3V3 Board to Board Connector 2 PS_JTAG_TMS TRST_L Board to Board Connector 2 3P3V VCC_3V3_FMC+ 3P3V VCC_3V3_FMC+ 3P3V VCC_3V3_FMC+ iWave Systems Technologies Pvt. Ltd. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 75 HA16_P HA16_N HA20_P HA20_N HB03_P HB03_N HB05_P HB05_N HB09_P HB09_N HB13_P HB13_N HB19_P HB19_N HB21_P HB21_N VADJ VCC_FMC+_ADJ iWave Systems Technologies Pvt. Ltd. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 76 Board to Board Connector 1 HA15_P HA15_N HA19_P HA19_N Board to Board Connector 1 HB02_P HB02_N HB04_P HB04_N HB08_P HB08_N HB12_P HB12_N HB16_P HB16_N iWave Systems Technologies Pvt. Ltd. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 77 Board to Board Connector 1 PL_G6_LVDS93_L1P LA25_N Board to Board Connector 1 PL_F6_LVDS93_L1N LA29_P Board to Board Connector 1 PL_J9_LVDS93_L3P LA29_N Board to Board Connector 1 PL_H9_LVDS93_L3N iWave Systems Technologies Pvt. Ltd. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 78 Board to Board Connector 2 PL_AT10_LVDS67_L12N_GC LA15_P Board to Board Connector 2 PL_AN12_LVDS67_L16P_QBC LA15_N Board to Board Connector 2 PL_AP12_LVDS67_L16N_QBC LA19_P Board to Board Connector 2 PL_AJ14_LVDS67_L24P iWave Systems Technologies Pvt. Ltd. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 79 Board to Board Connector 1 HA11_P Board to Board Connector 1 HA11_N Board to Board Connector 1 HA14_P HA14_N HA18_P Board to Board Connector 1 HA18_N iWave Systems Technologies Pvt. Ltd. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 80 HA06_P Board to Board Connector 1 HA06_N Board to Board Connector 1 HA10_P Board to Board Connector 1 HA10_N Board to Board Connector 1 HA17_P_CC HA17_N_CC iWave Systems Technologies Pvt. Ltd. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 81 Board to Board Connector 3 GTREFCLK0N_229 GBTCLK3_M2C_P Board to Board Connector 4 GTREFCLK0P_230 GBTCLK3_M2C_N Board to Board Connector 4 GTREFCLK0N_230 GBTCLK2_M2C_P Board to Board Connector 3 GTREFCLK0P_231 iWave Systems Technologies Pvt. Ltd. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 82 VCC_12V_FMC+ 12P0V VCC_12V_FMC+ DP23_M2C_P Board to Board Connector 4 GTHRXP3_228 DP23_M2C_N Board to Board Connector 4 GTHRXN3_228 DP22_M2C_P Board to Board Connector 4 GTHRXP2_228 iWave Systems Technologies Pvt. Ltd. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 83 Board to Board Connector 3 GTHTXP0_229 DP16_C2M_N Board to Board Connector 3 GTHTXN0_229 DP17_C2M_P Board to Board Connector 3 GTHTXP1_229 DP17_C2M_N Board to Board Connector 3 GTHTXP2_229 iWave Systems Technologies Pvt. Ltd. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 84 Board to Board Connector 3 GTHRXN2_231 DP12_M2C_P Board to Board Connector 4 GTHRXP0_230 DP12_M2C_N Board to Board Connector 4 GTHRXN0_230 DP14_M2C_P Board to Board Connector 4 GTHRXP2_230 iWave Systems Technologies Pvt. Ltd. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 85 GTHRXN1_229 DP19_M2C_P Board to Board Connector 3 GTHRXP3_229 DP19_M2C_N Board to Board Connector 3 GTHRXN3_229 HSPC_PRSNT_M2C_L NA DP22_C2M_P Board to Board Connector 4 GTHTXP2_228 iWave Systems Technologies Pvt. Ltd. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 86 Board to Board Connector 3 GTHTXP2_231 DP10_C2M_N Board to Board Connector 3 GTHTXN2_231 DP12_C2M_P Board to Board Connector 4 GTHTXP0_230 DP12_C2M_N Board to Board Connector 4 GTHTXN0_230 iWave Systems Technologies Pvt. Ltd. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 87 Note: * FMC+ connector supports VADJ 1.8V and 1.2V. By default, VADJ is set to 1.8V. Contact iWave for further details. * If VCC_FMC+_ADJ voltage changed from default value 1.8 to 1.2V, Please make sure that SOM concern IO voltage also to be iWave Systems Technologies Pvt.

  • Page 88: Additional Features

    B2B-1 220 pin. OUT8 GTREFCLK1P_226 B2B-1 218 pin. OUT9b GTREFCLK1N_227 156.25 MHz B2B-2 225 pin. OUT9 GTREFCLK1P_227 B2B-2 223 pin. iWave Systems Technologies Pvt. Ltd. Page Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 89: Table 18 Clock Synthesizer 2 Output Clocks

    B2B-3 A59 pin. GTREFCLK1N_229 OUT8 B2B-3 A60 pin. GTREFCLK1P_229 OUT9b GTREFCLK0P_128 100 MHz B2B-3 D2 OUT9 GTREFCLK0N_128 B2B-3 D3 pin. iWave Systems Technologies Pvt. Ltd. Page Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 90: Jtag Connector

    FMC connector. JTAG-HS2/ JTAG-HS3 programming cable can be plugged to this JTAG Header for programming and debuggin This JTAG Header (J8) is physically located at the top of the board as shown below. Figure 31: JTAG Connector iWave Systems Technologies Pvt. Ltd. Page Arrow.com.

  • Page 91: Table 19: Jtag Header Pin Assignment

    JTAG test data output. 49.9K PU Power Ground JTAG_TDI I, 3V3 LVCMOS JTAG test data input Power Ground Not Connected Power Ground JTAG_TRSTB Not Connected iWave Systems Technologies Pvt. Ltd. Page Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 92: Io Expanders

    I, 3.3V CMOS/ Connected to IO EXPANDER 3 4.7K PU IOEXP_FMC_LA16P IO, 1.8V CMOS Connected to FMC connector G18th pin OEXP_HDMI_TX_CEC I, 3.3V CMOS Connected from HDMI OUT iWave Systems Technologies Pvt. Ltd. Page Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 93: Table 21 Io Expander 2 Output

    B_M2_PCI_RST# 4.7K PU I, 3.3V CMOS/ Connected to M.2 PCIe Connector B_M2_PCI_WAK# 4.7K PU I, 3.3V CMOS/ Connected to PCIex 4 Connector B_PCI_CLKREQ# 4.7K PU iWave Systems Technologies Pvt. Ltd. Page Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 94: Table 22 Io Expander 3 Output

    Connected to FMC+ connector 10K PD B_FMC_PG_M2C I, 3.3V CMOS/ Connected to FMC connector 10K PD B_FMC+_PG_M2C I, 3.3V CMOS/ Connected to FMC+ connector 10K PD iWave Systems Technologies Pvt. Ltd. Page Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 95: I2C Expander

    IO EXPANDER 1 (0x20) IO EXPANDER 2 (0x21) SFP+ CONNECTOR ( 0x50/51) FMC+ I2C Bus Switch 3 CONNECTOR (0x51) CONNECTOR (0x52) Figure 32 I2C Tree iWave Systems Technologies Pvt. Ltd. Page Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 96: Gpio Header

    I, 1.8V LVCMOS CAN1 Receive data. Same pin can be configured as Gen Purpose Input/Output if required. This Pin is connected to 211 pin of Board to B Connector1 (J10). iWave Systems Technologies Pvt. Ltd. Page Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 97 SPI Master input Slave output. Same pin can be configure General Purpose Input/Output if required. This Pin is connected to 67 pin of Board to Board Connec (J19). Power Ground Power Ground iWave Systems Technologies Pvt. Ltd. Page Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 98: Power On/Off Switch

    The Zynq Ultrascale+ MPSoC Carrier board has power ON/OFF switch (SW2) to control the Main power Input ON/OFF functio power ON/OFF switch is physically located at the top of the board as shown below. Figure 34: Power On/Off Switch iWave Systems Technologies Pvt. Ltd. Page Arrow.com.

  • Page 99: Reset Switch

    (ZU11/17/19EG) CPU. Reset signal of Board to Board connector2 Pin 35 is directly connected from Reset Push button switch. Push button switch (SW1) is physically located at the top of the board as shown below. Figure 35: Reset Switch iWave Systems Technologies Pvt. Ltd. Page Arrow.com.

  • Page 100: Rtc Coin Cell Holder

    Zynq Ultrascale+ MPSoC (ZU11/17/19EG) SOM for RTC back up voltage when VCC main power is off Cell Holder (J32) is physically located at the bottom of the board as shown below. Figure 36: RTC Coin Cell Holder iWave Systems Technologies Pvt. Ltd. Page 1 Arrow.com.

  • Page 101: Fan Header

    Power Ground. ¹ Do not connect the SOM Heat Sink Fan to 12V FAN Connector in Carrier board. By Default iW-RainboW-G35D Zynq Ultrasca (ZU11/17/19EG) SOM Development platform comes with Heat Sink + Fan mounted on SOM itself. iWave Systems Technologies Pvt. Ltd.

  • Page 102: Technical Specification

    12.25V ±50mV VRTC_3V0¹ 3.15V ±20mV ¹ The Zynq Ultrascale+ MPSoC (ZU11/17/19EG) DevKit uses this voltage as backup power source to On-SOM PMIC RTC contr VCC is off. iWave Systems Technologies Pvt. Ltd. Page 1 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 103: Power Output Specification

    500mA To Pmod Connector2 VCC_3V3 3.15 3.45 500mA To GPIO Header VCC_5V 3.15 3.45 500mA VCC_1V8 1.75 1.85 200mA iWave Systems Technologies Pvt. Ltd. Page 1 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 104: Environmental Characteristics

    3.3.3 Electrostatic Discharge iWave’s Zynq Ultrascale+ MPSoC (ZU11/17/19EG) Development platform is sensitive to electro static discharge and so hig caused by static electricity could damage some of the devices on board. It is packed with necessary protection while shippi open or use board except at an electrostatic free workstation.

  • Page 105: Mechanical Characteristics

    3.4.1 Carrier Board Mechanical Dimensions The Ultra-High-Performance Carrier board PCB form factor is 140mm x 170mm and Board mechanical dimension is shown bel Figure 39: Carrier board Mechanical dimension – Top View iWave Systems Technologies Pvt. Ltd. Page 1 Arrow.com.

  • Page 106: Figure 40: Carrier Board Mechanical Dimension - Side View

    Connector (15.00mm) and bottom side maximum height component is SMA Connector (9.55mm). Please refer the below figure details of the Zynq Ultrascale+ MPSoC (ZU11/17/19EG) Carrier board. Figure 40: Carrier board Mechanical dimension – Side View iWave Systems Technologies Pvt. Ltd. Page 1 Arrow.com.

  • Page 107: Guidelines To Insert The Zynq Ultrascale+ Soc Som Into Carrier Board

    Press the SOM in to B2B connectors as shown below in the first photo such that the board is fixed firmly int connectors • To remove the SOM from carrier board, Lift the SOM as shown in the second photo Zynq Ultrascale+ SoC SOM Inserting Procedure Figure 41: iWave Systems Technologies Pvt. Ltd. Page 1 Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 108: Fan Sink Fixing Procedure On Som With Carrier Board

    3.4.3 FAN Sink Fixing procedure on SOM with Carrier Board The Ultra-High-Performance Carrier board and Zynq Ultrascale+ SOM with Fan sink fixing procedure is shown below. Figure 42: Zynq Ultrascale+ SOM with Fan sink fixing procedure iWave Systems Technologies Pvt. Ltd. Page 1 Arrow.com.

  • Page 109: Ordering Information

    ZU19EG (-3) MPSOC, 4GB PS DDR4 with ECC, Dual 4GB PL DDR4, 8GB Comme EMMC - Development kit with Linux Note: For Development platform identification purpose, Product part number is pasted as Label with Barcode readable format iWave Systems Technologies Pvt. Ltd. Page 1 Arrow.com. Arrow.com.

  • Page 110: Iwave Systems Technologies Pvt. Ltd

    Zynq-Ultrascale+ MPSoC (ZU11/17/19EG) SOM Development Platform Hardware User G iWave Systems Technologies Pvt. Ltd. Page 1 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

This manual is also suitable for:

Iw-g35d-19eg-4e004g-e008g-lcgIw-g35d-19eg-4e004g-e008g-lcf

Table of Contents
