TemperZone ISD 840KB-P Installation & Maintenance

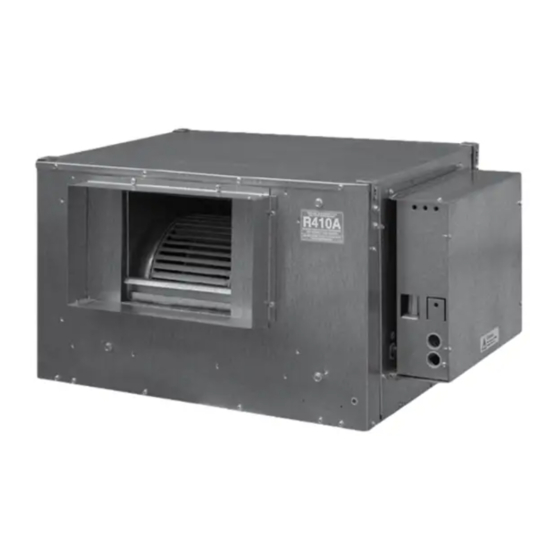

ISD 840/950 KB-P
Ducted Split System
Indoor Units

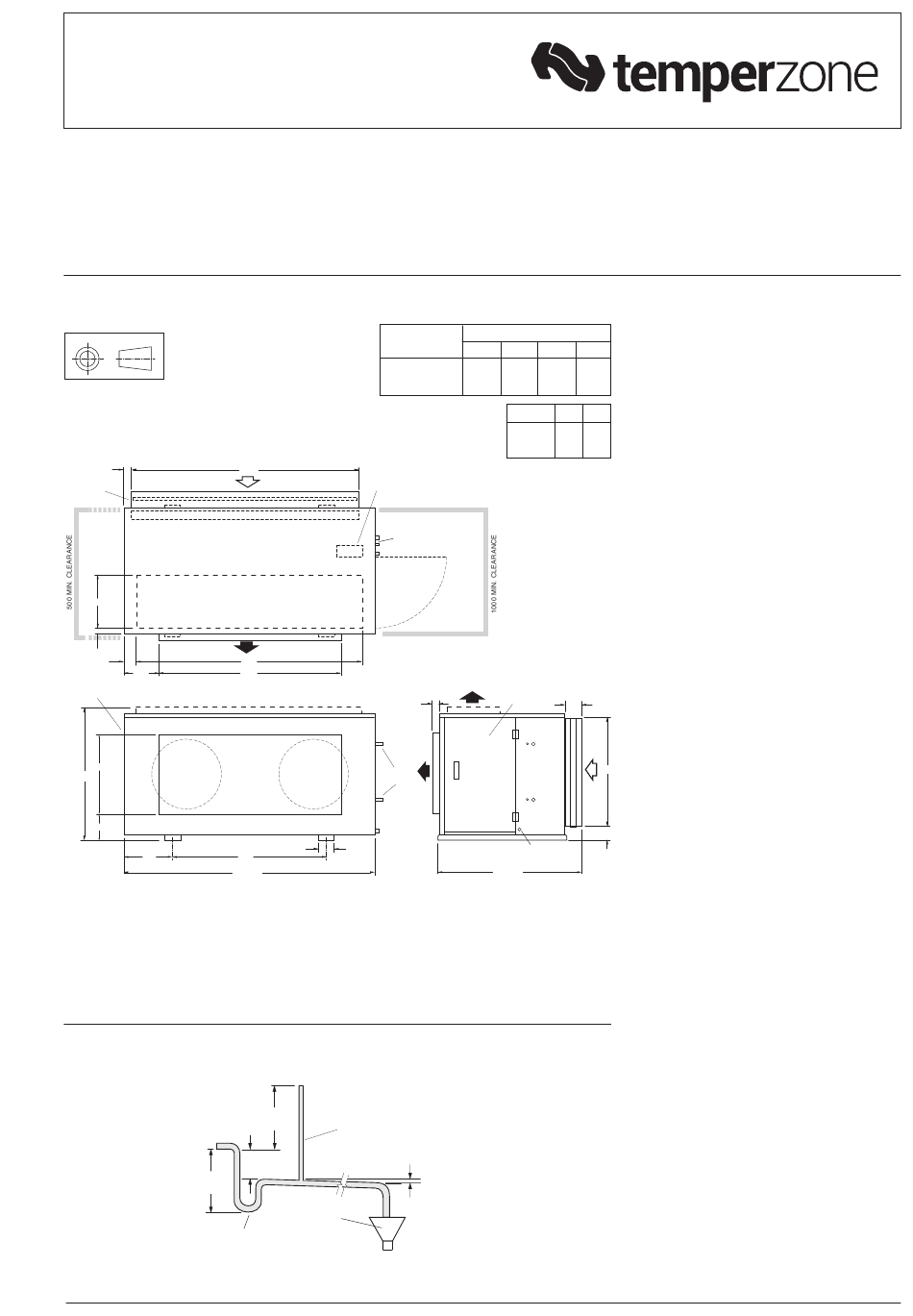

Fig.1 Dimensions (mm)
PROJECTION
Not to Scale
75
FILTER ACCESS
EITHER SIDE
W
470
50
Z
110
305
ACCESS PANEL
712
A
357
430
MOUNTING CENTRES
2220 OA
NOTE
The manufacturer reserves the right to
change specifications at any time without
notice or obligation. Certified dimensions
available on request.
Fig. 2
200 mm
APPROX.
'U' TRAP
(c/w Plug fan & EEV)
MODEL
ISD 840KB-P
ISD 950KB-P
2007
ELECTRICAL
BOX
X
REFRIGERANT
CONNECTIONS
Y
2005
1610
REFRIG.
CONN'S
105
1360
VENT PIPE
100 mm
FOR LONG
APPROX.
CONDENSATE
DRAIN RUNS
100 mm
MINIMUM
OPEN
DRAIN
CORNER LOADS (kg)
W X Y Z
19 31 184 168
58 84 156 155
MODEL A B
ISD 840K 1070 960
ISD 950K 1280 1165
ELECTRICAL
ACCESS
60
PANEL
150
DRAIN 28 OD
1260 OA
Net
Weight
ISD 840KB-P 402 kg
ISD 950KB-P 453 kg
Condensate Drain
MINIMUM
SLOPE
20 mm PER m
(1 IN 50)
Installation &
Maintenance
GENERAL
These ISD indoor units are designed to be
coupled with their respective OSA outdoor
units. Units must be installed in accordance
with all national and local safety codes.
There are two versions available:
1. Horizontal discharge (H)
2. Vertical discharge (V)
Combinations
One ISD 840KBH-P with one OSA 840RKTBG
One ISD 840KBH-P with one OSA 840RKTBG
One ISD 950KBV-P with one OSA 950RKTBG
One ISD 950KBV-P with one OSA 950RKTBG
Option
Filters
INSTALLATION
Unpacking
The unit's supply air spigot has been
secured inside the unit for ease of shipping.
Remove the spigot and secure it in place
using the existing screws.
Positioning & Mounting
Provide sufficient clearance to the access
panels.
Mount on a suitable level platform using
B
vibration isolators. Access to fixing centres
beneath the return air spigot can be made
via the removable bungs in the spigot's
base.
75
Condensate Drain
The unit has an internal sloping condensate
drain tray. The trap should have a vertical
height of at least 100 mm. The drain should
have a slope of at least 1 in 50 and must not
be piped to a level above the unit drain tray
(refer Fig.2).
For long condensate pipe runs, fit a vent
pipe near the drain trap. The top of the vent
pipe must be at least 100 mm above the ISD
unit's drain tray.
It is essential that the drainage system
for the evaporator is checked by pouring
water in the drain tray and seeing that it
discharges at the end of the drain and does
not overflow the drain tray.
INDOOR-OUTDOOR UNIT CONNECTIONS
Refer to the relevant OSA Outdoor Unit
'Installation & Maintenance' pamphlet for
piping instructions. For wiring connections,
refer to the Outdoor Unit wiring diagram.
