TemperZone ISD 570K Installation & Maintenance

ISD 570K, 670K
Ducted Split System
Indoor Units

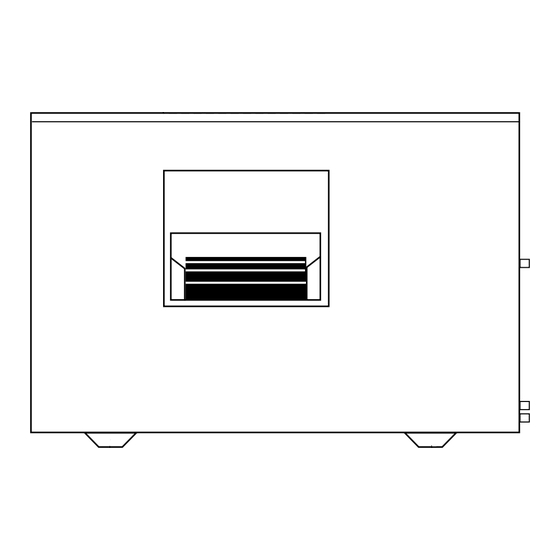

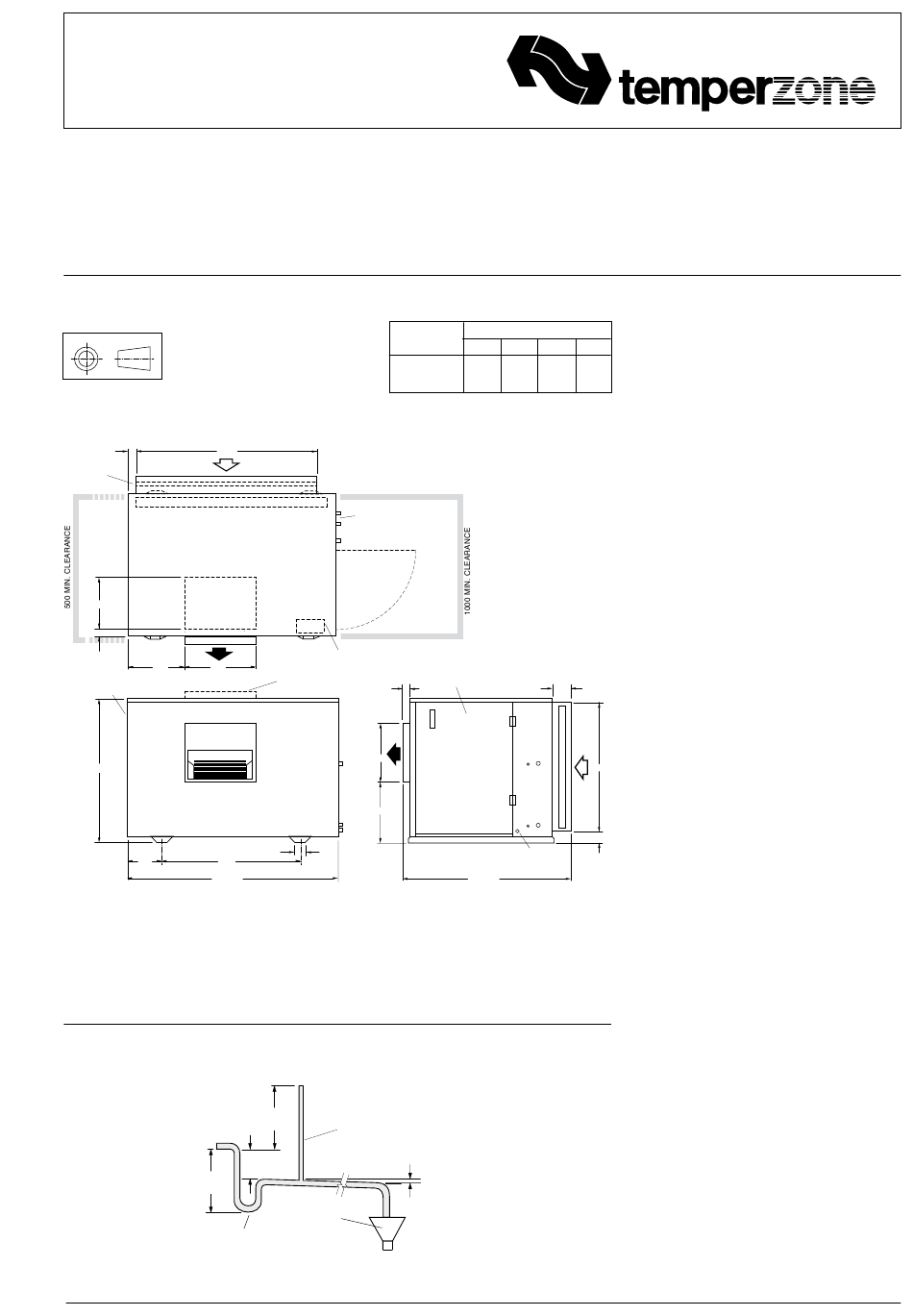

Fig.1 Dimensions (mm)
PROJECTION
Not to Scale
70
1435
FILTER ACCESS
EITHER SIDE
W
465
55
Z
445 565
ACCESS PANEL
1150 OA
1100
265
MOUNTING CENTRES
1650 OA
NOTE
The manufacturer reserves the right to change specifications at any time without notice or
obligation. Certified dimensions available on request.
Fig. 2
200 mm
APPROX.
'U' TRAP
MODEL
ISD 570K
ISD 670K
X
REFRIGERANT
CONNECTIONS
Y
ELECTRICAL
BOX
VERTICAL
DISCHARGE
60
MODEL
465
485
80
VENT PIPE
100 mm
FOR LONG
APPROX.
CONDENSATE
DRAIN RUNS
100 mm
MINIMUM
OPEN
DRAIN
CORNER LOADS (kg)
W X Y Z
75 92 119 47
81 100 121 48
Net
Weight
ISD 570K 333 kg
ISD 670K 350 kg
ELECTRICAL
ACCESS
PANEL
150
1020
90
DRAIN 28 OD
1345 OA
Condensate Drain
MINIMUM
SLOPE
20 mm PER m
(1 IN 50)
Installation &
Maintenance
GENERAL
These ISD indoor units are designed to be
coupled with their respective OSA outdoor
units. Units must be installed in accordance
with all national and local safety codes.
Combinations
One ISD 570K with one OSA 570RKTB
One ISD 670K with one OSA 670RKTB
Option
Filters
INSTALLATION
Unpacking
The unit's supply air spigot has been
secured inside the unit for ease of shipping.
Remove the spigot and secure it in place
using the existing screws.
Positioning & Mounting
Provide sufficient clearance to the access
panels.
Mount on a suitable level platform using
vibration isolators. Access to fixing centres
beneath the return air spigot can be made
via the removeable bungs in the spigot's
base.
Condensate Drain
The unit has an internal sloping condensate
drain tray. The trap should have a vertical
height of at least 100 mm. The drain should
have a slope of at least 1 in 50 and must not
be piped to a level above the unit drain tray
(refer Fig.2).
For long condensate pipe runs, fit a vent
pipe near the drain trap. The top of the vent
pipe must be at least 100 mm above the ISD
unit's drain tray.
It is essential that the drainage system
for the evaporator is checked by pouring
water in the drain tray and seeing that it
discharges at the end of the drain and does
not overflow the drain tray.
INDOOR-OUTDOOR UNIT CONNECTIONS
Refer to the relevant OSA Outdoor Unit
'Installation & Maintenance' pamphlet for
piping instructions. For wiring connections,
refer to the Outdoor Unit wiring diagram.
REFRIGERATION PIPING
Pipe Connection Sizes & Type
Liquid : 13 mm OD ( 1 / ") sweat
2
Suction : 28 mm OD (1 / ") sweat
1
8
The ISD is shipped from the factory with
a pressurised holding charge of nitrogen.
