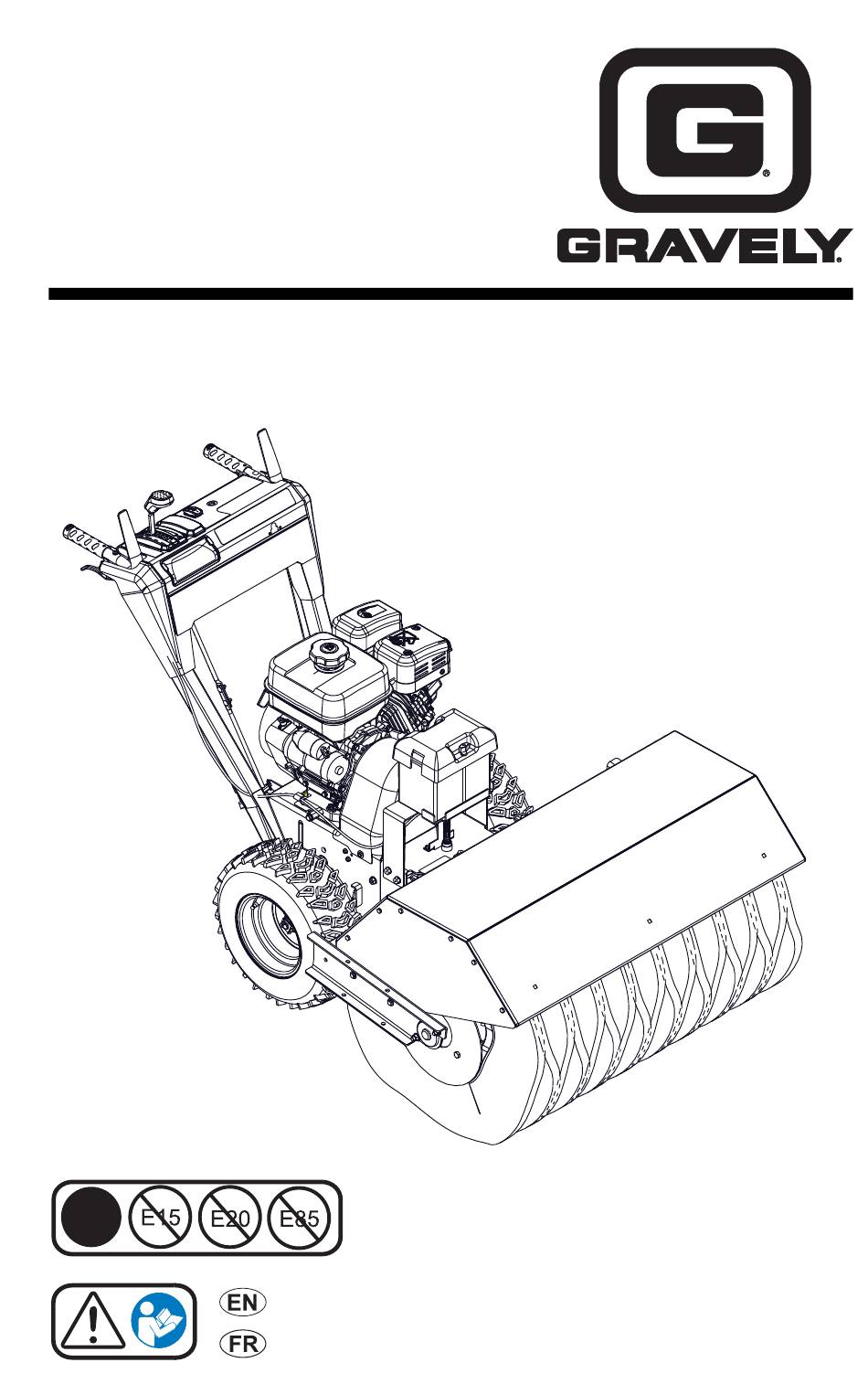

Hydro Brush
36
Operator's Manual
Manuel de I'utilisateur
Model
926064 – Hydro Brush 36 12V
(SN 000101 +)
E10
ENGLISH
•
04956200A
8/15
FRANÇAIS
Printed in USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 926064 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gravely 926064

Summary of Contents for Gravely 926064

  • Page 1 ® Hydro Brush Operator’s Manual Manuel de I’utilisateur Model 926064 – Hydro Brush 36 12V (SN 000101 +) ENGLISH • 04956200A 8/15 FRANÇAIS Printed in USA...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS WELCOME ..... . 1 STORAGE ..... . . 20 Short Term.

  • Page 3: Welcome

    WELCOME Congratulations on your purchase and welcome to the Gravely family! Every power brush in the Gravely lineup is designed for long-lasting and unsurpassed performance. We are confident your machine will be part of your family for many years to come.

  • Page 4: Safety

    1. Danger SAFETY DANGER: Indicates an Read these safety rules and follow them IMMINENTLY HAZARDOUS closely. Failure to follow these rules could SITUATION! If not avoided, lead to loss of control of unit, severe personal WILL RESULT in death or injury or death to you or bystanders, or result serious injury.
  • Page 5 Safety Decal Locations Wear appropriate hearing and eye protection. Wear a dust particle mask while operating in dusty conditions. 07800330 2. CAUTION! CAUTION! Be sure to engage the traction drive clutch first. Engaging the attachment 07800331 clutch before traction drive clutch can cause the unit to Figure 2 travel backwards.

  • Page 6: Safety Rules

    Preparation 4. DANGER! ALWAYS check overhead and side clearances carefully before operation. DANGER! ALWAYS be aware of traffic when operating near streets or along curbs. Thoroughly inspect the area where the equipment is to be used and remove all doormats, sleds, boards, toys, wires and Avoid injury - Stay clear of other foreign objects.
  • Page 7 Adjust brush height before operating. NEVER operate the unit without proper Engage traction drive clutch before guards, and other safety protective devices attachment clutch. If brush is set too low or if in place and working. terrain is irregular, brush can drive machine ALWAYS stand clear of the discharge area rearward.
  • Page 8 DO NOT wear loose clothing or jewelry, and Maintenance and Storage tie back hair that may get caught in rotating Secure unit so it will not tip over during parts. maintenance. NEVER attempt to clear obstructions or Before cleaning, removing obstructions or clean unit while engine is running.
  • Page 9 NEVER fill fuel containers inside a vehicle or Battery on a truck or trailer bed with a plastic liner. Avoid electric shock. Objects contacting ALWAYS place containers on the ground both battery terminals at the same time may away from your vehicle before filling. result in injury and unit damage.

  • Page 10: Controls & Features

    CONTROLS & FEATURES Figure 3 1. Traction Drive Clutch Lever 12. Choke Control Lever 2. Attachment Clutch Lever 13. Throttle Control Lever 3. Speed Selector Lever 14. Fuel Valve 4. Brush Lock Trigger 15. Engine Key 5. Brush Guard 16. Oil Fill/Dipstick 6.

  • Page 11: Engine Key

    THROTTLE CONTROL LEVER WARNING: Read and See Figure 7. understand the Safety section Controls engine speed. before proceeding. See Figure 3 for all controls and features locations. ENGINE KEY See Figure 4. Controls power to the engine. The key cannot Idle be removed when in run position.

  • Page 12: Traction Drive Clutch Lever (Left Side)

    TRACTION DRIVE CLUTCH OPERATION LEVER (LEFT SIDE) See Figure 10. Allows unit to travel forward and in reverse. WARNING: AVOID INJURY. Read and understand the Safety section before proceeding. IMPORTANT: All references to left, right, front or rear are given from the perspective of operator in operator’s position, facing the direction of forward travel.

  • Page 13: Operate Unit

    5. Gradually turn choke off as engine SET BRUSH HEIGHT warms. CAUTION: AVOID INJURY. If Manual Start brush height is too low, brush 1. Turn fuel valve to on position can drive machine rearward 2. Move choke control lever to on position. when attachment clutch is 3.

  • Page 14: Set Brush Angle

    2. Raise brush: a. Remove lynch pins from caster shaft tops. b. Remove desired amount of height adjuster clips from caster shaft tops and install onto lower caster shaft ends. c. Turn height adjuster clips so they DO NOT align with flat side of caster shafts.

  • Page 15: Transport Unit

    6. Disconnect brush lock cable from J-clamp WARNING: Read and on engine mount. understand the Safety section before proceeding. Your Gravely dealer can provide service and adjustments to keep your unit operating at peak efficiency. Contact an authorized engine manufacturer’s service center for engine service.
  • Page 16 See Figure 18. 7. Remove hardware securing brush lock trigger to handlebar and allow trigger to rest on brush attachment. 1. Machine Screw 2. Lock Washer 1. Hex Head Screw 3. Brush Lock Trigger 2. Mount Rod Figure 18 3. Mount Bracket Figure 19 WARNING: ALWAYS support unit frame and brush attachment...

  • Page 17: Return Unit To Operating Position

    3.2 mm (1/8") Figure 21 9. Reinstall belt cover and tighten hardware. 10. Reinstall brush lock trigger onto 1. Bottom Cover handlebars and route brush lock cable 2. Attachment Sheave through J-clamp on engine mount. 3. Engine 11. Adjust attachment clutch. See Adjust Attachment Clutch on page 18.

  • Page 18: Maintenance Schedule

    Use a clip-on chuck and extension SERVICE PARTS hose long enough to allow you See your Gravely dealer to purchase service to stand to one side. parts for your unit. • DO NOT mount a tire without...

  • Page 19: Lubricate Unit

    See Figure 23. high ambient temperatures, dusty conditions or airborne debris). LUBRICATE UNIT Gravely recommends using Gravely Hi-Temp Grease or equivalent (see Service Parts on page 16) to lubricate fittings. Lubricate each season or every 25 hours of operation. IMPORTANT: Wipe each fitting clean before and after lubrication.

  • Page 20: Adjustments

    9. Reinstall hairpin in trunnion. 10. Tighten jam nut against trunnion. 11. Lower unit to ground. 1. Bell Crank Figure 25 2. Hairpin 3. Trunnion 3. Return unit to operating position. See 4. Shift Rod Return Unit to Operating Position on 5.

  • Page 21: Adjust Traction Drive Clutch

    Check Belt Finger Clearance See Figure 29. With the attachment clutch and traction clutch engaged, the belt finger located opposite the belt idler must be less than 3.2 mm (1/8") from belts, but must not touch the belts. To adjust belt finger: 1.

  • Page 22: Storage

    Add the stabilizer to the frame. See Figure 31. container before adding fuel. a. Add Gravely fuel stabilizer (see Service Parts on page 16) or equivalent according to manufacturer's instructions to the fuel tank and any fuel containers with remaining fuel.

  • Page 23: Start-Of-Season Fuel Preparation

    Before opening the fuel valve for the first time after long-term storage, add fresh, stabilizer- treated fuel to the fuel tank and any fuel containers with remaining fuel. ACCESSORIES See your Gravely dealer for a complete list of compatible accessories and attachments for your unit. Description Part No.

  • Page 24: Troubleshooting

    Move choke control lever to off position. and start engine. See Move Unit Manually on page 12. Engine is faulty. See your Gravely dealer or authorized engine manufacturer’s service center. Fuel mixture is too rich. Move choke control lever to off position.
  • Page 25 See your Gravely dealer. Attachment drive belt is loose or Replace belt or adjust attachment control damaged. cable. See your Gravely dealer. Belt squeals Attachment clutch needs See Adjust Attachment Clutch on continuously. adjustment. page 18.

  • Page 26: Specifications

    SPECIFICATIONS Model Number 926064 Engine Engine Model Subaru EX30 287 (17.52) Displacement – cc (in Maximum RPM – No Load 3800 ± 100 Starter 12V Electric and Recoil Fuel Refer to Engine Manual Tank Capacity – L (qt) 6.1 (6.3) Brush Clearing Width –...

  • Page 27: Warranty

    , Sno-Tek ® and Chore Performing Equipment Limited Warranty Warranty Ariens Company (Ariens) warrants to the original purchaser that Ariens, Gravely, Parker, and Countax ® ® brand chore performing equipment (including Sno-Thro and Sno-Tek equipment) purchased on or after 1/1/2015 will be free from defects in material and workmanship for the time period noted in the chart below.
  • Page 28 To obtain warranty service, the original purchaser must: • Perform the maintenance and adjustments explained in the Owner's Manual. • Promptly notify Ariens or an authorized Ariens, Gravely, Parker or Countax service representative of the need for warranty service. • Transport the product to and from the place of warranty service at owner's expense.
  • Page 29 Exclusions – Items Not Covered by This Warranty • Parts that are not genuine Ariens, Gravely, Parker or Countax service parts are not covered by this warranty and may void the warranty. • Damages resulting from the installation or use of any part, accessory, or attachment which is not approved by the Ariens Company for use with product(s) identified herein are not covered by this warranty.
  • Page 30 655 West Ryan Street Brillion, WI 54110 gravelymower.com gravely.custhelp.com...
