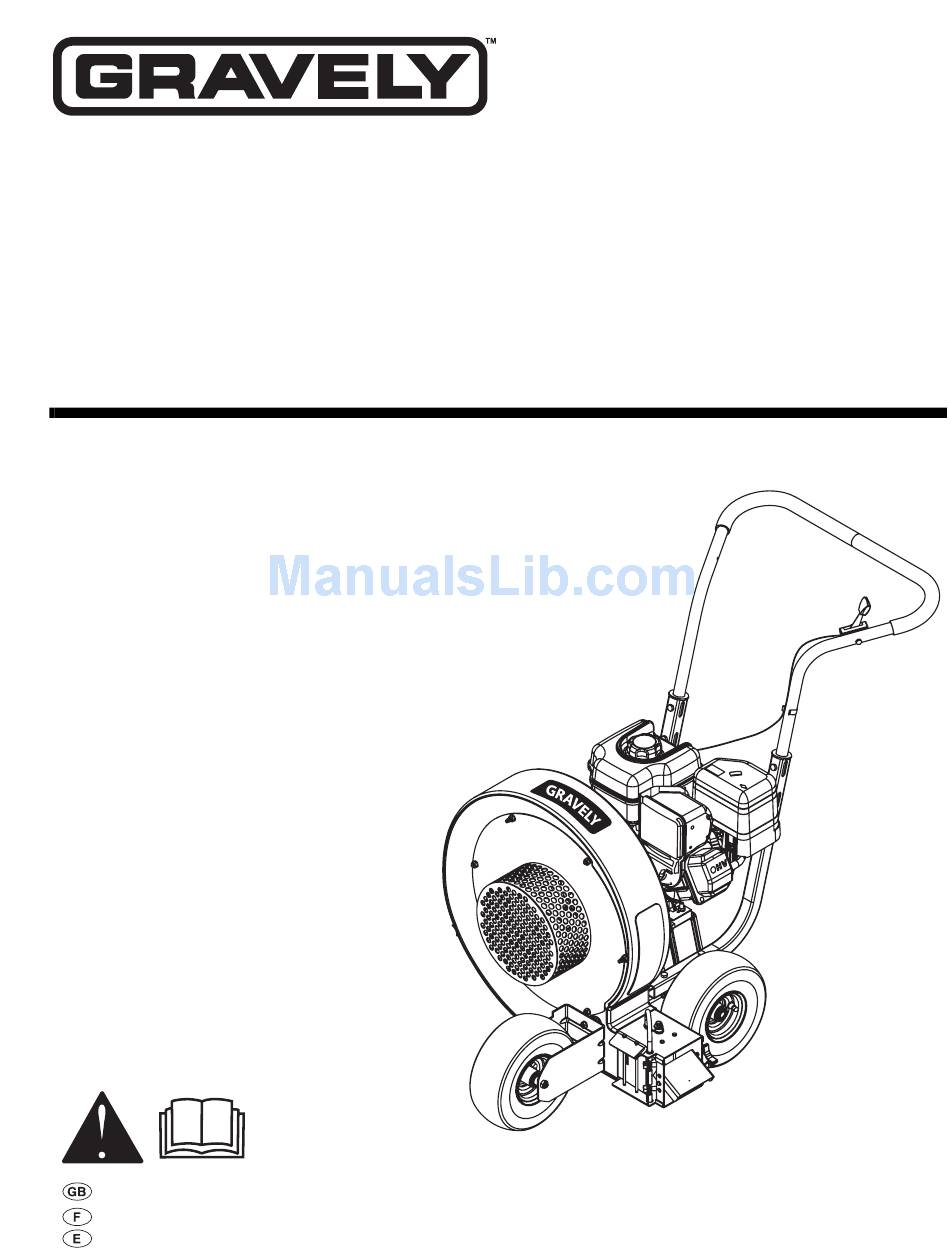

Blower
Owner/Operator Manual
Manuel de l'opérateur
Manual del propietario/operador
Models
947030 - 5hp Honda Blower
947031 - 8hp Briggs & Stratton Blower
947032 - 9hp Honda Blower
947033 - 13hp Honda Blower
Modèles
947030 - Soufflante à moteur Honda 5 ch
947031 - Soufflante à moteur Briggs & Stratton 8 ch
947032 - Soufflante à moteur Honda 9 ch
947033 - Soufflante à moteur Honda 13 ch
Modelos
947030 - Soplador con motor
Honda de 5 H.P.
947031 - Soplador con motor
Briggs & Stratton
de 8 H.P.
947032 - Soplador con motor
Honda de 9 H.P.
947033 - Soplador con motor
Honda de 13 H.P.
ENGLISH
FRANÇAIS
ESPAÑOL
04707900 10/06
Printed in USA
Advertisement
Table of Contents
Related Manuals for Gravely 947030
Summary of Contents for Gravely 947030
- Page 1 947032 - 9hp Honda Blower 947033 - 13hp Honda Blower Modèles 947030 - Soufflante à moteur Honda 5 ch 947031 - Soufflante à moteur Briggs & Stratton 8 ch 947032 - Soufflante à moteur Honda 9 ch 947033 - Soufflante à moteur Honda 13 ch...
-
Page 2: Table Of Contents
A. Introduction DELIVERY On behalf of everyone at Gravely, we would like to thank you for your purchase of a Gravely Gasoline Customer Note: If you have purchased this product Powered Blower. This professional blower was... -
Page 3: Safety
SAFETY SAFETY DECALS AND LOCATIONS WARNING: Improper use or care of this An important part of the safety system incorporated in blower, or failure to wear proper protection this blower are the warnings and informational decals can result in serious injury. found on various parts of the blower. -
Page 4: Safety Rules
Always wear eye and ear protection. Do Not attempt to repair blower - Have repairs made by qualified Gravely dealer or repairman. See that only Gravely and recommended engine manufacturer’s replacement parts are used. -
Page 5: Assembly
Insert 3/8-16 x 5 1/4 axle bolt (50) through wheel bracket and axle sleeve. Secure with 3/8-16 axle nut (49). WARNING: All Gravely blowers are shipped without oil. When filling oil - use SAE 30 oil. Refer to engine manufacturer’s instruction manual for proper engine operation instructions. -
Page 6: Operation
Refer to Engine Manual for Engine Operation. windrowing or to blow over obstacle, point deflector upward. Gravely recommends using SAE 30 Oil. The use of multi-viscosity oil will result in high oil consumption and Slight changes in deflector will have a big effect on air possible engine damage. -
Page 7: Accesssories
Interior deflector to hook 10-32 x 5/8 flange head gr 5 04707200 4.3 (52) 5.9 (71) Fan to crankshaft (947030) 5/16-24 x 1-3/4 hex head bolt gr 8 04705600 16 (190) 18 (220) Fan to crankshaft (947031, 3/8 - 24 x 1-3/4 flange head gr 8... -
Page 8: Warranty
1000 hours of use, whichever comes first. An upon examination by the Ariens Company to be defective or authorized Gravely dealer will repair any defect in material or worn out. Replacements will be supplied free of charge. - Page 9 • Warranty service must be performed by a respective Ariens or Gravely authorized service representative. • Parts that are not genuine Ariens or Gravely brand service parts are not covered by this warranty. • To find an Ariens or Gravely authorized service representative, contact Ariens at: •...
- Page 11 PARTS LIST / LISTE DES PIÈCES / LISTA DE COMPONENTES INTAKE AND FAN / ADMISSION ET VENTILATEUR / ABASTO DE AIRE Y TURBINA 947030 947031 Item Part No. 947032 947033 Qty. / Qty. / Description / Description / Descripción Qty. / Qté.
- Page 12 ENGINE AND FRAME / MOTEUR ET CHÂSSIS / MOTOR Y ARMAZÓN Parts/Pièces/Piezas - ii...
- Page 13 Item 947032 947033 947030 947031 Part No. Qty. / Qty. / Qty. / Qty. / Description / Description / Descripción de pièce Qté. / Qté. / Qté. / Qté. / ref. Comp. Cant. Cant. Cant. Cant. Ref. 06530200 5/16-18 Nylon Insert Nut / Écrou à...
- Page 14 BLOWER HOUSING / CARTER DE LA SOUFFLANTE / BASTIDOR DEL SOPLADOR Parts/Pièces/Piezas - iv...
- Page 15 13 HP Housing / Carter 13 ch / Bastidor 13 H.P. 04703500 Gravely Housing Label - 5 HP / Étiquette de carter Gravely - 5 ch / Etiqueta Gravely en el bastidor - 5 H.P. 04703600 Gravely Housing Label - 8 HP / Étiquette de carter Gravely - 8 ch /...
- Page 16 GRAVELY 655 West Ryan Street P.O. Box 157 Brillion, WI 54110-0157 920-756-2141 Fax 920-756-2407 www.gravely.com...
