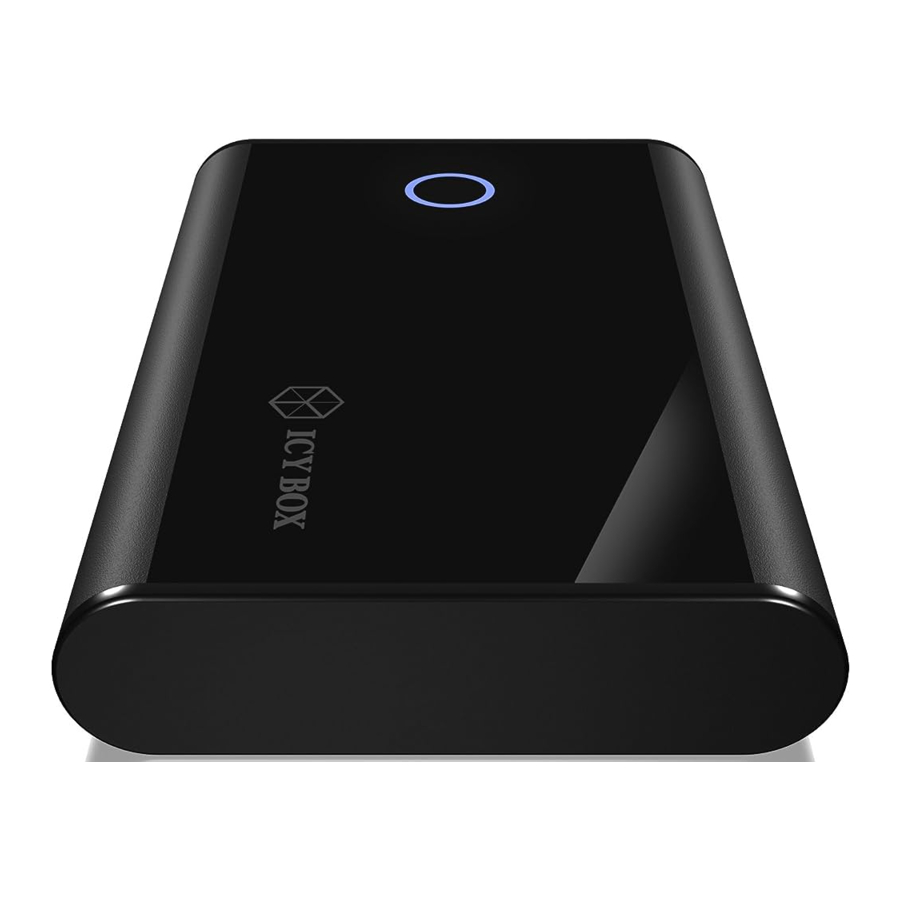

Icy Box IB-373U3 - External Enclosure For 3,5" HDDs Manual

Model – HDD – Interface - Colour

Package contents

IB-373U3, Manual, USB 3.0 cable, Power Adapter

Key Features

• External case for 1x 3.5" SATA HDD/SSD
• USB 3.0 Host Interface 5 Gbit/s with UASP Support
• Supports SATA III up to 6 Gbit/s
• Supports: Windows & Mac OS
• Backwards compatible with USB 2.0
• AC Power Adapter (100 –240 V), 12 V / 2 A, 24 W

HDD Installation

During the HDD assembly all cabling has to be disconnected from the computer.

1. Push the top cover in the direction as illustrated to take it out.

2. Push the hook and pull out the front panel in the direction as illustrated to take front panel out (the hook is beside the concave rectangular)

3. Turn the back of product body, then pull out the aluminum case. (Notice: don't touch the PCBA)

4. Install HDD in the direction as illustrated. Please connect the ports between HDD and PCBA tightly. (as circle showed)

5. Lock screws on both sides of HDD firmly. (Notice: don't touch the PCBA)

6. Replace the aluminum case in the direction as illustrated. (Notice: don't touch the PCBA)

7. Turn the back of product body. Replace the front panel with hook and push two sides tightly. (the concave rectangular is in the circle as illustrated)

8. Replace the top cover and push it in the direction as illustrated.


Application

1. The external HDD can be connected to or disconnected from the computer via USB cable without shutting down the computer.
2. Please await the end of read/write operations before disconnecting the HDD to avoid data lost.
3. A new HDD must first be initialised, partitioned and formatted by the operation system to be displayed by the system.
4. If the hard disc isn't recognised instantly by the operating system please check:
   • if the driver software is installed (USB),
   • if the HDD is initialised, partitioned and formatted.
