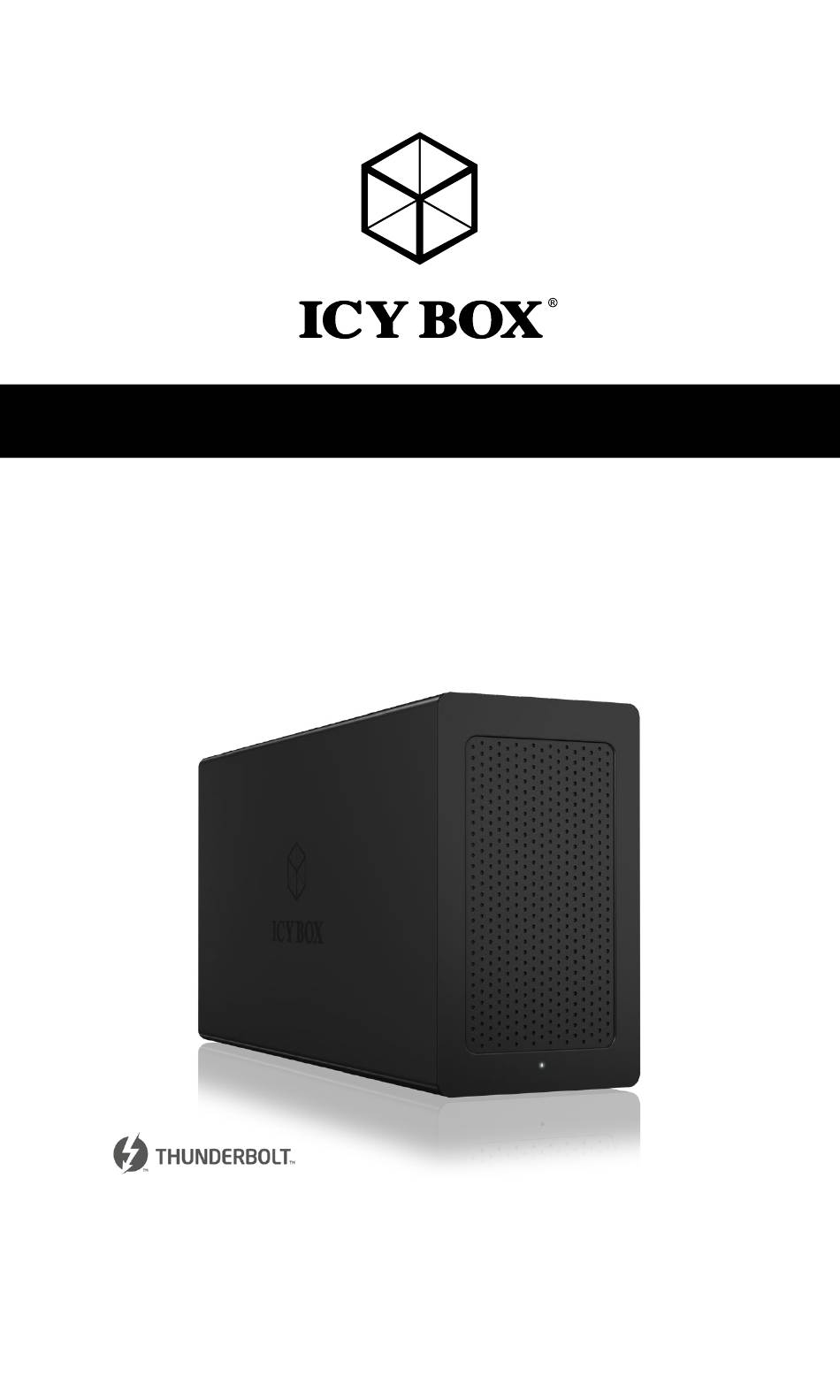

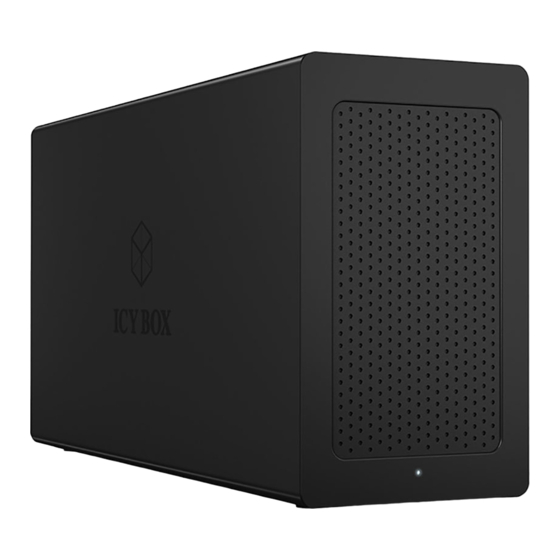

- Page 1 Manual IB-3101-TB3 Thunderbolt 3 Type-C PCIe expansion enclosure ™ ™ Manual IB-3101-TB3 Thunderbolt 3 DockingStation mit Power Delivery ™...
- Page 2 Safety information IB-3101-TB3 Please read carefully the following information to prevent injuries, damage to material and device as well as data loss: Warning levels Signal words and safety codes indicate the warning level and provide immediate information in terms of the probability of occurrence as well as the type and severity of the consequences if the measures to prevent hazards are not complied with.
- Page 3 Safety information IB-3101-TB3 7. Disposing of the device Environmental pollution, unsuitable for recycling IMPORTANT Potential environmental pollution caused by components, recycling circle interrupted This icon on product and packaging indicates that this product must not be disposed of as part of domestic waste.
-
Page 4: Front View
Manual IB-3101-TB3 Introduction The use of additional PCIe cards is popular and well spread thanks to many advantages. But whoever wants to take this advantage, often feels restricted as notebooks can’t fulfil this requirement at all. That is where the IB-3103-TB3 comes to help and converts e.g. - Page 5 Manual IB-3101-TB3 Connection with displays In the upcoming 3 connection figures, the highest supported resolution is listed for each configuration. However, max resolutions supported are still subject to the capabilities of your notebook´s or computer´s graphic unit. Furthermore, the Thunderbolt 3 connection has a maximum bandwidth of 40 Gbit/s.
- Page 6 Manual IB-3101-TB3 Connection figure 3 The dedicated DisplayPort requires a Thunderbolt 3 connection to the computer and will free up the second Thunder- ™ ™ bolt 3 port for Thunderbolt 3 (for 5 additional devices in daisy chain). ™ ™ 4K @ 60 Hz DisplayPort ™...
-
Page 7: Installation
Manual IB-3101-TB3 Installation Follow the steps to set up the Thunderbolt 3 Type-C PCIe expansion enclosure. ™ ™ 1. Loosen the marked thumbscrews until they pop out. They remain on the housing independently. 2. Remove the housing from the chassis by gently pulling and sliding. - Page 8 Manual IB-3101-TB3 4. Align the connectors on the card with the card slot. Press the card down until it is fully seated. lmportant! The PCle card should fit easily into the chassis PCIe card slot. Don‘t use too much force to press the card down into the slot.
- Page 9 Manual IB-3101-TB3 7. Connect the provided power supply unit to the enclosure. The device will power on automatically when the Thunderbolt 3 cable is ™ connected. Usage • Connect the provided cable of the Thunderbolt 3 Type-C PCIe expansion enclosure to your Thunderbolt ™...
- Page 10 © Copyright 2019 by RaidSonic Technology GmbH. All Rights Reserved. The information contained in this manual is believed to be accurate and relia- ble. RaidSonic Technology GmbH assumes no responsibility for any errors conta- ined in this manual. RaidSonic Technology GmbH reserves the right to make ch- anges in the specifications and/or design of the above mentioned product without prior notice.
