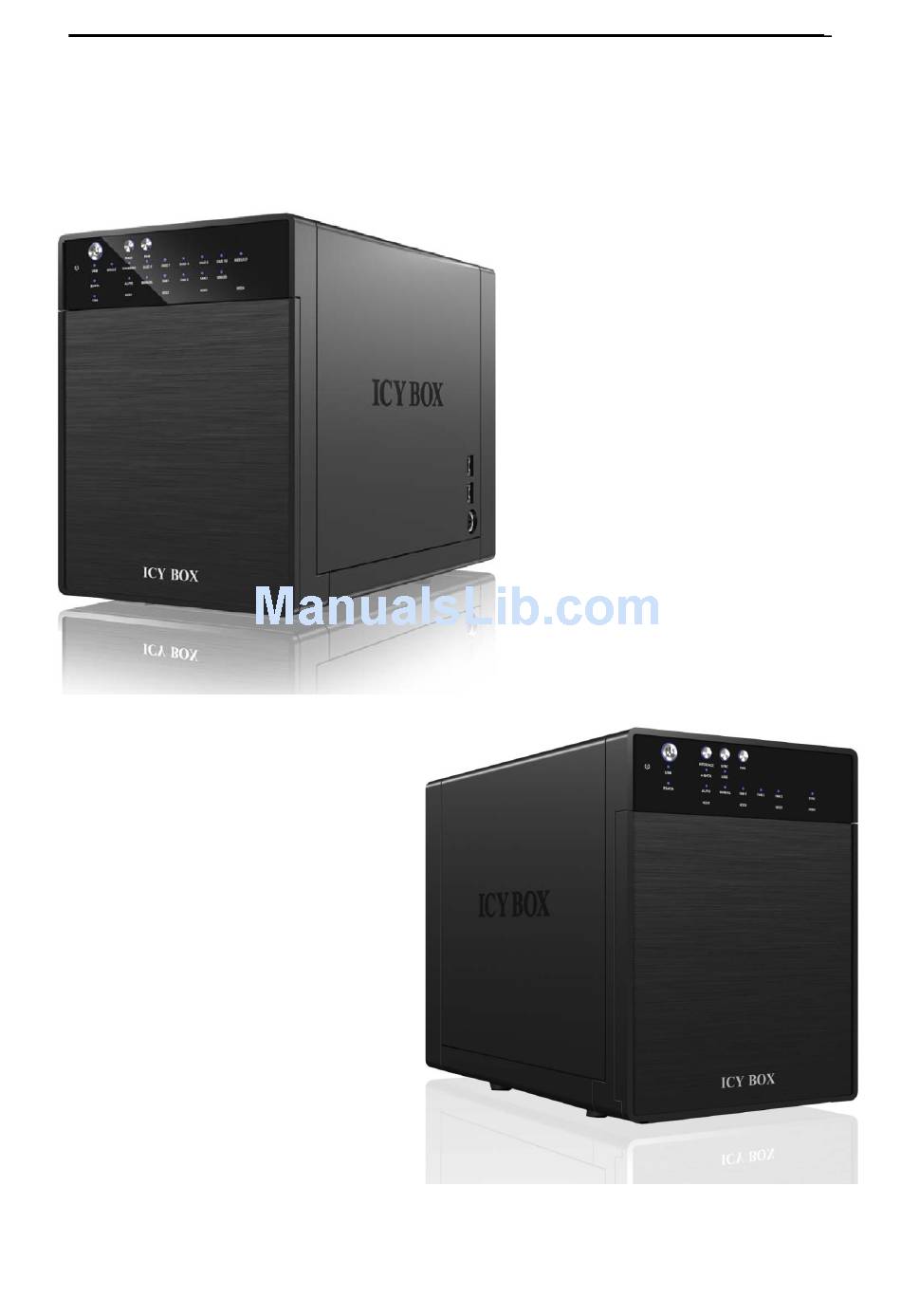

- Page 1 Version 1.1 Manual IB-3640 Series IB-RD3640SU3E2/SU3 IB-3640SU3...
-
Page 2: Table Of Contents
Version 1.1 Manual IB-3640 Series 1. Introduction ..................................3 ONTENT 1.1 General Information ............................. 3 2. Hardware IB-3640 Series............................4 2.1 Front View LED Indication ..........................4 2.2 Rear View .................................. 6 2.3 Side View ................................... 6 3. HDD Installation ................................ 7 4. -
Page 3: Introduction
Version 1.1 Manual IB-3640 Series 1. I NTRODUCTION 1.1 G ENERAL NFORMATION 1.1.1 Usage cautions User should not modify this device. The environmental temperature should be within +5℃ ~ +35℃. Note: Port multiplier at host computer needed, if connected via eSATA Power voltage: DC 12 V. -
Page 4: Hardware Ib-3640 Series
Version 1.1 Manual IB-3640 Series Avoid hitting the device with hard object, avoid shaking the player, and stay away from magnetic fields. During electrostatic discharge and the strong electromagnetic field, the product will malfunction, and then unplug the power cable and the product will return to normal performance next time it is powered on. - Page 5 Version 1.1 Manual IB-3640 Series 14. Fan speed level 3 higher man ss rc 2,500rpm ~ 3,500rpm 16.-19. HDD1 / HDD2 / HDD3 / HDD4 blue active purple access IB-RD3640SU3E2 /SU3 16 17 18 19 20 21 1. Blue Power on Orange Sleep mode 2.
-
Page 6: Rear View
Version 1.1 Manual IB-3640 Series 21. HDD error When any of HDD1 to HDD4 has an error, HDD error is on. Remark! LED doesn't function in Single mode. 22.-25. HDD1 /HDD2 / HDD3 / HDD4 Blue active Purple access rebuild 2.2 R IB-RD3640SU3E2 IB-RD3640SU3 / IB-3640SU3... -
Page 7: Hdd Installation
Version 1.1 Manual IB-3640 Series 3. HDD I NSTALLATION - Please use the provided screws to secure the handles to the 4 HDDs. - Open the front door. - Press down the tabs (1) of metal frame to unlock and remove it. - Take the transport paper board out of the device. -
Page 8: Setting/Changing The Raid Mode
Version 1.1 Manual IB-3640 Series 4. S RAID ETTING HANGING THE MODE IB-RD3640SU3E2 /SU3 REMARK: Default setting is RAID 5 mode. - For RAID mode setup, users need to press and HOLD the RAID button (1) at the front for 3 seconds until the LEDs are flashing. - Page 9 Version 1.1 Manual IB-3640 Series...
- Page 10 Version 1.1 Manual IB-3640 Series...
-
Page 11: Disk Initialisation
Version 1.1 Manual IB-3640 Series 5. D NITIALISATION 5.1 W 2000 / XP (32/64 INDOWS If the HDD is uninitialized, you may have to initialize it by doing steps as followed: - At first click "Start", “Execute" at your PC and key in "diskmgmt. msc". - After that please press "RETURN"... -
Page 12: Windows Vista (32/64 Bit)
Version 1.1 Manual IB-3640 Series 3. Disk format completed. 5.2 W (32/64 INDOWS ISTA If the HDD is uninitialized, you may have to initialize it by doing steps as followed: - At first click "Start", “Execute" at your PC and key in "diskmgmt. msc". - After that please press "RETURN"... -
Page 13: Windows 7 (32/64 Bit)
Version 1.1 Manual IB-3640 Series 2. Create new partition and format disk. 3. Disk format completed. 5.3 W 7 (32/64 INDOWS If the HDD is uninitialized, you may have to initialize it by doing steps as followed: - At first click "Start", “Execute" at your PC and key in "diskmgmt. msc". - After that please press "RETURN"... - Page 14 Version 1.1 Manual IB-3640 Series 1. Start disk initialization. Remark: Please enable GPT if the total capacity is more than 2 TB and enable MBR if the total capacity is less than 2 TB. 2. Create new partition and format disk. 3.
-
Page 15: Macintosh O.s. 10.X
Version 1.1 Manual IB-3640 Series 5.4 M O.S. 10.X ACINTOSH If the HDD is uninitialized, you may have to initialize it by doing steps as followed: 1. Click Disk Utility icon 2. HDD initialise… 3. Click Erase... - Page 16 Version 1.1 Manual IB-3640 Series 4. Click Erase 5. HDD format in process 6. Format completed...
-
Page 17: References
Version 1.1 Manual IB-3640 Series 6. R EFERENCES Changing the RAID mode will cause data lost. Please refer to the instructions when switching the RAID mode, otherwise the execution might fail. Interface of USB / eSATA / (Firewire) cannot be used at the same time. When using the RAID function, HDD’s with the same brand, model and capacity is strong recommended. - Page 18 Version 1.1 Manual IB-3640 Series Level 1: below 45 °C 1,200rpm ~ 1,800rpm Level 2: 45 °C ~ 54 °C 1,800rpm ~ 2,500rpm Level 3 : higher than 55 °C 2,500rpm ~ 3,500rpm Operation System: Windows XP (32/64bit) (with MBR enabled, supports total capacity up to 2 TB ) Vista (32/64bit) / Windows 7 (32/64bit) (with GPT enabled, supports total capacity more than 2TB ) Macintosh 10.X or later...
- Page 19 Version 1.1 Manual IB-3640 Series the information contained in this manual was correct at the time of publication. However, as our engineers are always updating and improving the product, your device’s software may have a slightly different appearance or modified functionality than presented in this manual.
