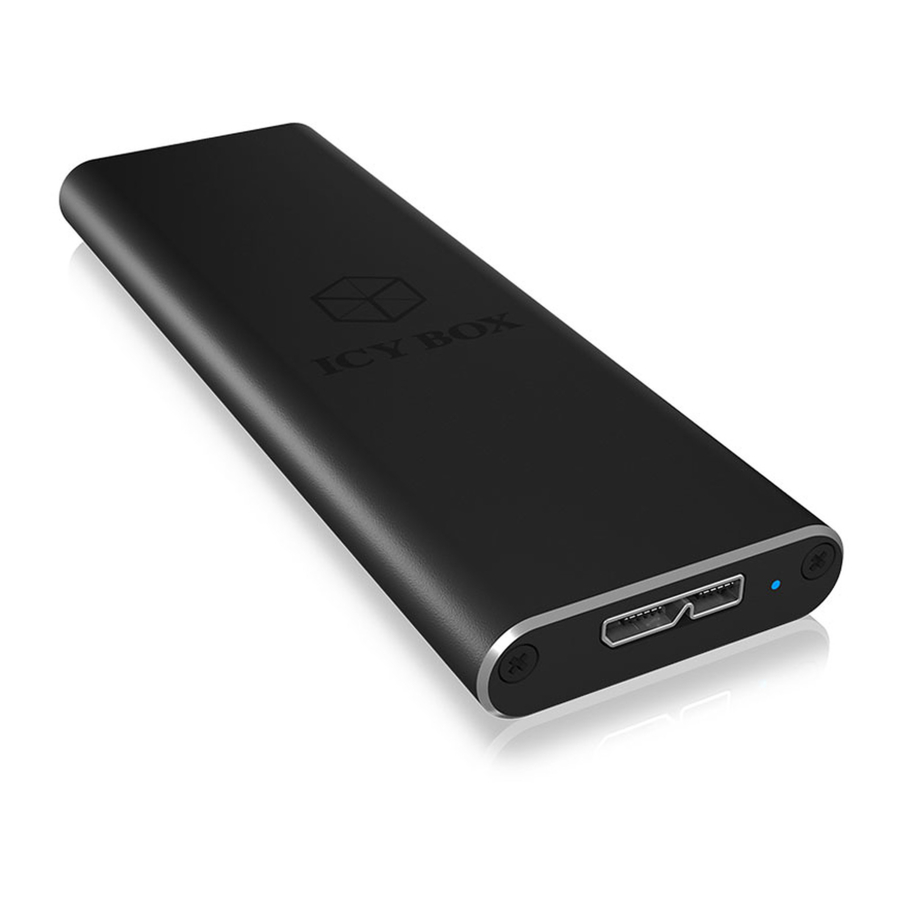

Icy Box IB-183M2 - External USB 3.0 Enclosure For M.2 SATA SSD Manual

Package contents

1x IB-183M2, 1x USB 3.0 data cable, 1x screw set, 1x manual

Key Features

External enclosure for M.2 SATA SSD
USB 3.0 up to 5 Gbit/s
For M.2 SATA SSD with B-Key or B+M-Key, 22 x 30/42/60/80 mm
Aluminum case
Plug & Play, Hot Swap
Windows, Mac 10.7.4 or later version compatible

SSD Installation

Application

The external SSD can be connected to or disconnected from the computer via USB cable without shutting down the computer.
Please await the end of read/write operations before disconnecting the SSD to avoid data loss.
A new SSD must first be initialized, partitioned and formatted by the operation system to be displayed by the system.
If the hard disc isn't recognized instantly by the operating system please check:

if the driver software is installed (USB),
if the SSD is initialized, partitioned and formatted.

Safety information

Please read carefully the following information to prevent injuries, damage to material and device as well as data loss:

Warning levels
Signal words and safety codes indicate the warning level and provide immediate information in terms of the probability of occurrence as well as the type and severity of the consequences if the measures to prevent hazards are not complied with.

Warns of a directly hazardous situation causing death or serious injury.

Warns of a potentially hazardous situation that may cause death or serious injury.

Warns of a potentially hazardous situation that may cause minor injury.

Warns of a potential situation that may cause material or environmental damage and disrupt operative processes.

Risk of electrical shock

Contact with parts conducting electricity
Risk of death by electrical shock

Read the operating instructions prior to use
Make sure the device has been de-energised prior to working on it
Do not remove contact protection panels
Avoid contact with conducting parts
Do not bring plug contacts in contact with pointed and metal objects
Use in intended environments only
Operate the device using a power unit meeting the specifications of the type plate only!
Keep the device/power unit away from humidity, liquid, vapour and dust
Do not modify the device
Do not connect the device during thunderstorms
Approach specialist retailers if you require repairs

Hazards during assembly (if intended)

Sharp components
Potential injuries to fingers or hands during assembly (if intended)

Read the operating instructions prior to assembly
Avoid coming into contact with sharp edges or pointed components
Do not force components together
Use suitable tools
Use potentially enclosed accessories and tools only

Hazards caused by a development of heat

Insufficient device/power unit ventilation
Overheating and failure of the device/power unit

Prevent externally heating up components and ensure an exchange of air
Do not cover the fan outlet and passive cooling elements
Avoid direct sunlight on the device/power unit
Guarantee sufficient ambient air for the device/power unit
Do not place objects on the device/power unit

Hazards caused by very small parts and packaging

Risk of suffocation
Risk of death by suffocation or swallowing

Keep small parts and accessories away from children
Store/dispose of plastic bags and packaging in an area that is inaccessible to children
Do not hand over small parts and packaging to children

Potential data loss

Data lost during commissioning
Potentially irreversible data loss

Always comply with the information in the operating instructions/quick installation guide
Exclusively use the product once the specifications have been met
Back up data prior to commissioning
Back up data prior to connecting new hardware Use accessories enclosed with the product

Cleaning the device

Harmful cleaning agents
Scratches, discolouration, damage caused by moisture or short circuit in the device

Disconnect the device prior to cleaning
Aggressive or intense cleaning agents and solvents are unsuitable
Make sure there is no residual moisture after cleaning
We recommend cleaning devices using a dry, anti-static cloth

Disposing of the device
Environmental pollution, unsuitable for recycling

Potential environmental pollution caused by components, recycling circle interrupted

This icon on product and packaging indicates that this product must not be disposed of as part of domestic waste. In compliance with the Waste Electrical and Electronic Equipment Directive (WEEE) this electrical device and potentially included batteries must not be disposed of in conventional, domestic waste or recycling waste. If you would like to dispose of this product and potentially included batteries, please return it to the retailer or your local waste disposal and recycling point.
