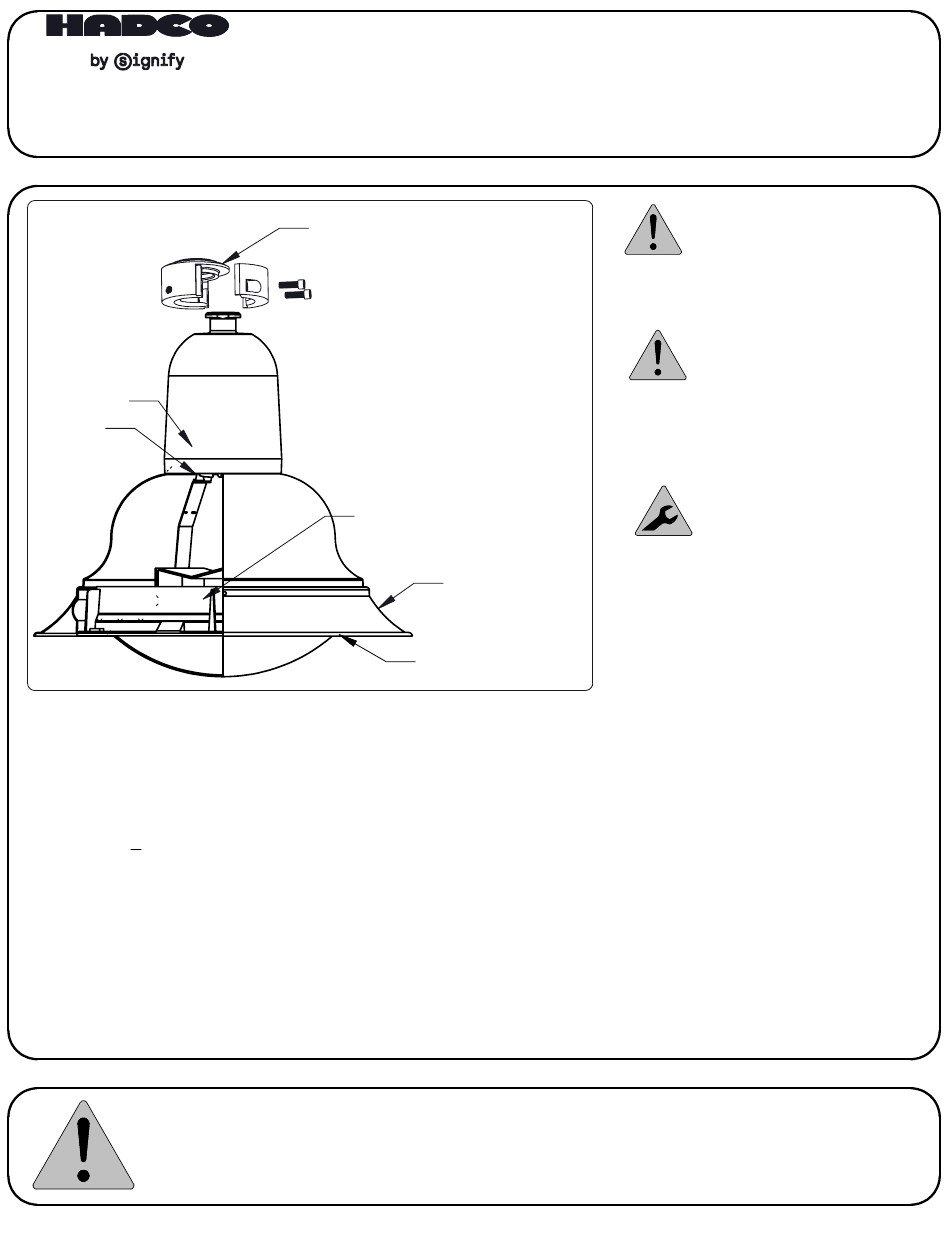

SIGNIFY Hadco Westbrooke CF14 Installation Instructions

Signify North America Corporation
200 Franklin Square Drive
Somerset, NJ 08873
Telephone 855-486-2216
Ballast
Assembly
Plunger

INSTALLATION:

Step 1: Make sure that power is disconnected to the fixture and pole.
Step 2: Position the fixture near the Universal Fixture Adaptor and connect the power supply wires to the
fixture power wires.
Then hang the fixture using the instructions provided with the Universal Fixture Adaptor. Be sure
that the fixture is securely attached before proceding.
For CX fixtures, skip to Step 6.
Step 3: Open the lens door by pressing outward on the lens door retaining clip. Support the lens door
with your free hand to prevent it from swinging open too abruptly.
Step 4: Install the correct lamp based on the lamp label next to the socket. Clean any dirt or body oils
from the lamp to help extend lamp life.
Step 5: Close the lens door by swinging it back into position and pressing firmly upward with both hands.
Make sure that the lens door is completely closed to ensure proper sealing of the fixture.
Step 6: (For Type 2, 3, & 4 optics.) Carefully loosen the 2 capscrews on the Universal fixture adaptor just
enough to allow the fixture to rotate. Orient the fixture as desired, using the "STREET SIDE" label
on the reflector as a guide. Re-tighten the 2 capscrews on the Universal Fixture Adaptor to lock
the fixture into that position.
Step 7: Connect power to the fixture and test the fixture for proper operation
This fixture is intended for installation in accordance with the National Electrical Code and local code
specifications. Failure to adhere to these codes and instructions may result in serious injury and/or damage
to the ballast and void the warranty. These instructions do not purport to cover all details or variations in
equipment, nor to provide for every possible contingency related to installation, operation, maintenance,
or mounting situation. Should specific problems occur that are not addressed by these instructions, contact
your Sales Representative for assistance. Retain these instructions for future reference.
32001413, revision F
Signify Canada Ltd.
281 Hillmount Road,
Markham, ON, Canada L6C 2S3
Telephone 800-668-9008
Universal Fixture Adaptor
(Sold Separately)
Reflector Assembly
Lens Door
INSTALLATION INSTRUCTIONS:
CF14, CF15, CXF14, CXF15
WESTBROOKE
All wiring must done by a
qualified electrician.
(CF Series
Shown)
Make sure that power is
disconnected before
performing installation and/or
maintenance on this fixture.
Optional Brim
ATTENTION:
WARNING:
TOOLS:
5/16" Allen Wrench
- to assemble the Universal
Fixture Adaptor
page 1 of 2
